WAL066293
€12,34
Zu Produktinformationen springen
Auf Lager
WAL066293

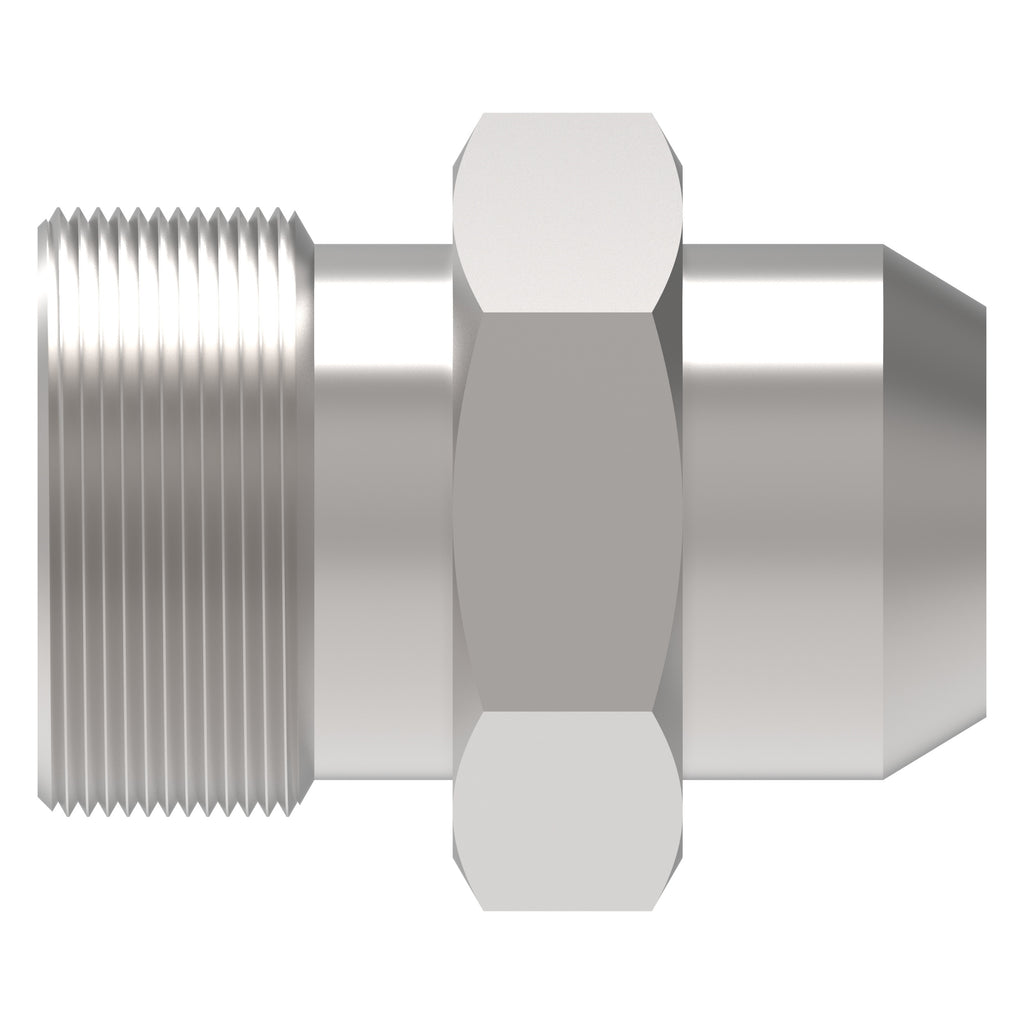

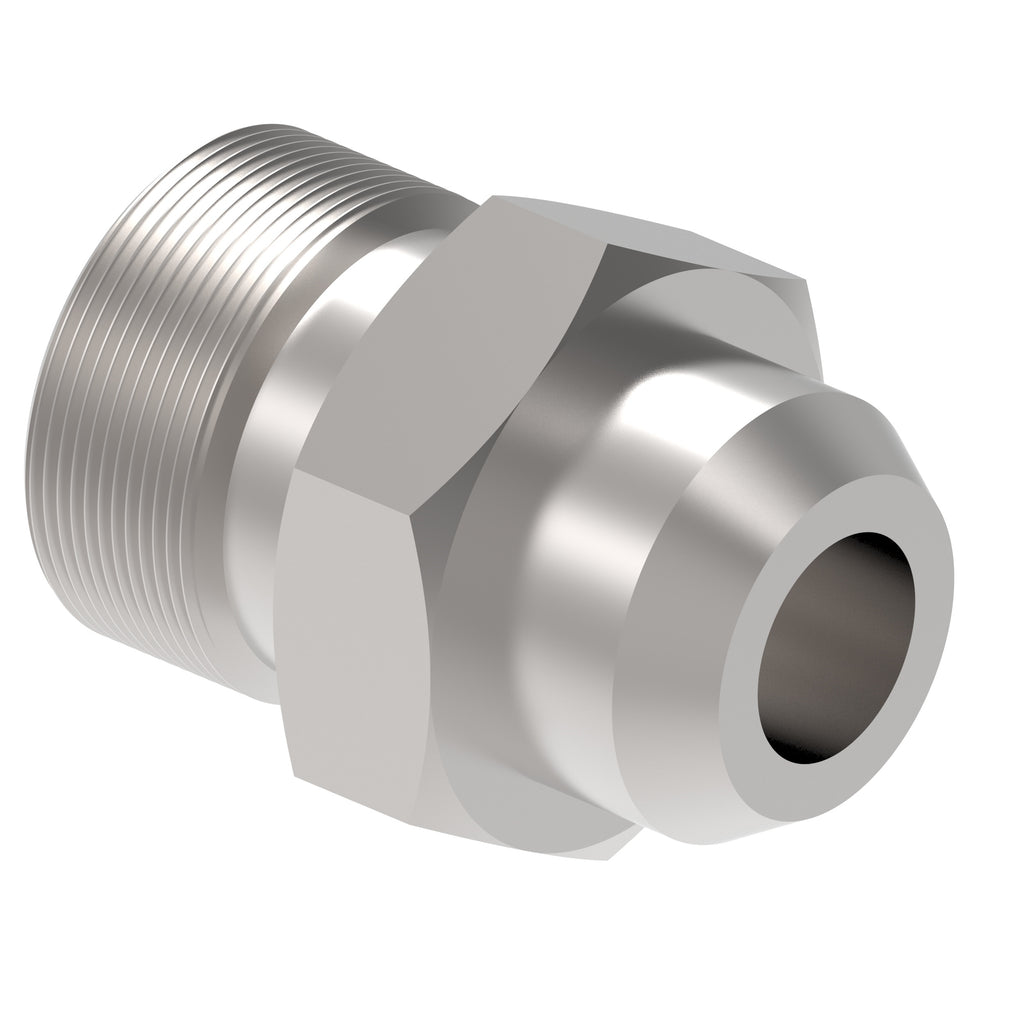

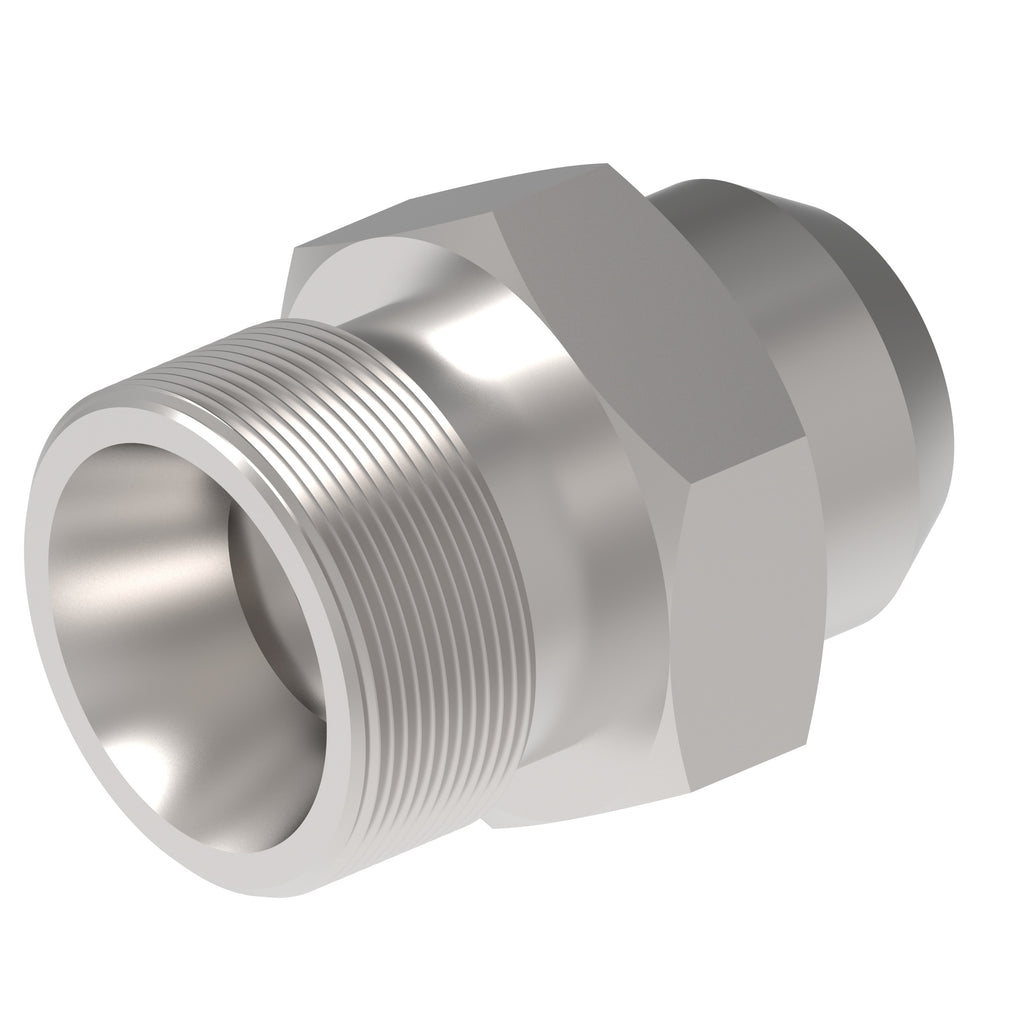

TUBE FTG, ASS 22 L-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL066293
€14,68
Technische Daten
| Legacy part number | WAL066293 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Weldable connector |
| Model Code 1 | ASS 22 L-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M30x2 |
| Angle shape | Straight |
| End size 1 | 22L |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 32 |
| Working temperature max C | 400 |
| Working temperature min C | -60 |
| Working pressure bar | 250 |
| Complete connector | No |
| Product serial name | ASS … |
| Tube outside diameter 1 MM | 22 |
| Tube outside diameter 2 MM | 22 |
| Finish plating | Phosphate coating |
Weitere Produktdaten
- Herkunftsland: Croatia
- Zolltarifnummer: 73072910
- Danfoss Produktseite: Produkt bei Danfoss
