WAL373501
€3,95
Zu Produktinformationen springen
Auf Lager

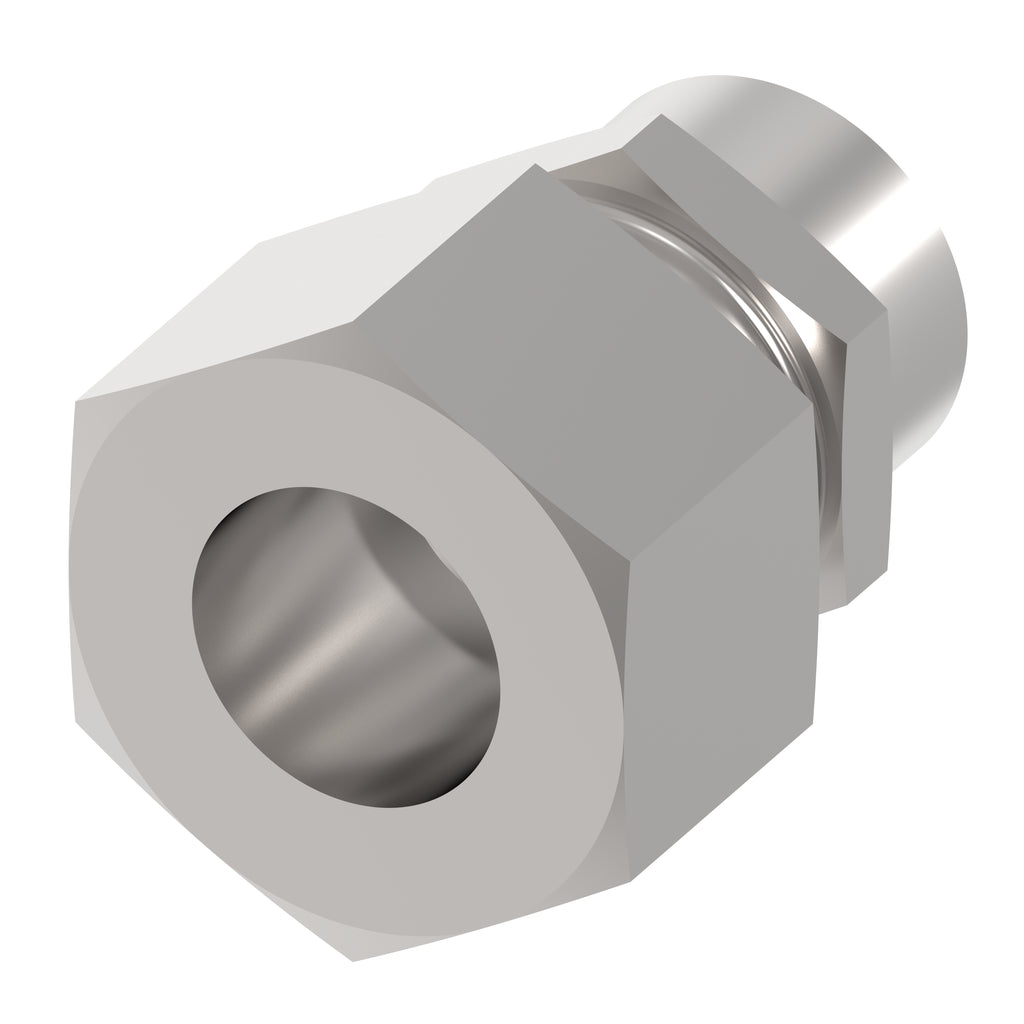

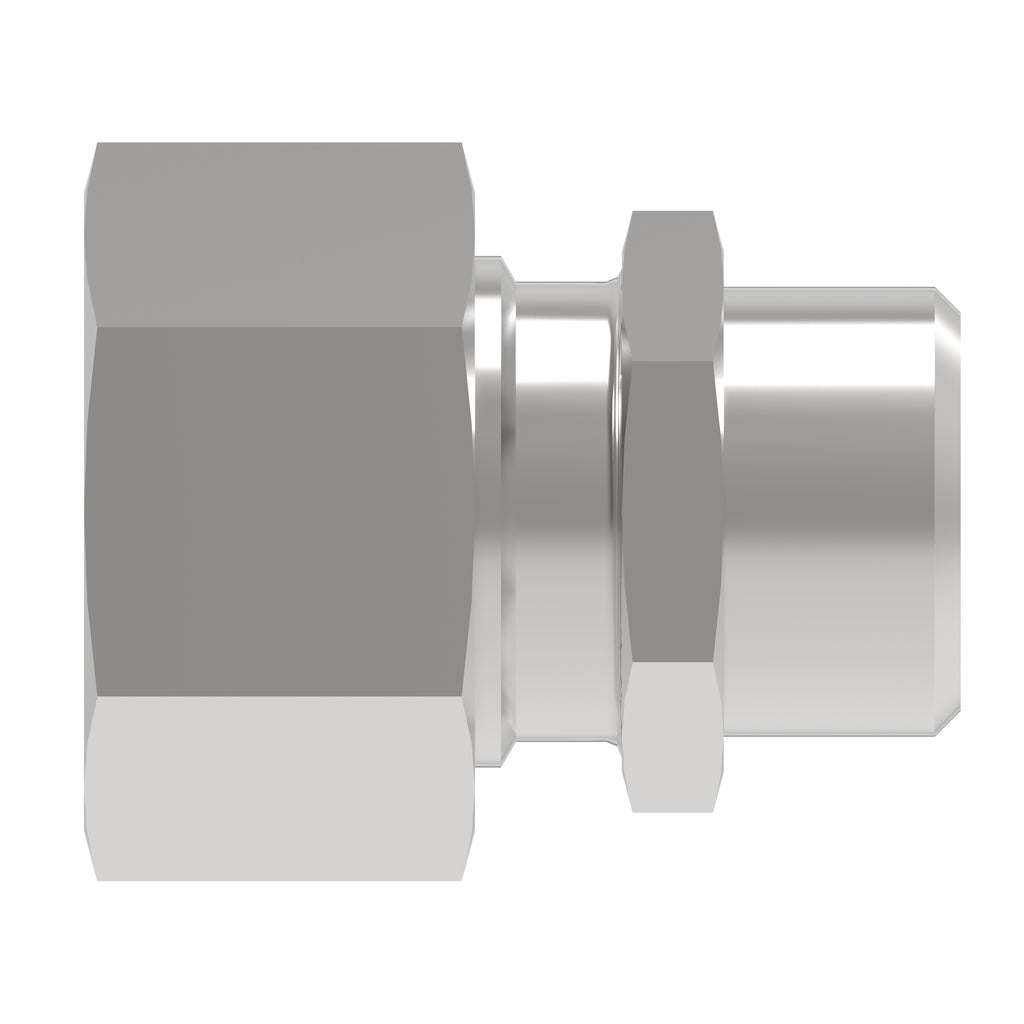

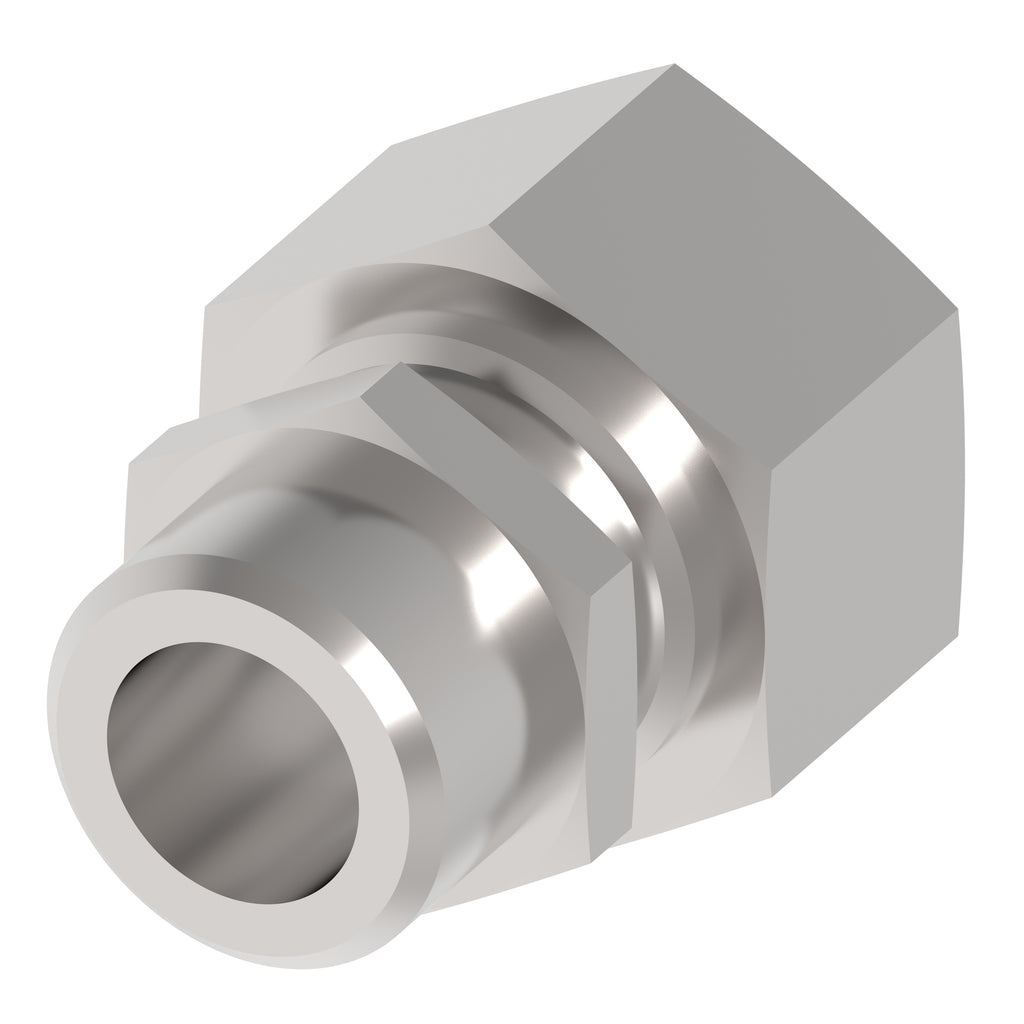

WAL373501
TUBE FTG, P-ASV 6 S PHR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL373501
€4,70
Technische Daten
| Legacy part number | WAL373501 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Weldable connector |
| Model Code 1 | P-ASV 6 S PHR |
| Product material | Carbon steel |
| Thread size 1 | M14x1.5 |
| Angle shape | Straight |
| End size 1 | 6S |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 14 |
| Hex size 2 MM | 17 |
| Working pressure bar | 800 |
| Complete connector | Yes |
| Product serial name | P-ASV … |
| Tube outside diameter 1 MM | 6 |
| Tube outside diameter 2 MM | 6 |
| Finish plating | Phosphate coating |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL373501_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
