WAL374293
€36,45
Zu Produktinformationen springen
Auf Lager
WAL374293

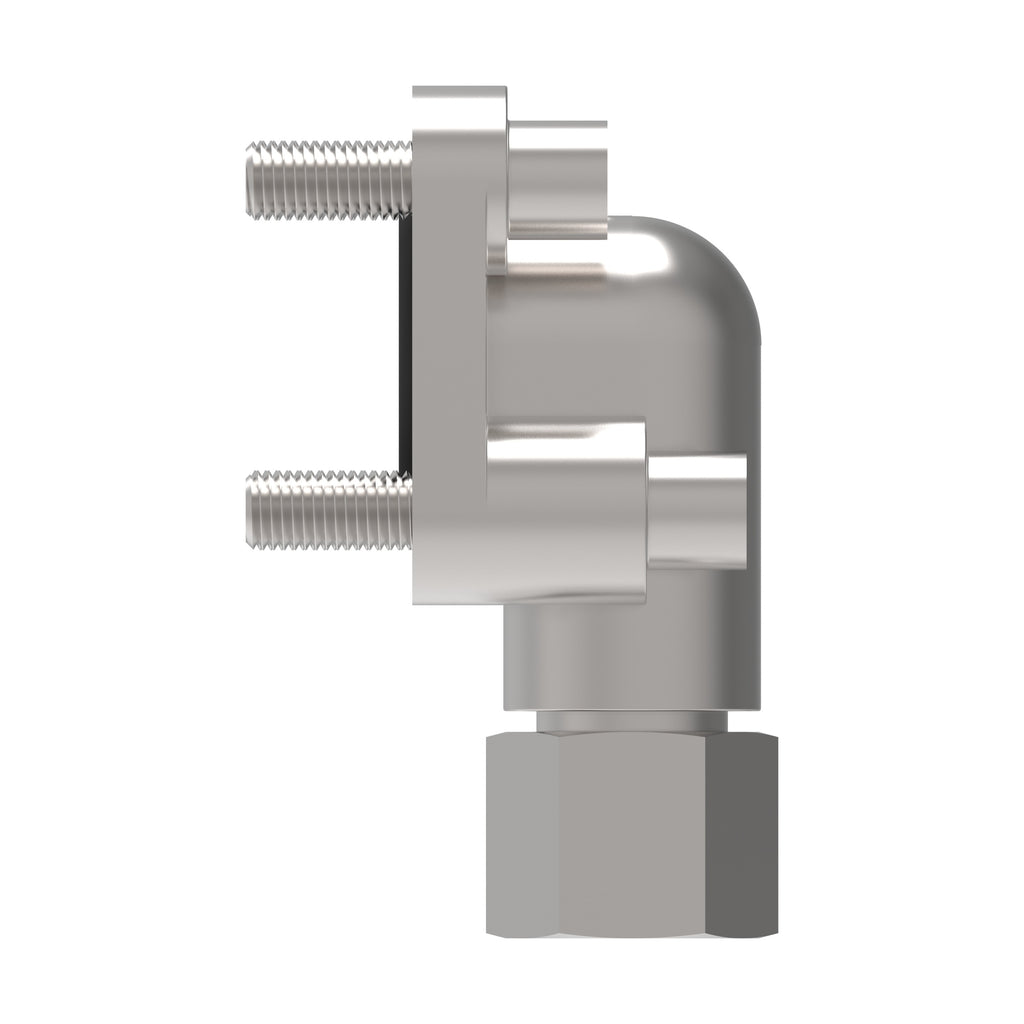

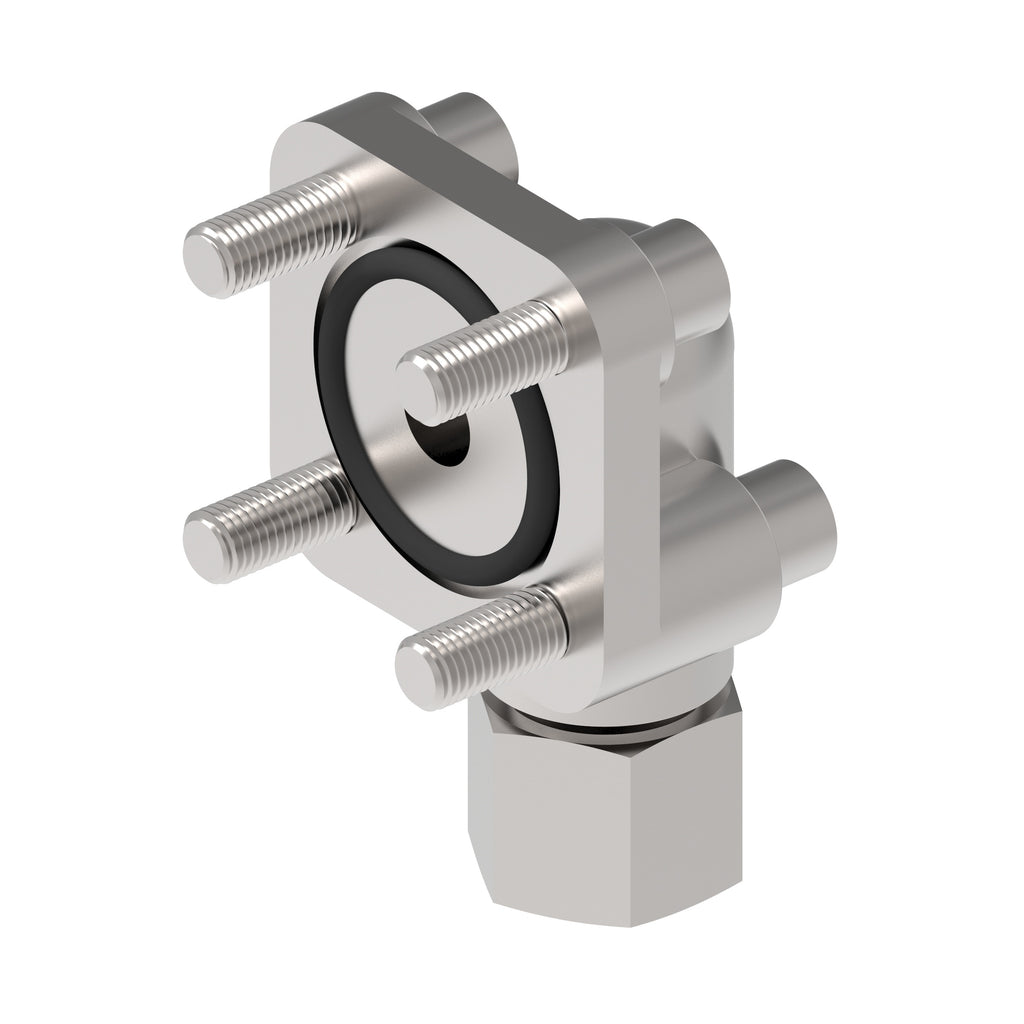

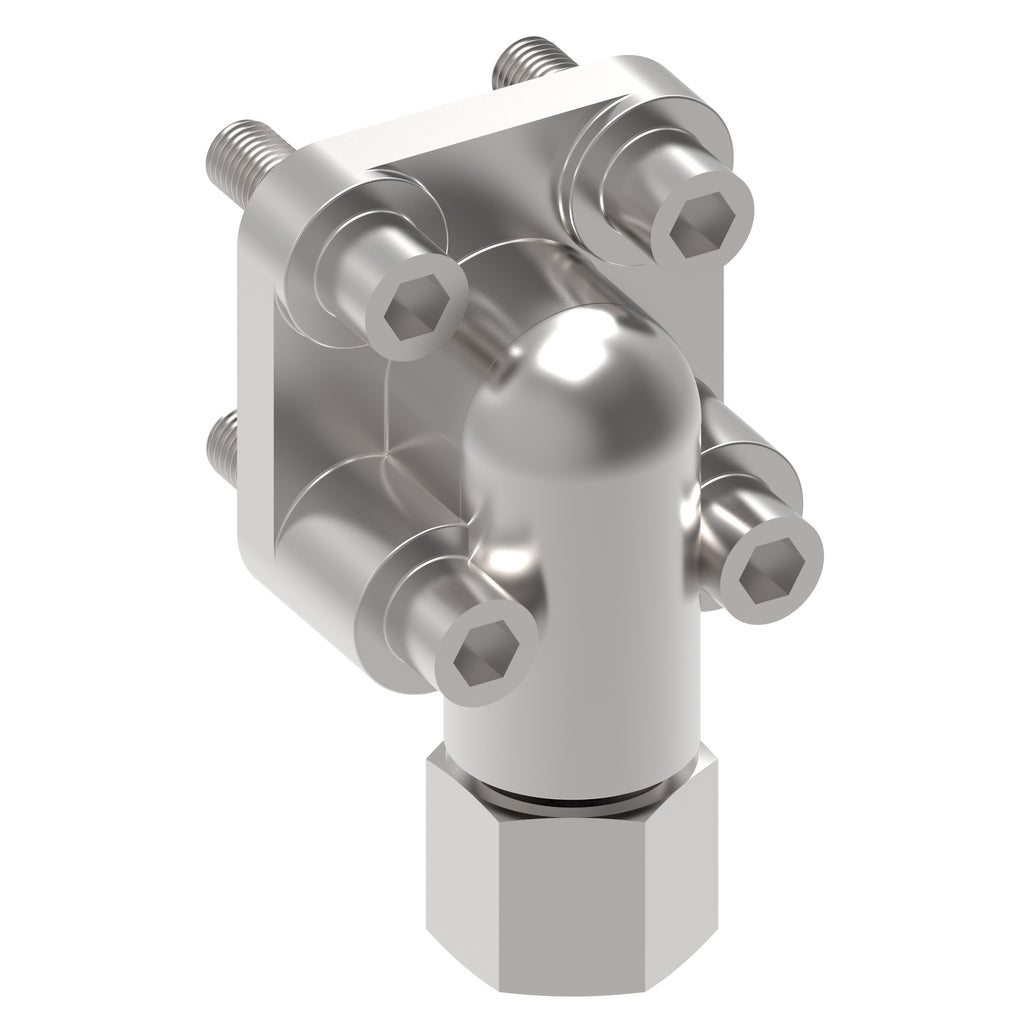

TUBE FTG, P-WFV 20 S-35 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL374293
€43,38
Technische Daten
| Legacy part number | WAL374293 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Flange fitting |
| Model Code 1 | P-WFV 20 S-35 A4GS |
| Product material | Carbon steel |
| Thread size 1 | M30x2 |
| Angle shape | Elbow 90 degree |
| End size 1 | 20S |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 36 |
| Working pressure bar | 315 |
| Complete connector | Yes |
| Product serial name | P-WFV … |
| Tube outside diameter 1 MM | 20 |
| Tube outside diameter 2 MM | 20 |
| Finish plating | Guardian Seal |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079100
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL374293_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
