WAL604351
€5,08
Zu Produktinformationen springen
Auf Lager
WAL604351

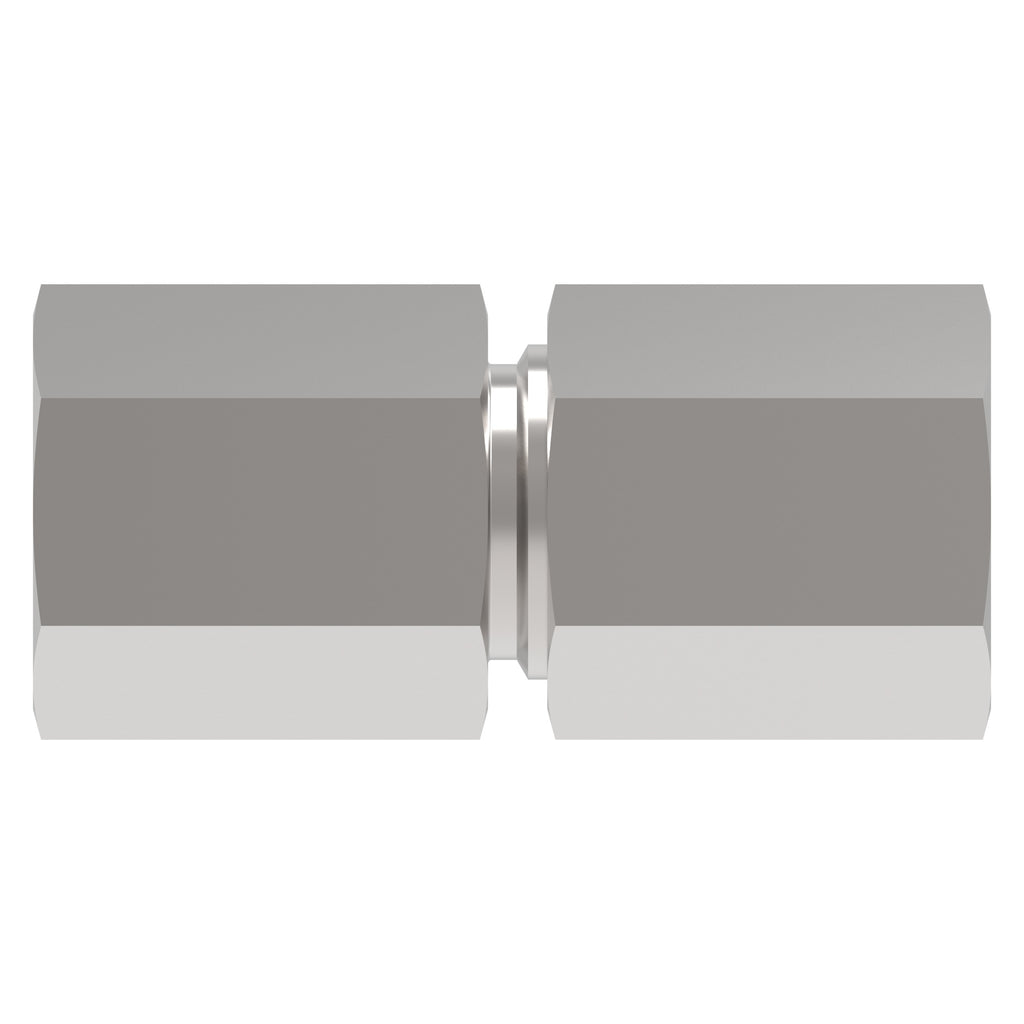

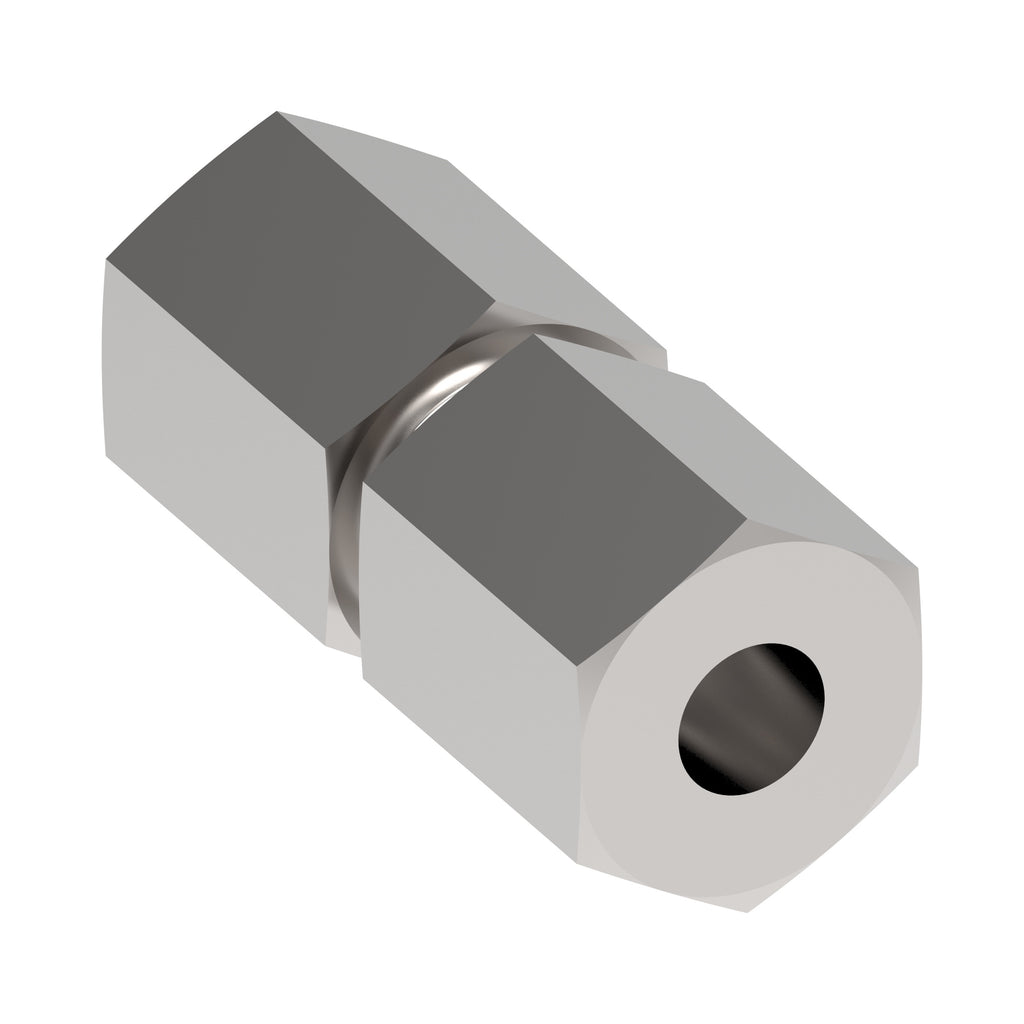

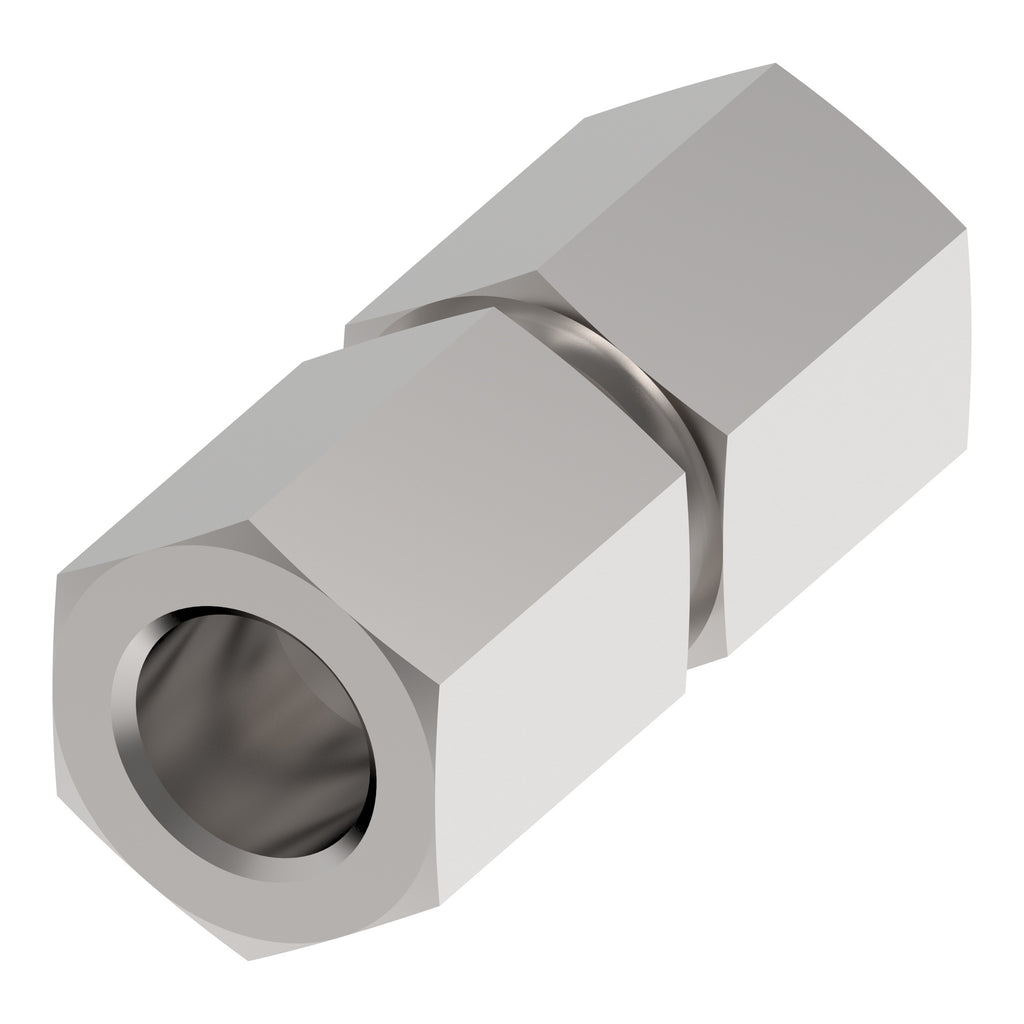

TUBE FTG, P-GAV 8 LM A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL604351
€6,05
Technische Daten
| Legacy part number | WAL604351 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Female fitting / female stud |
| Model Code 1 | P-GAV 8 LM A4GS |
| Product material | Carbon steel |
| Thread size 1 | M14x1.5 |
| Thread size 2 | G 1/4 |
| Angle shape | Straight |
| End size 1 | 8L |
| End type 2 | Female 1179-1 BSPP |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 17 |
| Hex size 2 MM | 17 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 250 |
| Complete connector | Yes |
| Product serial name | P-GAV … M |
| Tube outside diameter 1 MM | 8 |
| Tube outside diameter 2 MM | 8 |
| Finish plating | Guardian Seal |
| Product height in | 0.669 |
| Product width in | 0.669 |
| Product width mm | 17 |
| Product height mm | 17 |
| Product length mm | 31 |
| Product length in | 1.221 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL604351_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
