WAL608422
€29,16
Zu Produktinformationen springen
Auf Lager
WAL608422

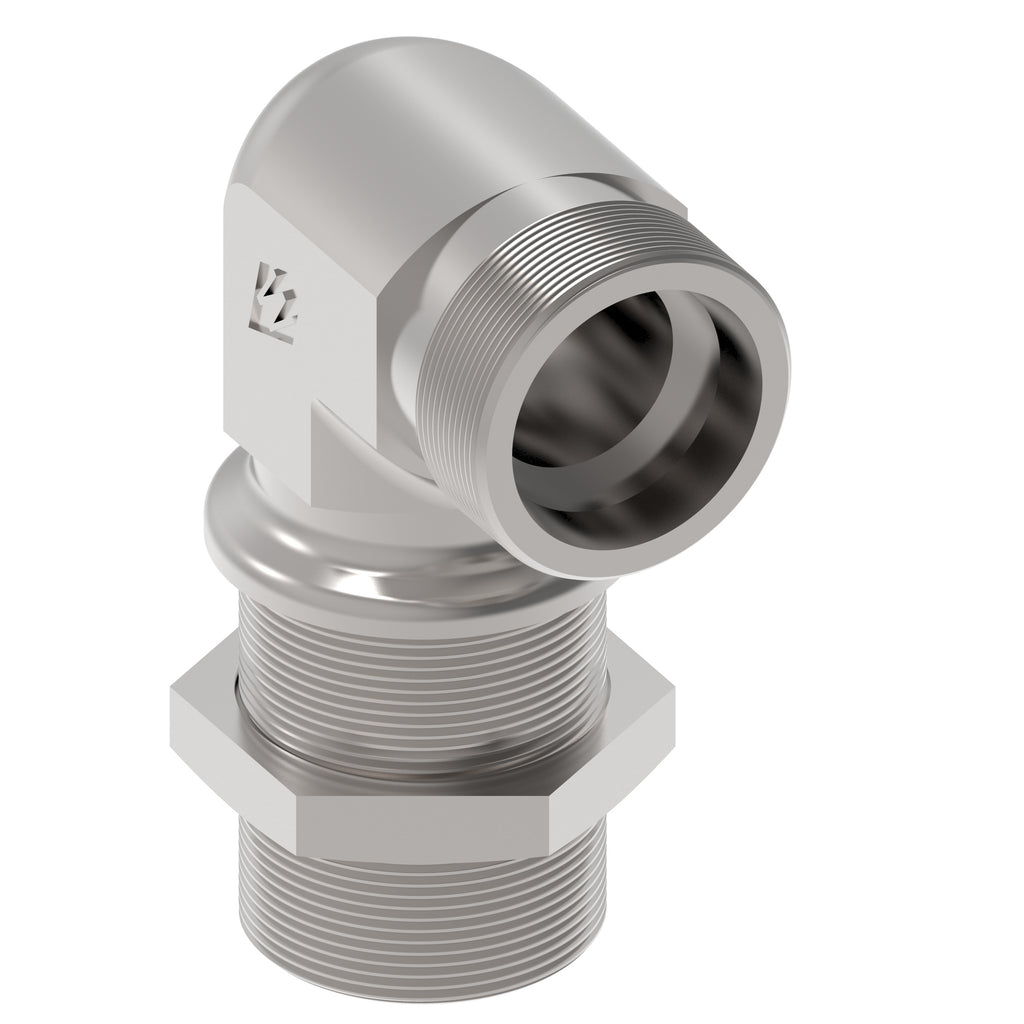

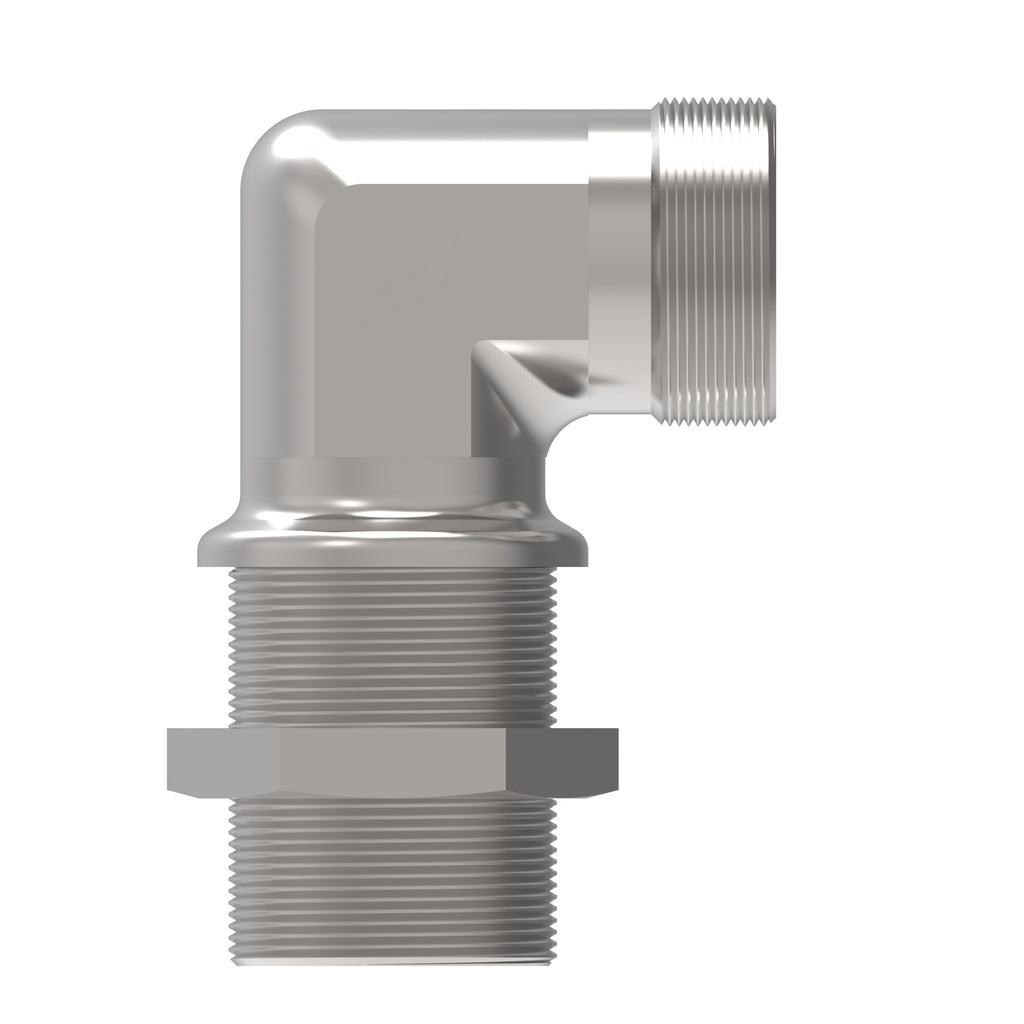

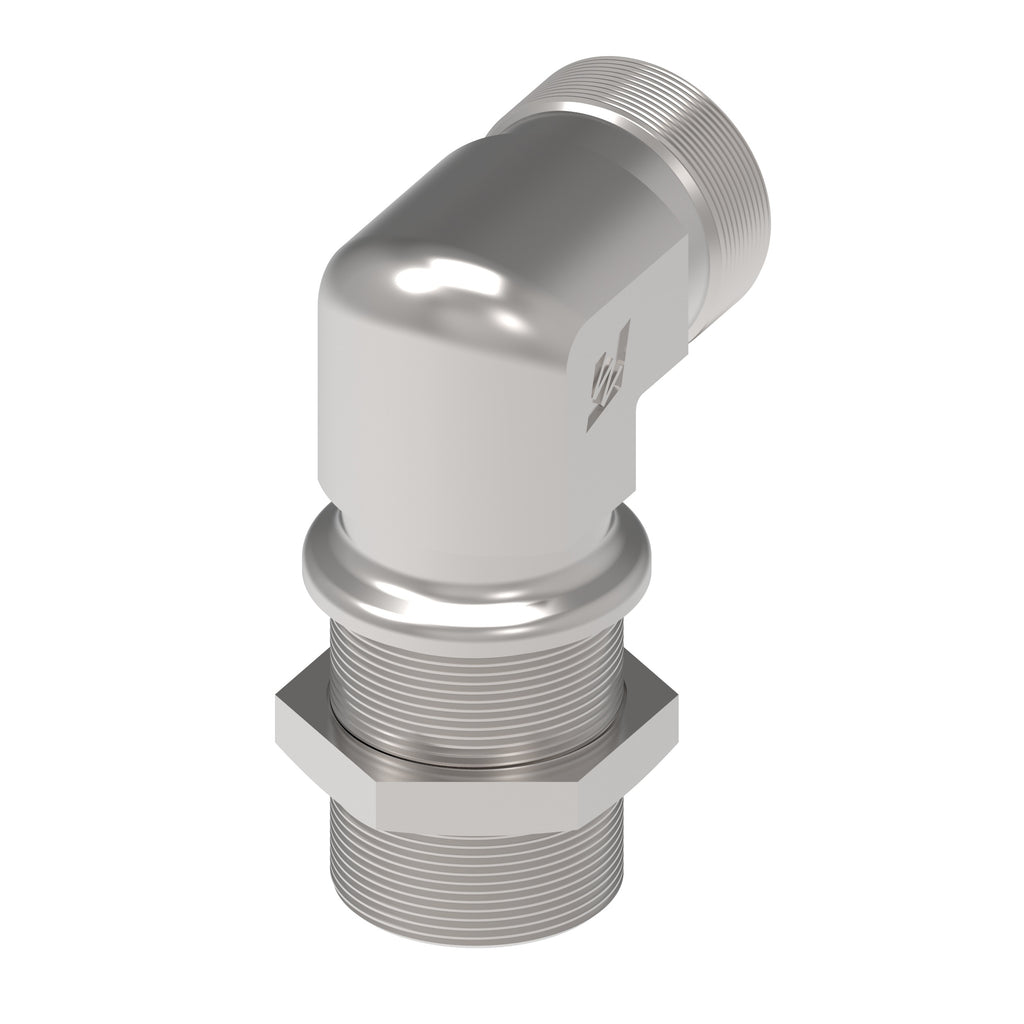

TUBE FTG, WSS 10 L-MKM-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL608422
€34,70
Technische Daten
| Legacy part number | WAL608422 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | WSS 10 L-M.SECHSK.M-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | M16x1.5 |
| Angle shape | Elbow 90 degree |
| End size 1 | 10L |
| End size 2 | 10L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 14 |
| Hex size 2 MM | 22 |
| Working temperature min C | -40 |
| Working pressure bar | 500 |
| Complete connector | No |
| Product serial name | WSS … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 0.866 |
| Product width in | 0.866 |
| Product width mm | 22 |
| Product height mm | 22 |
| Product length mm | 60 |
| Product length in | 2.362 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
