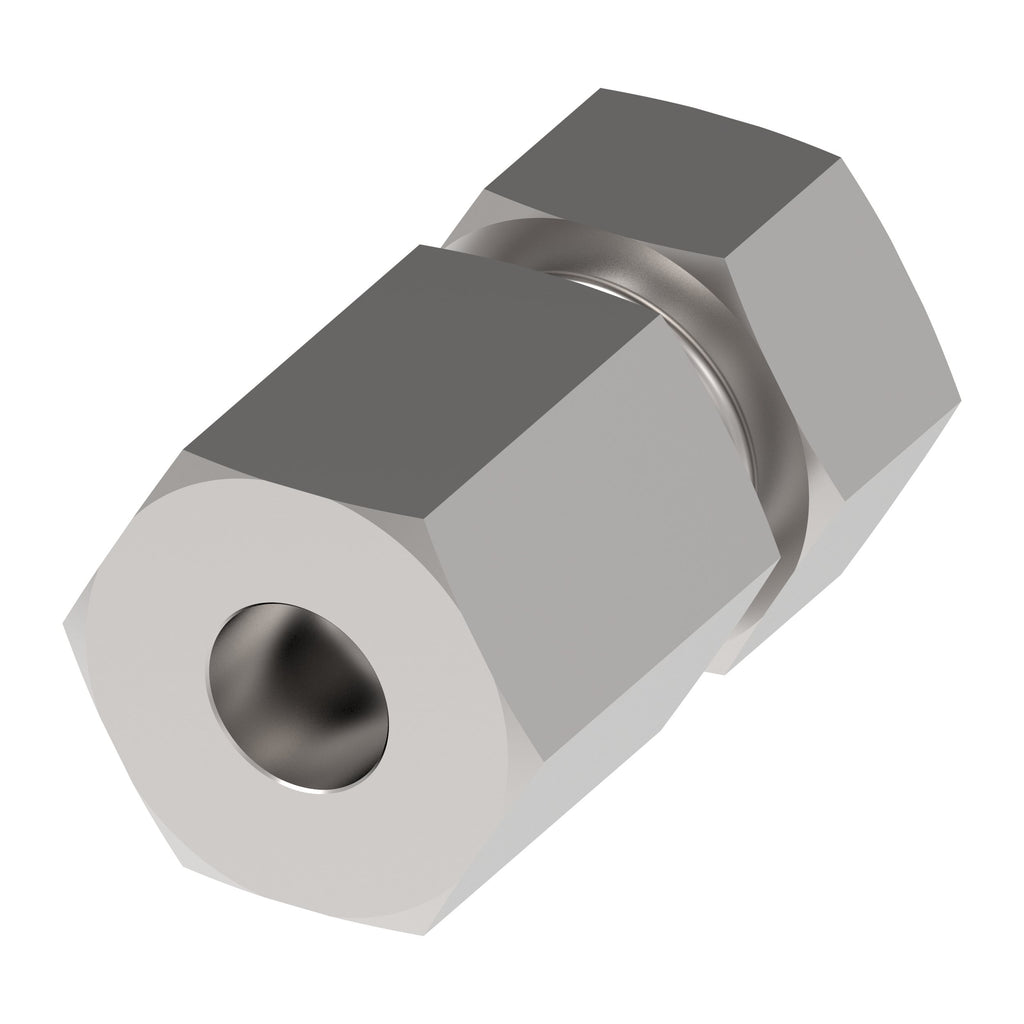

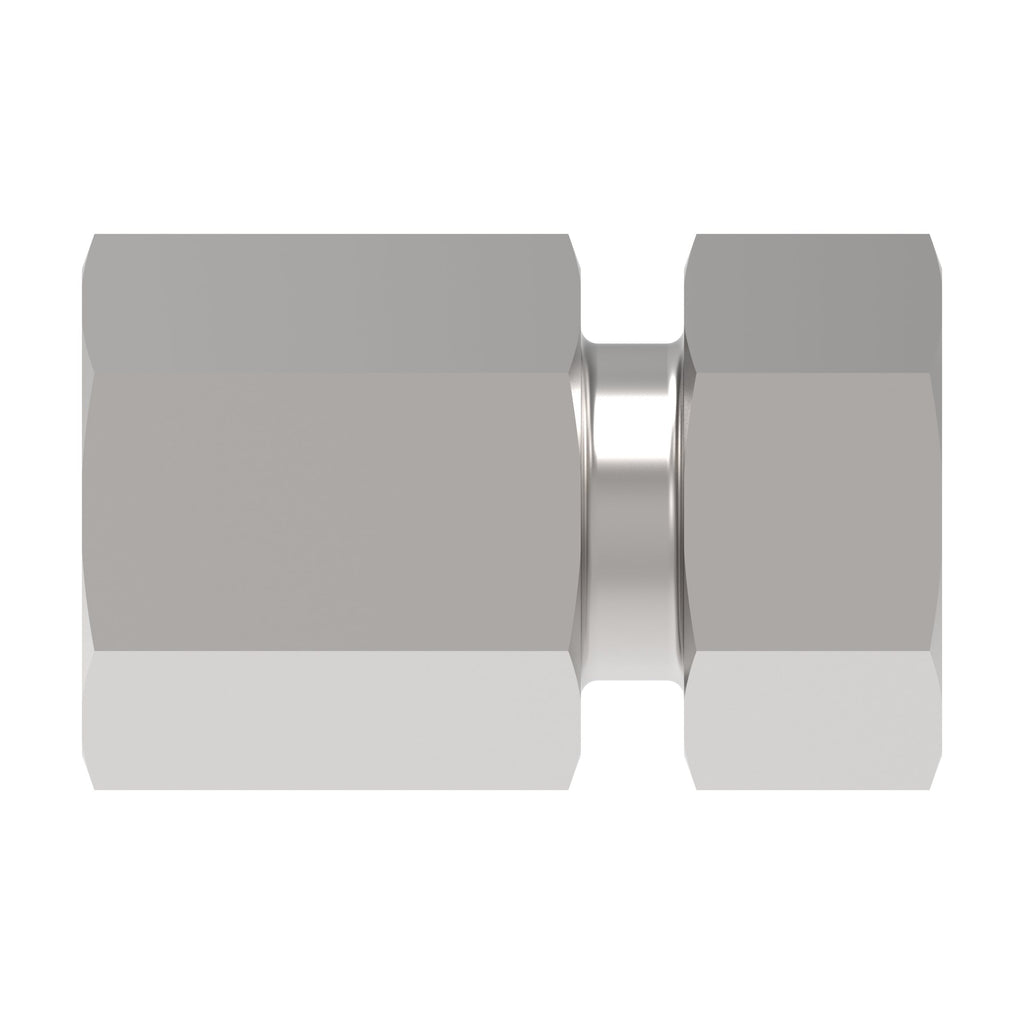

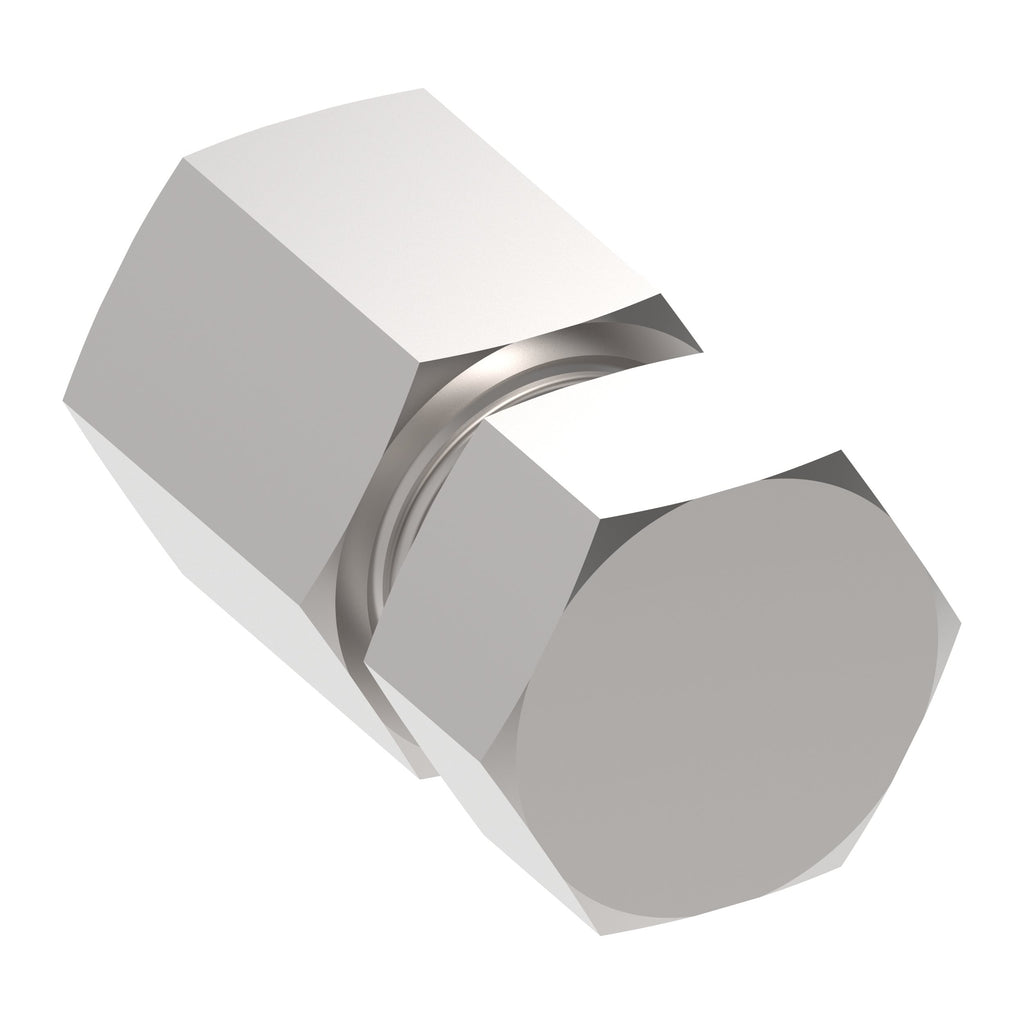

Danfoss WAL608953 Produktbild

WAL608953

€2,94
Zu Produktinformationen springen
Danfoss WAL608953 Produktbild
1/3
  • Danfoss WAL608953 Produktbild
  • Danfoss WAL608953 Produktbild
  • Danfoss WAL608953 Produktbild
WAL608953

WAL608953

PLUG, P-VSK 10 S A4GS

Lieferzeit: ca. 2 Wochen

Danfoss Artikelnummer: WAL608953

€3,50
Auf Lager

Technische Daten

Legacy part number WAL608953
Sub brand Waltech
Brand Danfoss
Item type Blanking end
Model Code 1 P-VSK 10 S A4GS
Product material Carbon steel
Thread size 1 M18x1.5
Thread size 2 M18x1.5
Angle shape Straight
End size 1 10S
End size 2 10S
End type 2 24 deg. tube port heavy duty
End type 1 24 deg. tube port heavy duty
Hex size 1 IN 0.748
Working temperature max C 120
Working temperature min C -40
Working pressure bar 800
Complete connector Yes
Product serial name P-VSK …
Tube outside diameter 1 IN 0.394
Tube outside diameter 2 IN 0.394
Finish plating Guardian Seal
Product height in 0.748
Product width in 0.748
Product width mm 18.999
Product height mm 18.999
Product length mm 19.99
Product length in 0.787
