WAL608954
€3,12
Zu Produktinformationen springen
Auf Lager
WAL608954

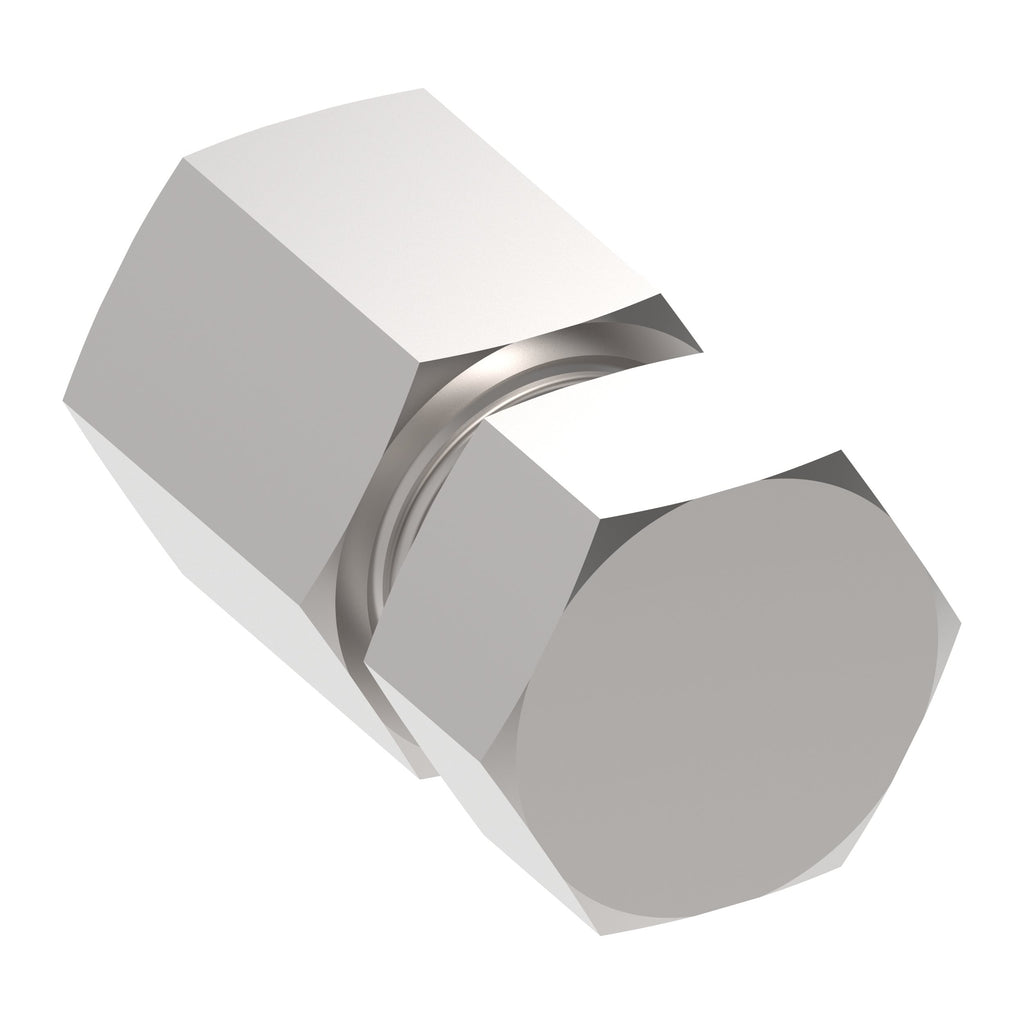

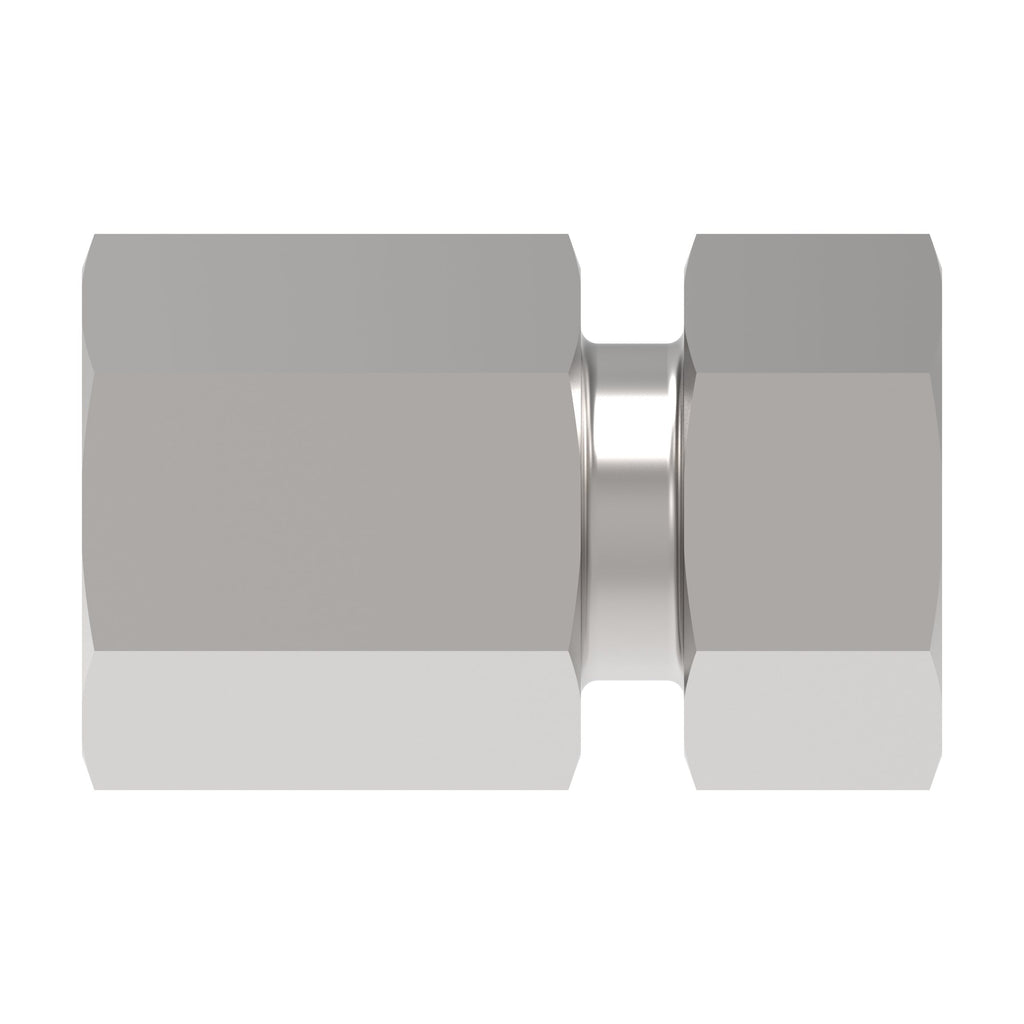

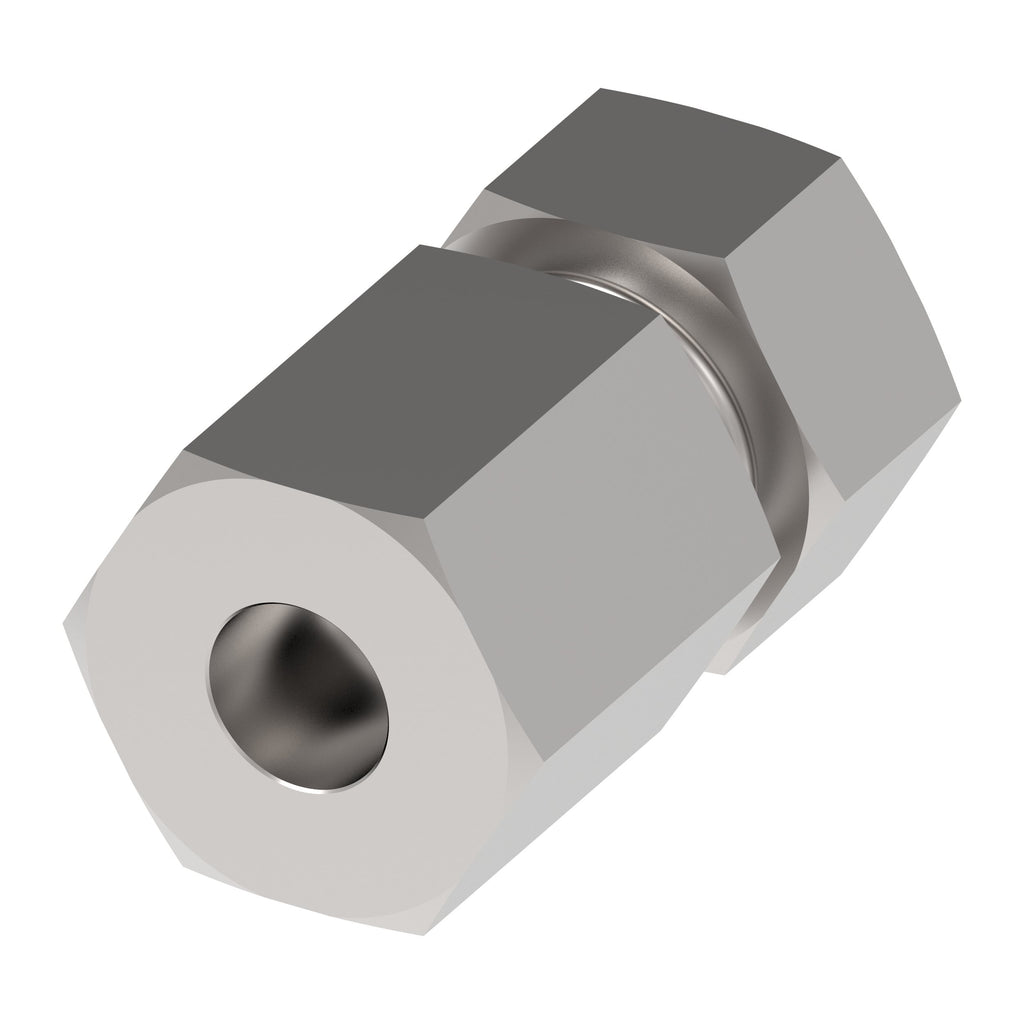

PLUG, P-VSK 12 S A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL608954
€3,71
Technische Daten
| Legacy part number | WAL608954 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Blanking end |
| Model Code 1 | P-VSK 12 S A4GS |
| Product material | Carbon steel |
| Thread size 1 | M20x1.5 |
| Thread size 2 | M20x1.5 |
| Angle shape | Straight |
| End size 1 | 12S |
| End size 2 | 12S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 IN | 0.866 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 630 |
| Complete connector | Yes |
| Product serial name | P-VSK … |
| Tube outside diameter 1 IN | 0.472 |
| Tube outside diameter 2 IN | 0.472 |
| Finish plating | Guardian Seal |
| Product height in | 0.866 |
| Product width in | 0.866 |
| Product width mm | 21.996 |
| Product height mm | 21.996 |
| Product length mm | 21.006 |
| Product length in | 0.827 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
