WAL609707
€3,26
Zu Produktinformationen springen
Auf Lager
WAL609707

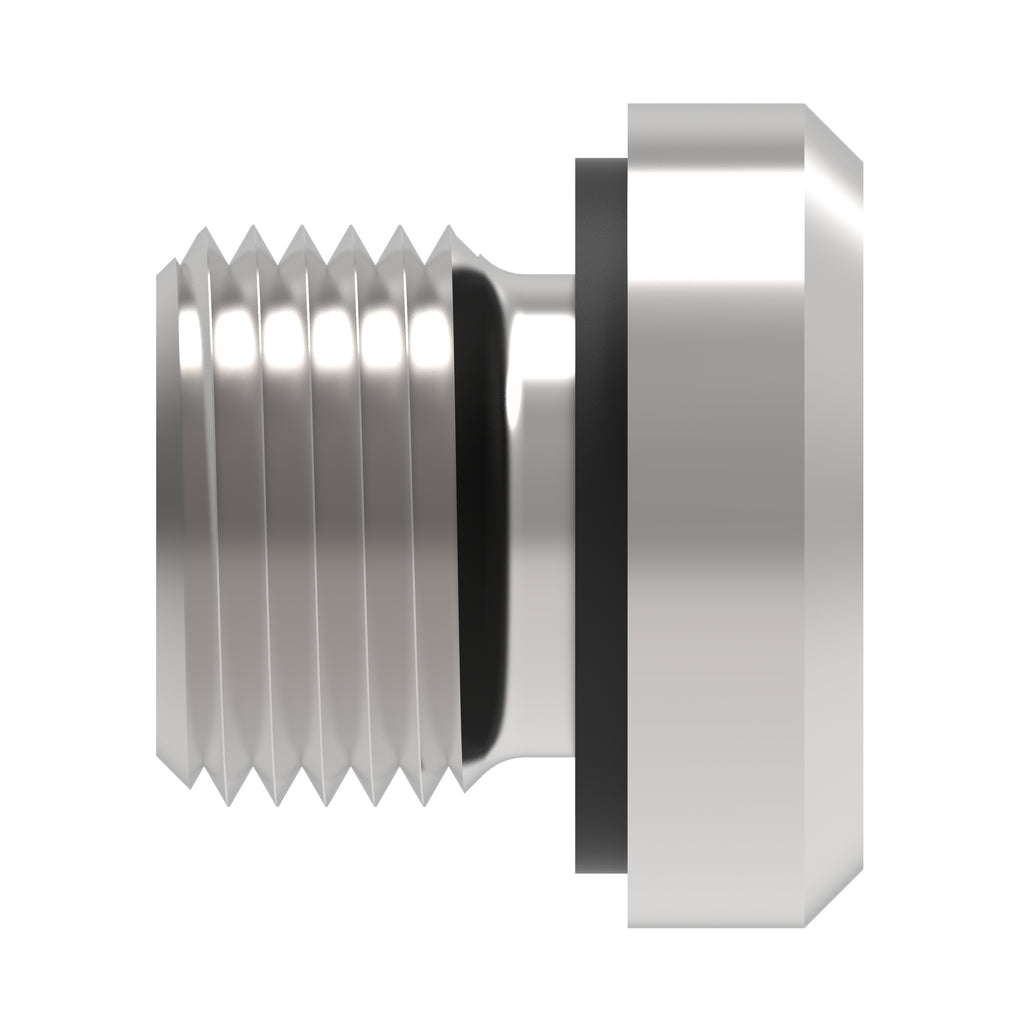

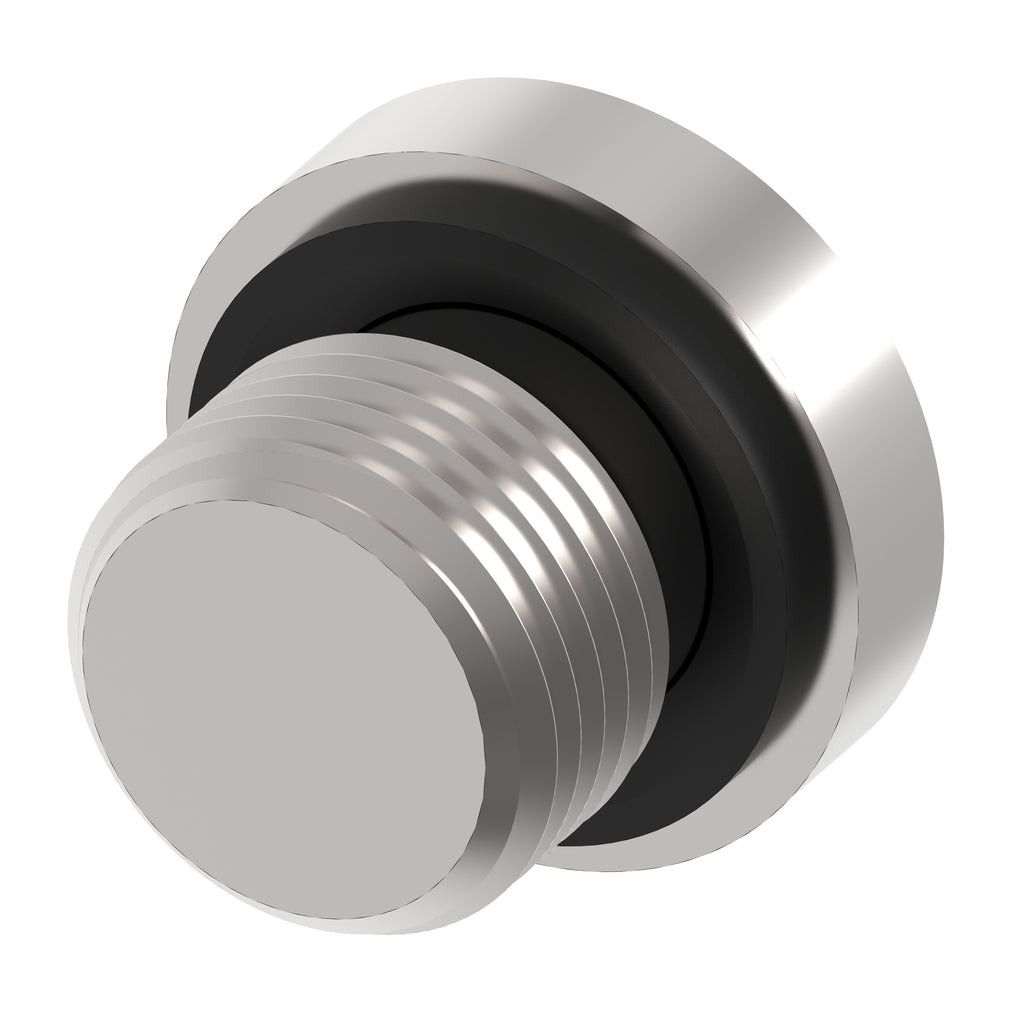

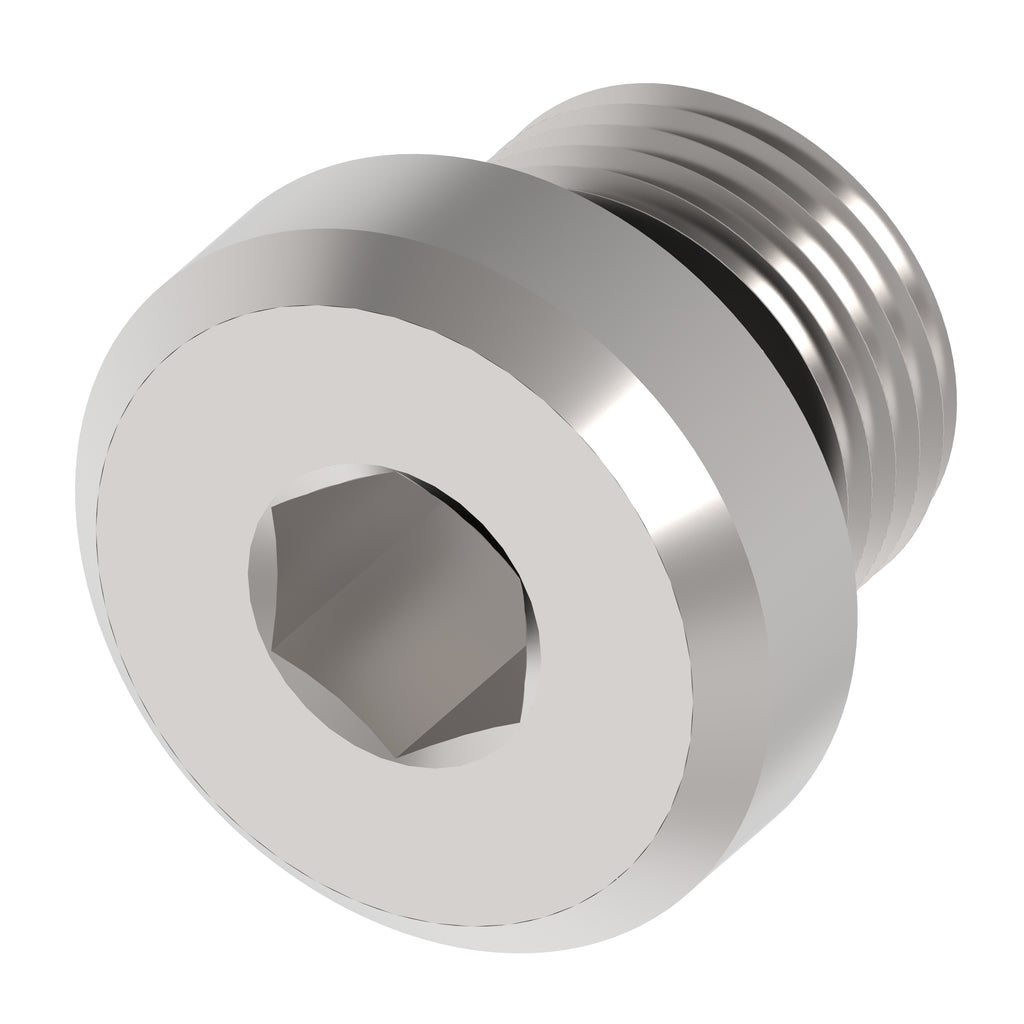

PLUG, VS-M26x1,5-WD VI A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL609707
€3,88
Technische Daten
| Legacy part number | WAL609707 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Blanking end |
| Model Code 1 | VS-M26X1,5-WD VI A4GS |
| Product material | Carbon steel |
| Thread size 1 | M26x1.5 |
| Angle shape | Straight |
| Hex size 1 MM | 12 |
| Working temperature min C | -25 |
| Working pressure bar | 400 |
| Complete connector | No |
| Product serial name | VS-M … WD |
| Seal material | Fluorocarbon (FKM) |
| Finish plating | Guardian Seal |
| Product height in | 1.26 |
| Product width in | 1.26 |
| Product width mm | 32 |
| Product height mm | 32 |
| Product length mm | 21 |
| Product length in | 0.827 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL609707_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
