WAL609775
€25,77
Zu Produktinformationen springen
2 übrig
WAL609775

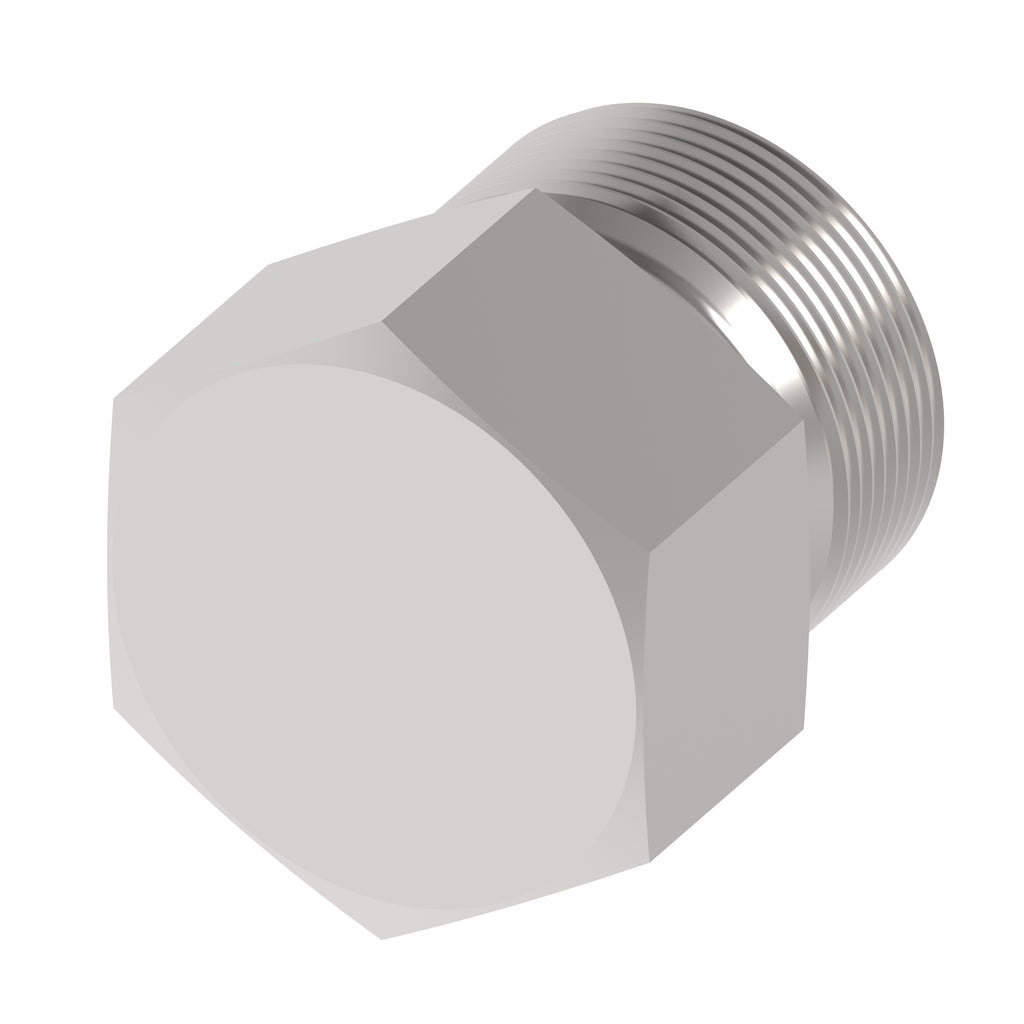

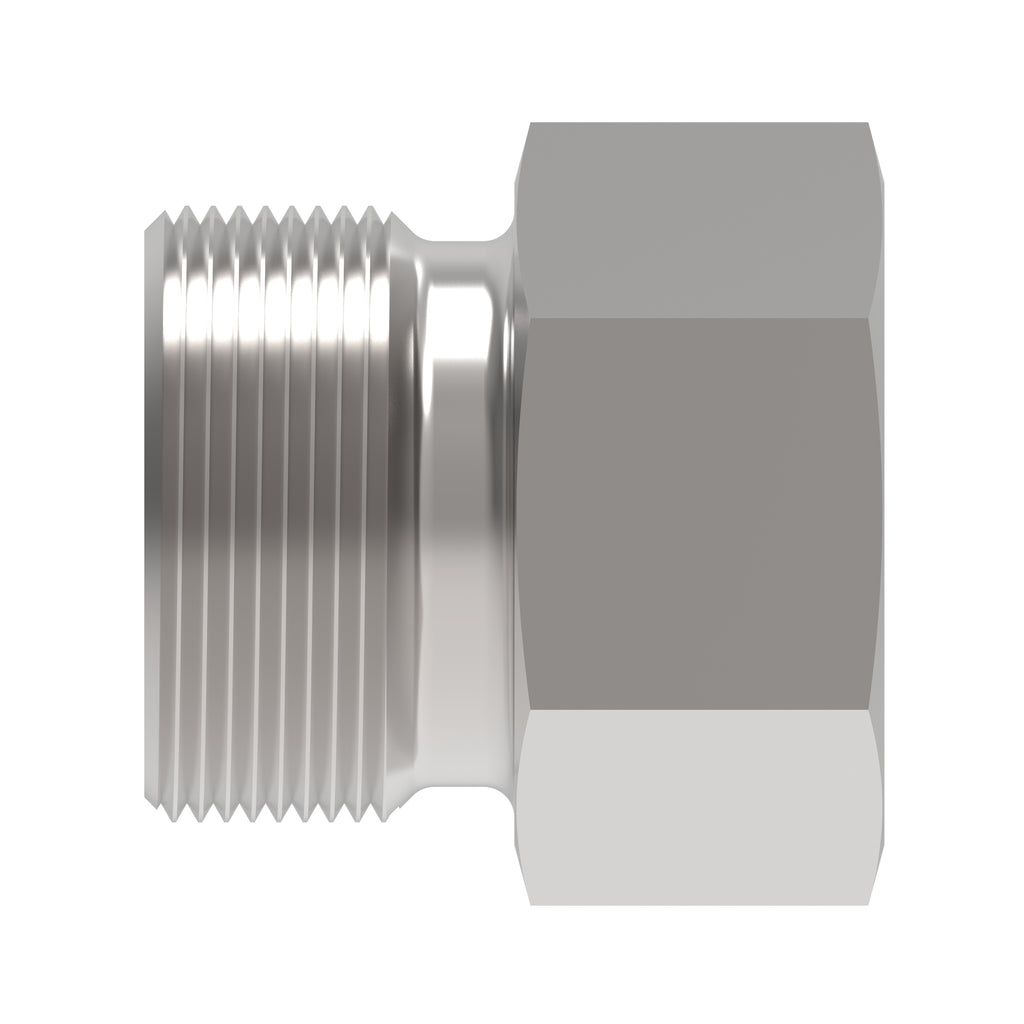

PLUG, VSK 38 S A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL609775
€30,67
Technische Daten
| Legacy part number | WAL609775 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Blanking end |
| Model Code 1 | VSK 38 S A4GS |
| Product material | Carbon steel |
| Angle shape | Straight |
| End size 1 | 38S |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 55 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 420 |
| Complete connector | No |
| Product serial name | VSK … |
| Tube outside diameter 1 MM | 38 |
| Tube outside diameter 2 MM | 38 |
| Finish plating | Guardian Seal |
| Product height in | 2.165 |
| Product width in | 2.165 |
| Product width mm | 55 |
| Product height mm | 55 |
| Product length mm | 38 |
| Product length in | 1.496 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL609775_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
