WAL609786
€16,44
Zu Produktinformationen springen
Auf Lager
WAL609786

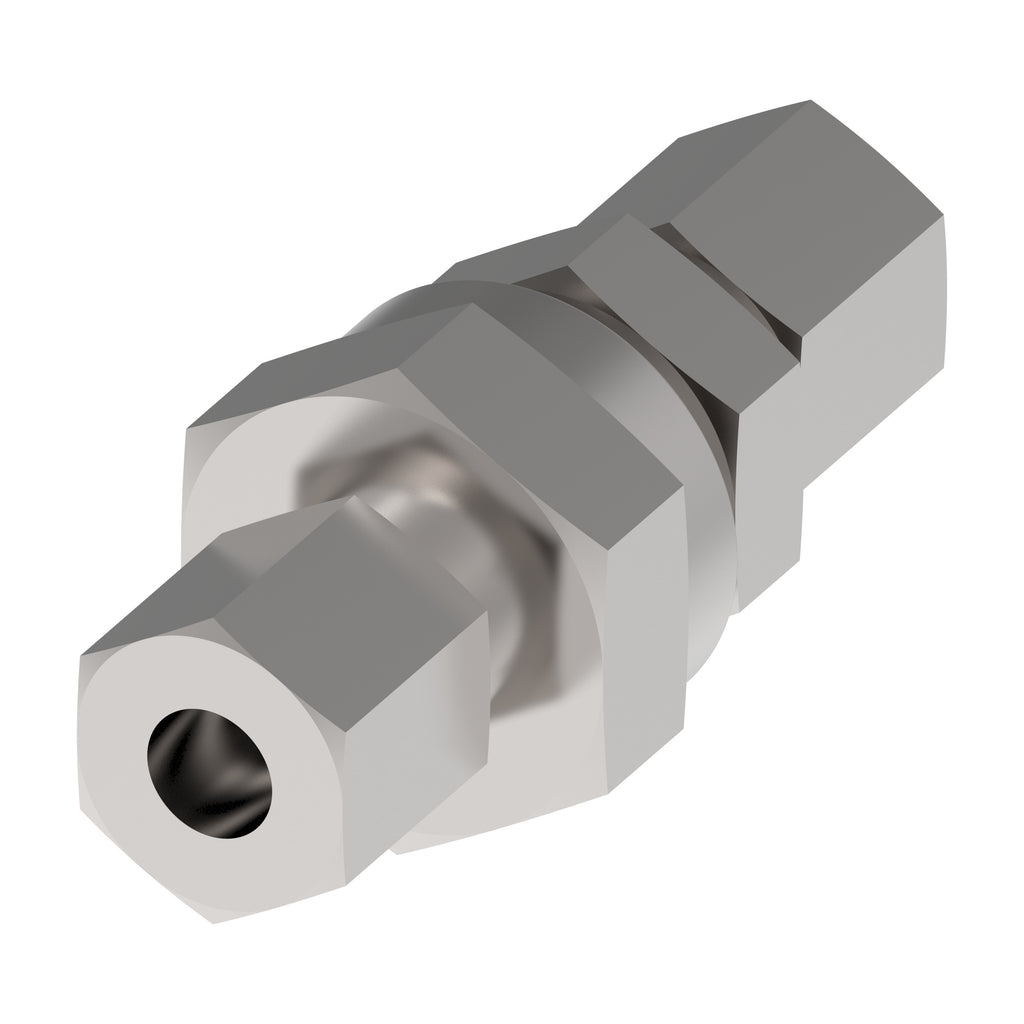

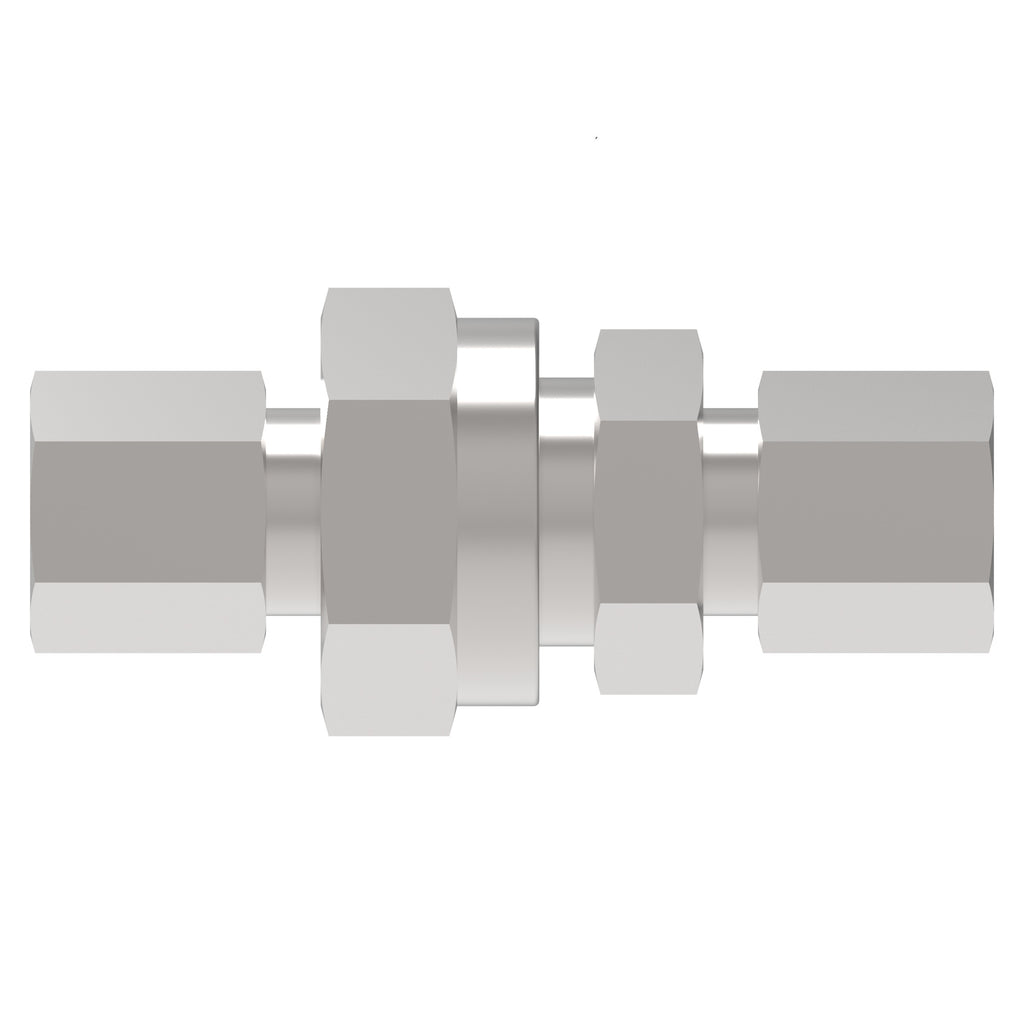

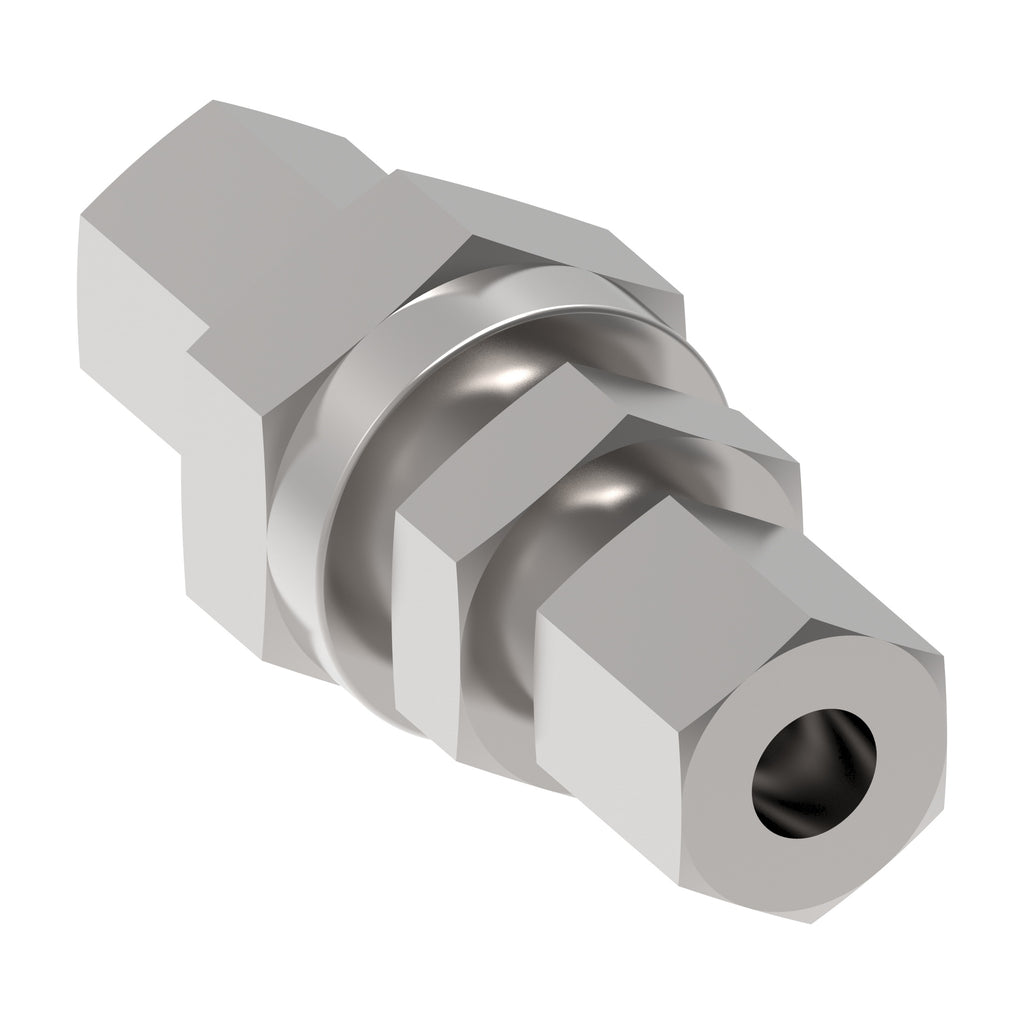

VALVE, P-RV 18 L/1,5 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL609786
€19,56
Technische Daten
| Legacy part number | WAL609786 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | High-pressure ball valve |
| Model Code 1 | P-RV 18 L/1,5 A4GS |
| Product material | Carbon steel |
| Thread size 1 | M26x1.5 |
| Thread size 2 | M26x1.5 |
| Angle shape | Straight |
| End size 1 | 18L |
| End size 2 | 18L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 27 |
| Hex size 2 MM | 32 |
| Working temperature max C | 100 |
| Working temperature min C | -20 |
| Working pressure bar | 400 |
| Complete connector | Yes |
| Hex size 3 MM | 32 |
| Product serial name | P-RV … |
| Tube outside diameter 1 MM | 18 |
| Tube outside diameter 2 MM | 18 |
| Finish plating | Guardian Seal |
| Product height in | 1.26 |
| Product width in | 1.26 |
| Product width mm | 32 |
| Product height mm | 32 |
| Product length mm | 80 |
| Product length in | 3.15 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
