WAL610036
€13,28
Zu Produktinformationen springen
Auf Lager
WAL610036

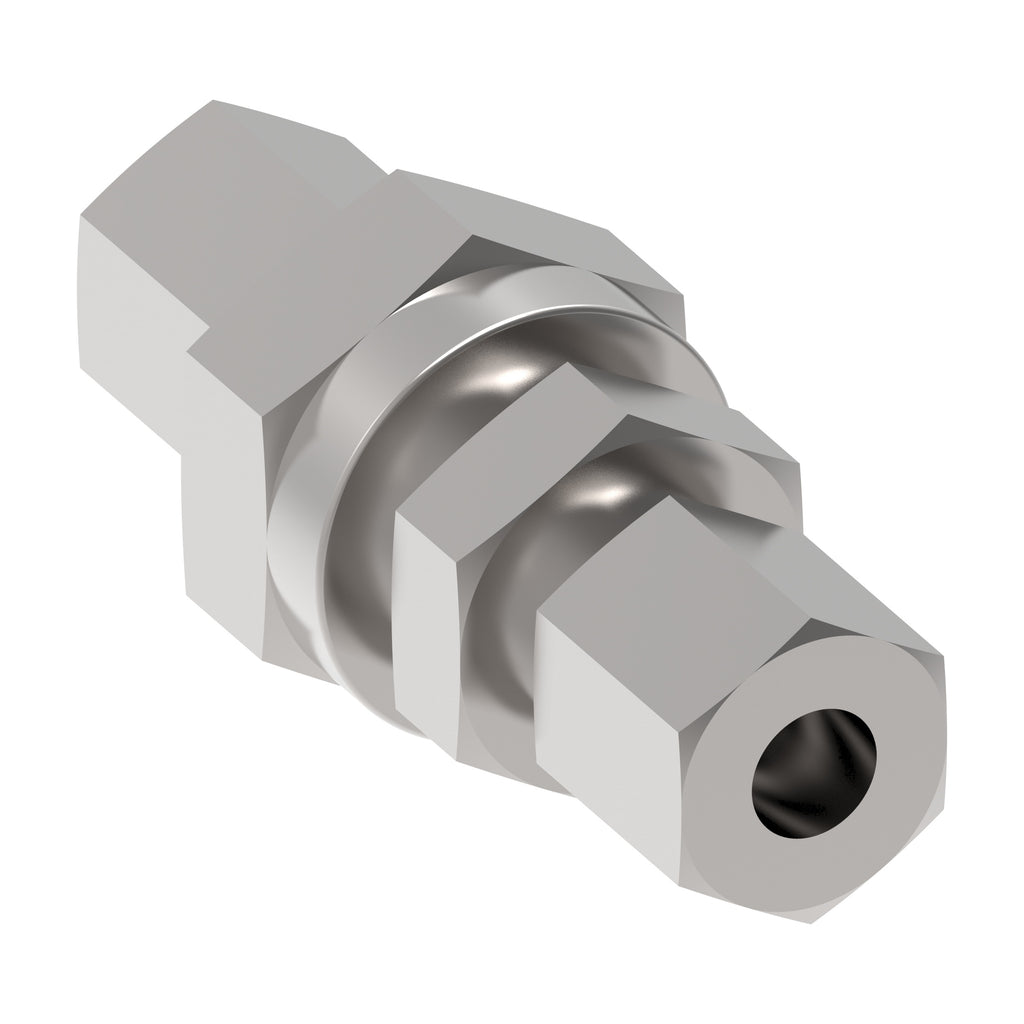

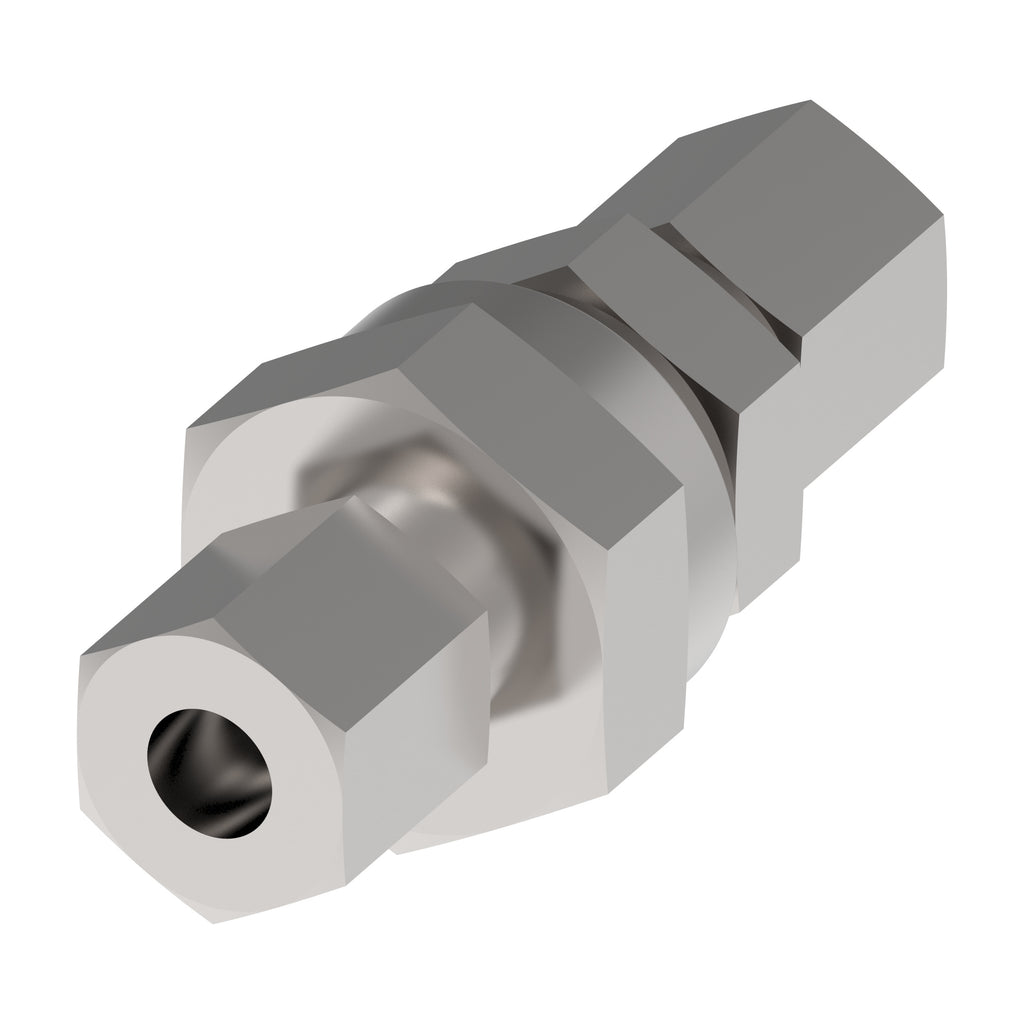

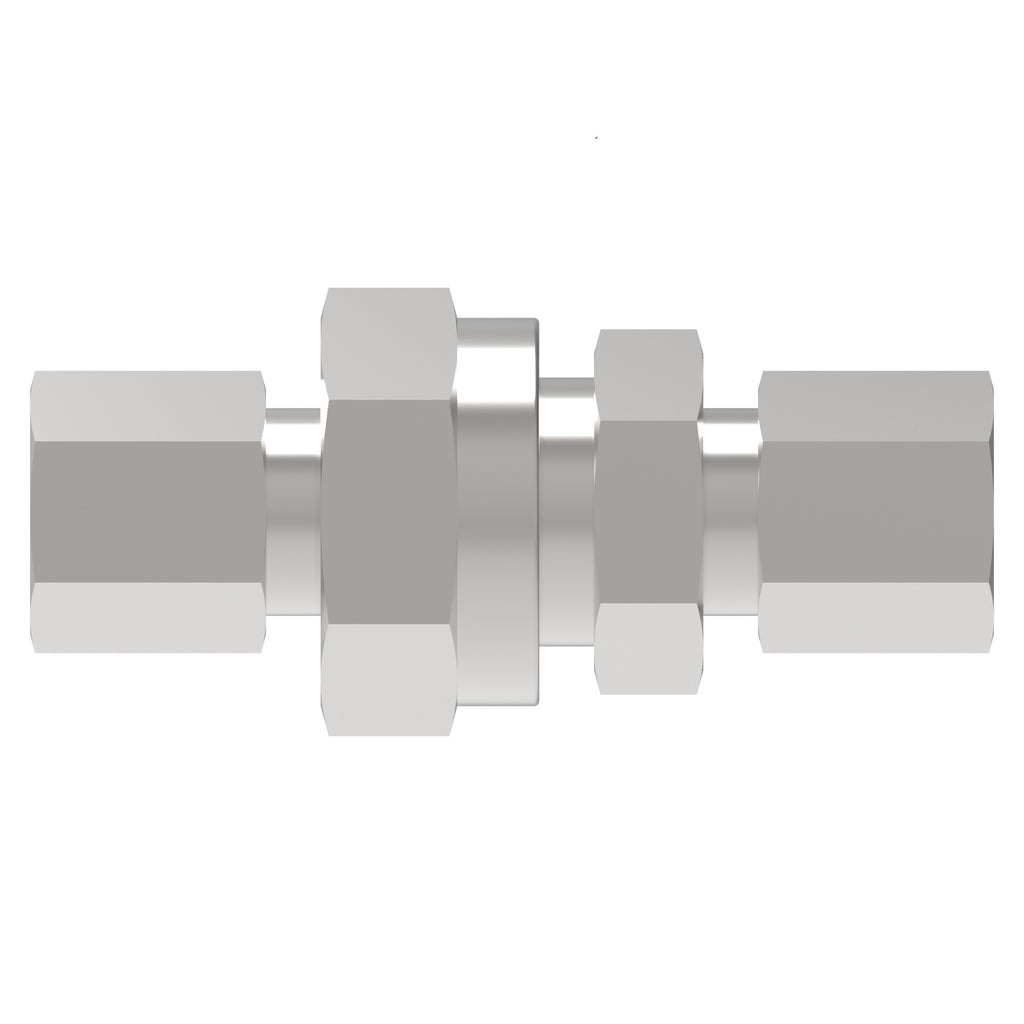

VALVE, P-RV 10 S/2,0 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL610036
€15,80
Technische Daten
| Legacy part number | WAL610036 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | High-pressure ball valve |
| Model Code 1 | P-RV 10 S/2,0 A4GS |
| Product material | Carbon steel |
| Thread size 1 | M18x1.5 |
| Thread size 2 | M18x1.5 |
| Angle shape | Straight |
| End size 1 | 10S |
| End size 2 | 10S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 22 |
| Hex size 2 MM | 22 |
| Working temperature max C | 100 |
| Working temperature min C | -20 |
| Working pressure bar | 400 |
| Complete connector | Yes |
| Product serial name | P-RV … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 1.063 |
| Product width in | 1.063 |
| Product width mm | 27 |
| Product height mm | 27 |
| Product length mm | 71 |
| Product length in | 2.795 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
