WAL612901
€19,43
Zu Produktinformationen springen
Auf Lager
WAL612901

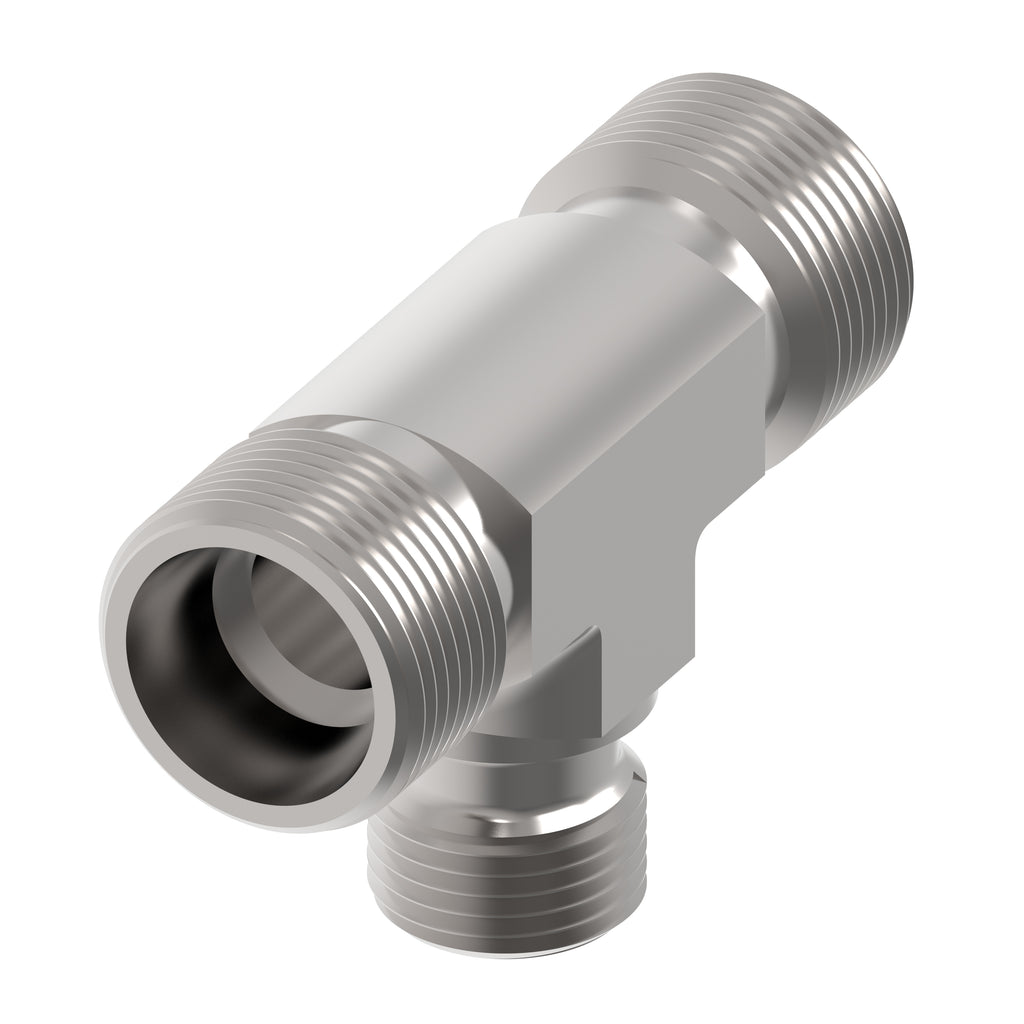

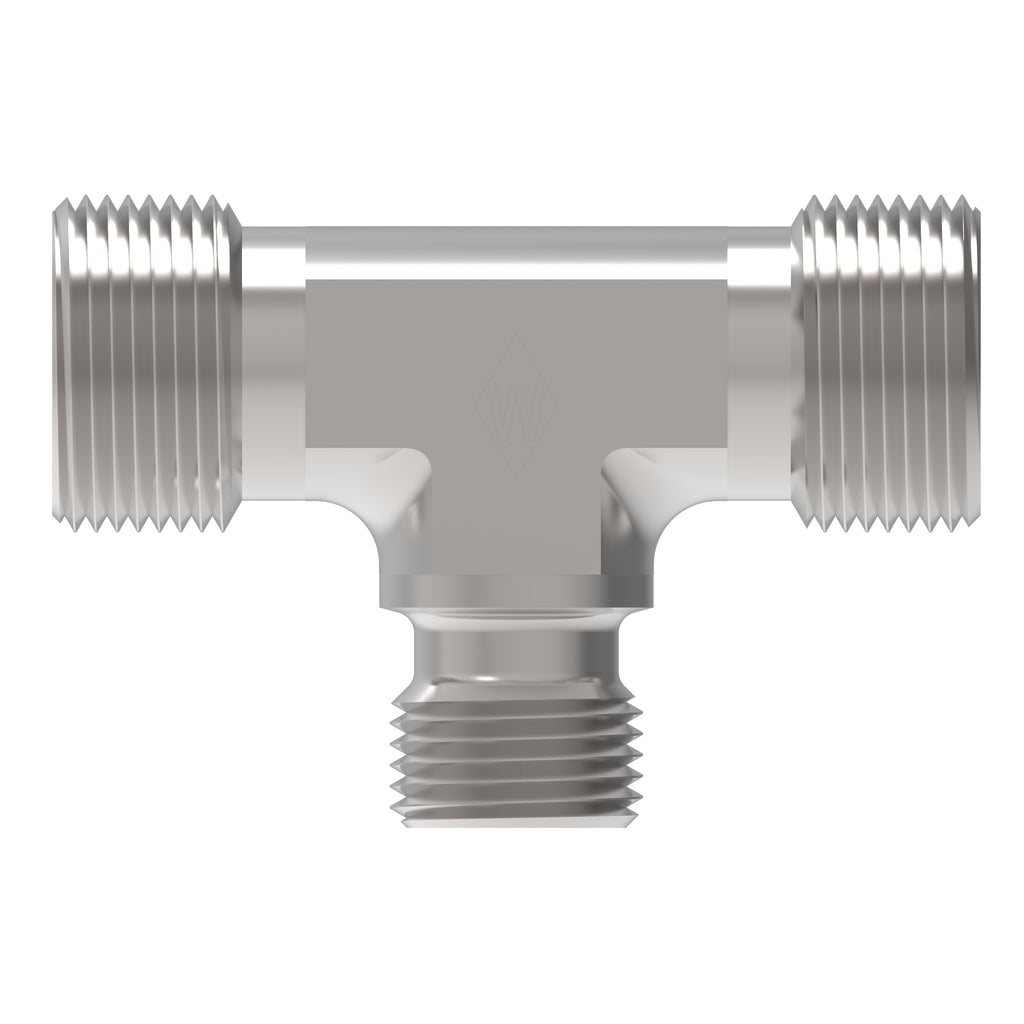

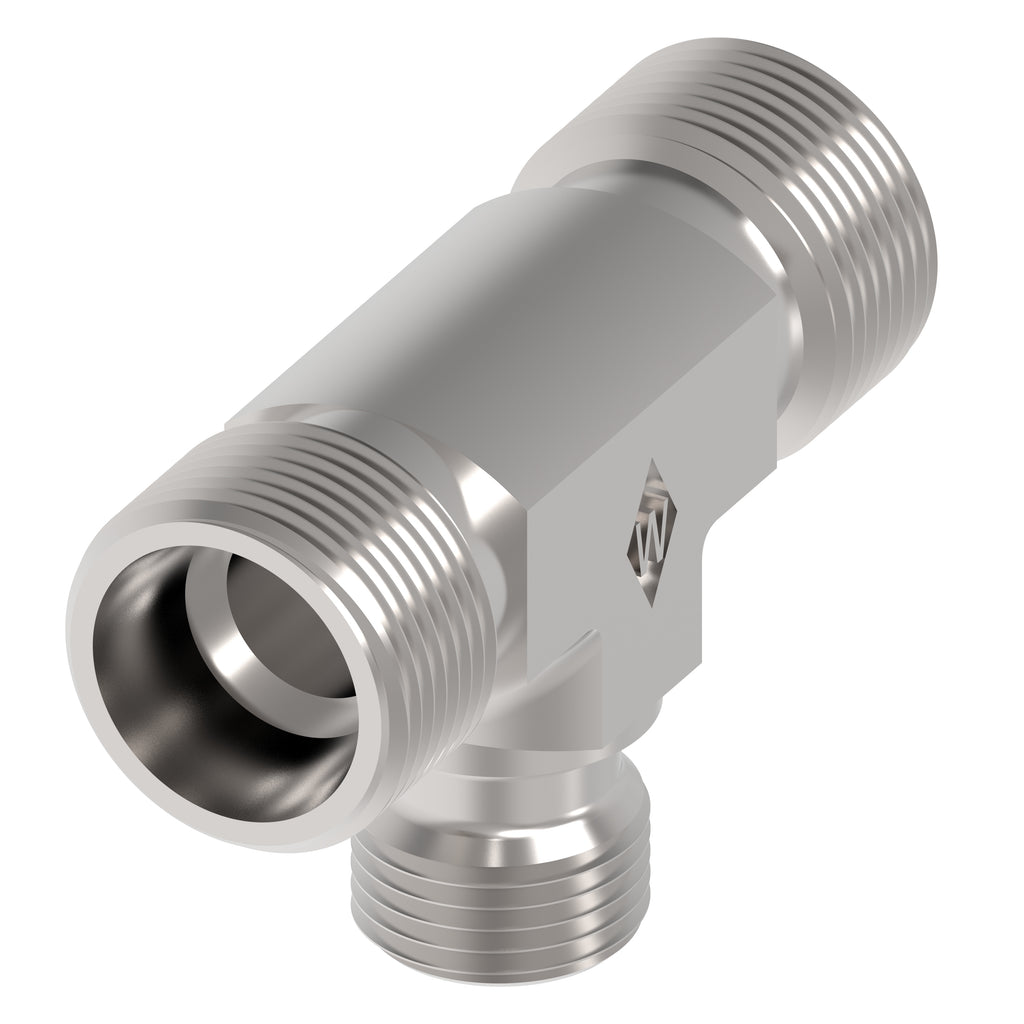

VALVE, TWS 10 L A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL612901
€23,12
Technische Daten
| Legacy part number | WAL612901 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Shuttle valve |
| Model Code 1 | TWS 10 L A4GS |
| Product material | Carbon steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | M16x1.5 |
| Angle shape | Tee |
| End size 1 | 10L |
| End size 2 | 10L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 17 |
| Working temperature max C | 100 |
| Working temperature min C | -20 |
| Working pressure bar | 250 |
| Complete connector | No |
| End size 3 | 10L |
| End type 3 | 24 deg. tube port light duty |
| Product serial name | TWS … |
| Thread size 3 | M16x1.5 |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 1.732 |
| Product width in | 0.669 |
| Product width mm | 17 |
| Product height mm | 44 |
| Product length mm | 44 |
| Product length in | 1.732 |
Weitere Produktdaten
- Herkunftsland: Germany
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
