WAL617496
€37,44
Zu Produktinformationen springen
Auf Lager
WAL617496

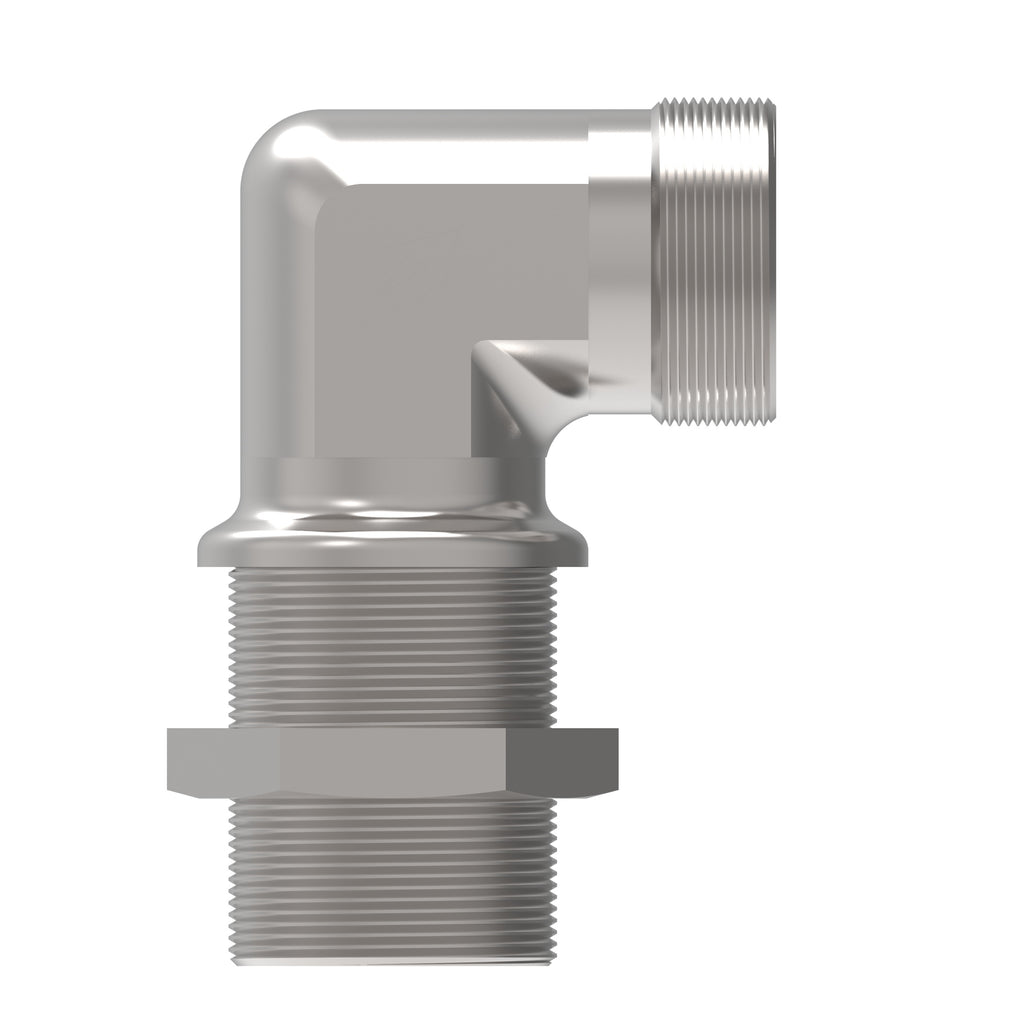

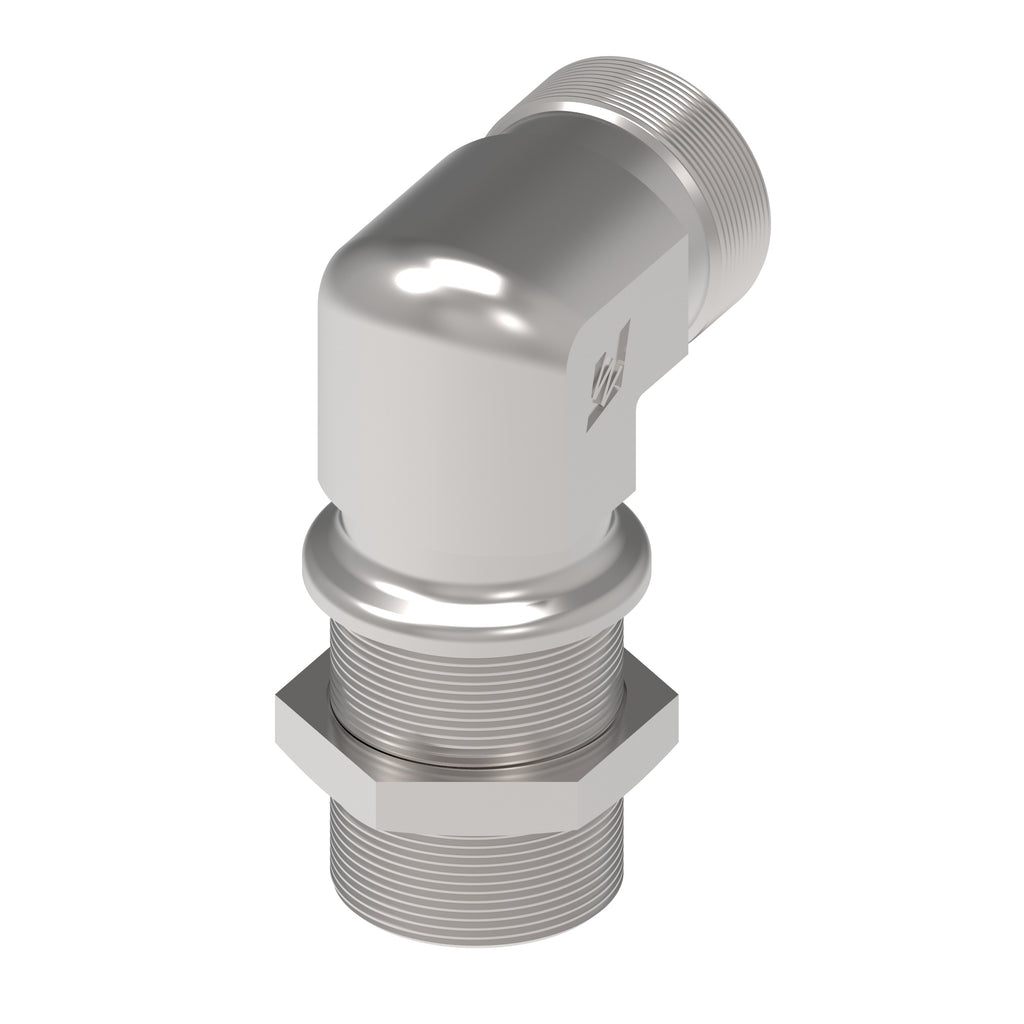

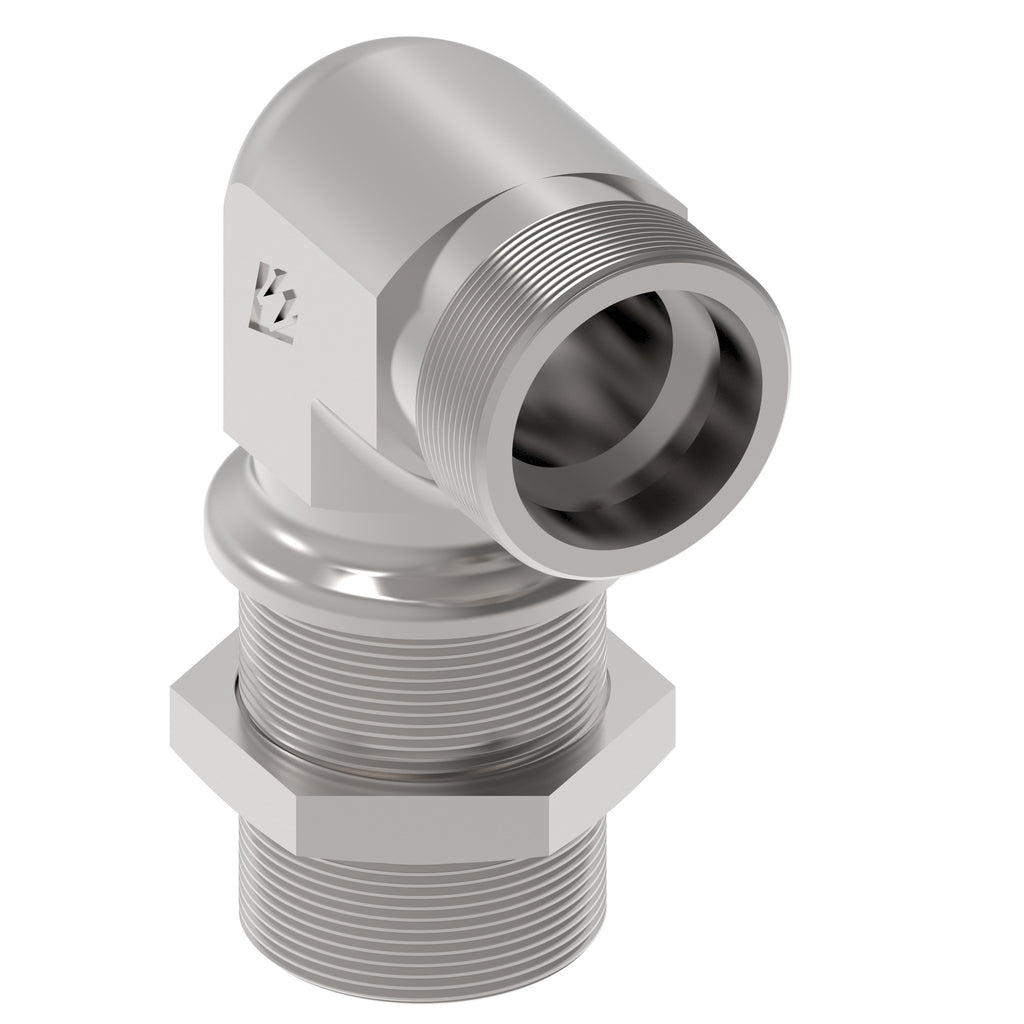

TUBE FTG, WSS 10 S MKM-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL617496
€44,55
Technische Daten
| Legacy part number | WAL617496 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | WSS 10 S M.SECHSK.M-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M18x1.5 |
| Thread size 2 | M18x1.5 |
| Angle shape | Elbow 90 degree |
| End size 1 | 10S |
| End size 2 | 10S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 17 |
| Hex size 2 MM | 24 |
| Working temperature min C | -40 |
| Working pressure bar | 800 |
| Complete connector | No |
| Product serial name | WSS … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 0.945 |
| Product width in | 0.945 |
| Product width mm | 24 |
| Product height mm | 24 |
| Product length mm | 65.5 |
| Product length in | 2.579 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
