WAL620114
€5,43
Zu Produktinformationen springen
Auf Lager
WAL620114

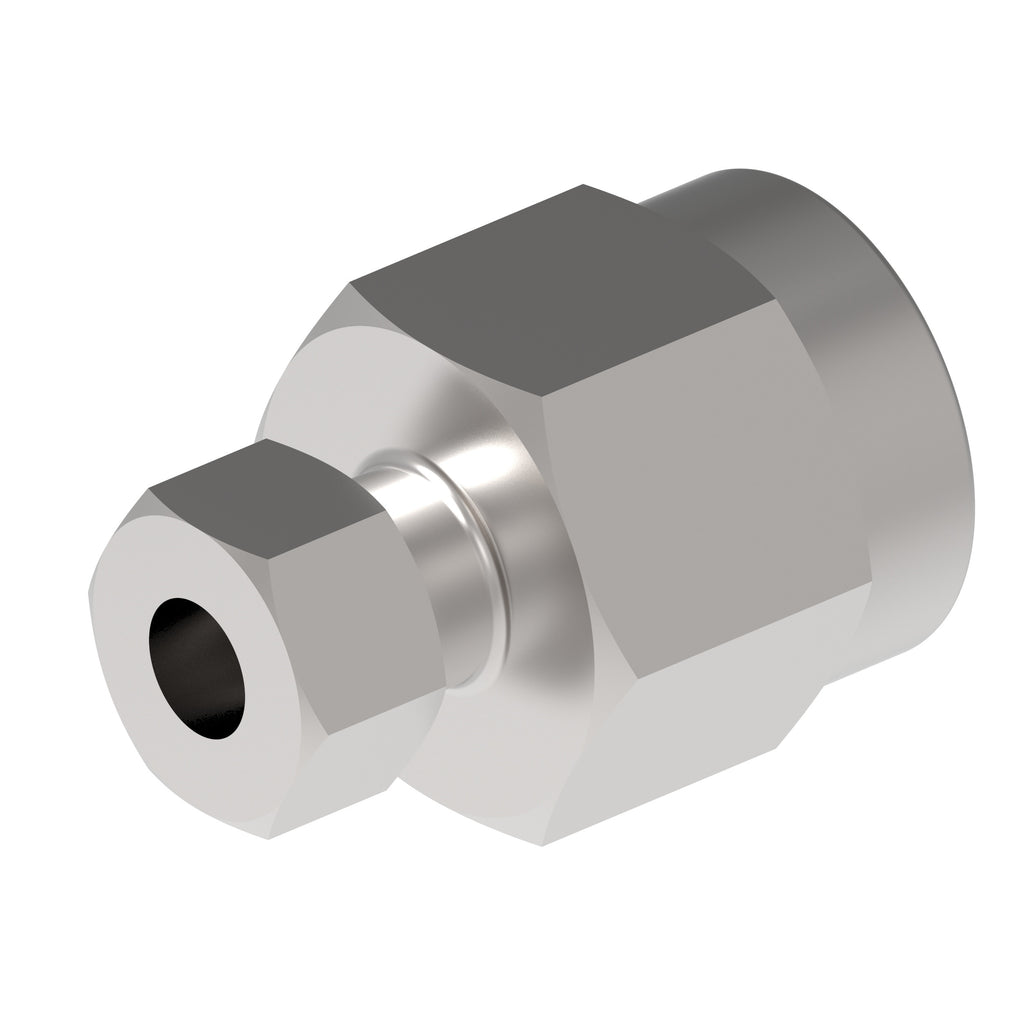

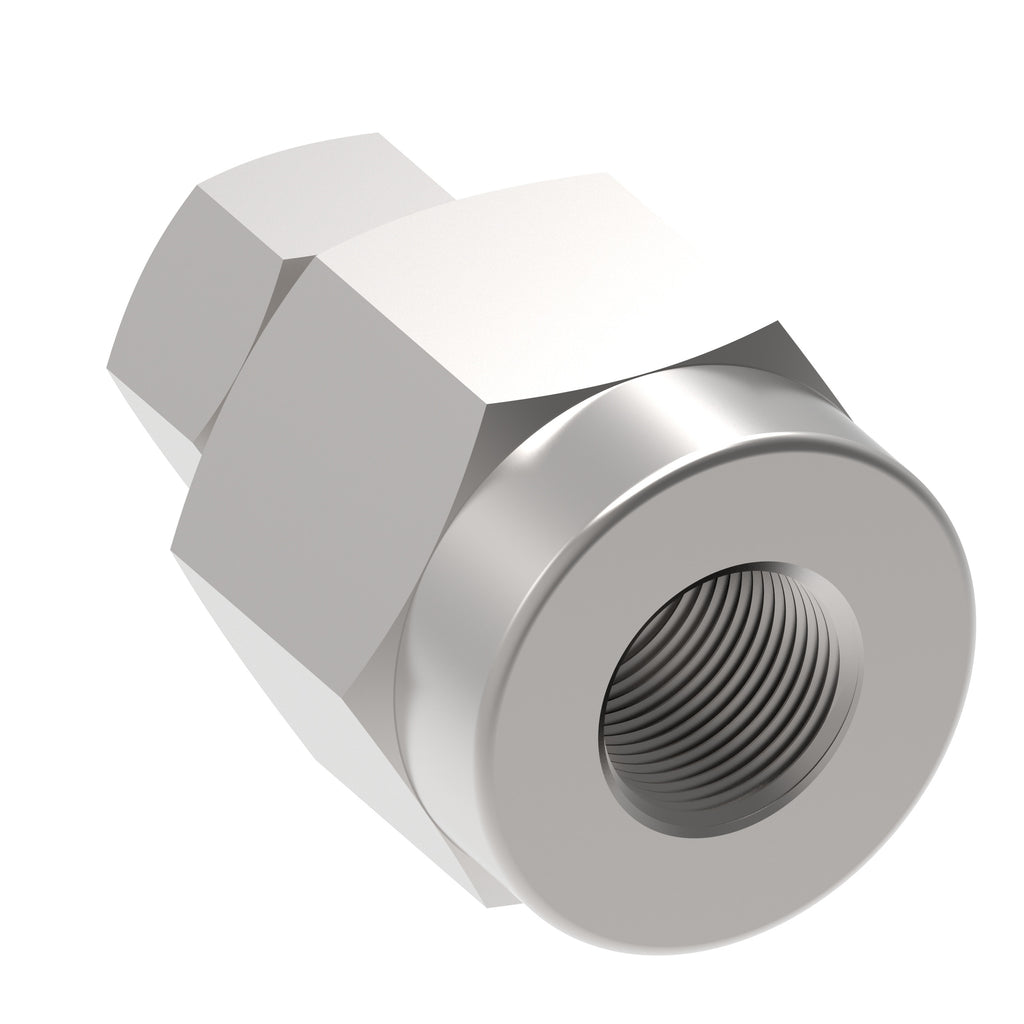

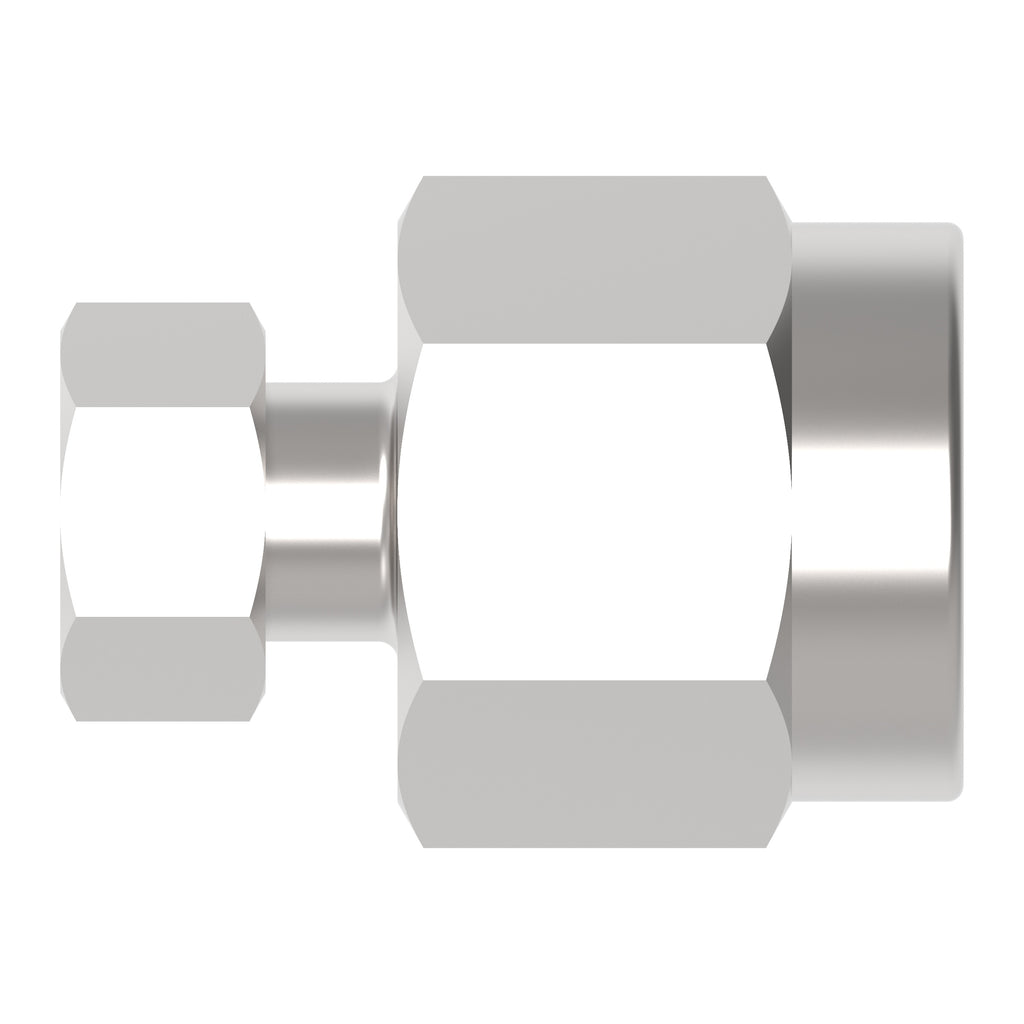

TUBE FTG, P-MAV 10 LR-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL620114
€6,46
Technische Daten
| Legacy part number | WAL620114 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Gauge fitting |
| Model Code 1 | P-MAV 10 LR-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | G 1/4 |
| Angle shape | Straight |
| End size 1 | 10L |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 19 |
| Hex size 2 MM | 19 |
| Working temperature max C | 400 |
| Working temperature min C | -60 |
| Working pressure bar | 500 |
| Complete connector | Yes |
| Product serial name | P-MAV … R |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 0.748 |
| Product width in | 1.496 |
| Product width mm | 38 |
| Product height mm | 19 |
| Product length mm | 38 |
| Product length in | 1.496 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
