WAL620143
€18,28
Zu Produktinformationen springen
Auf Lager
WAL620143

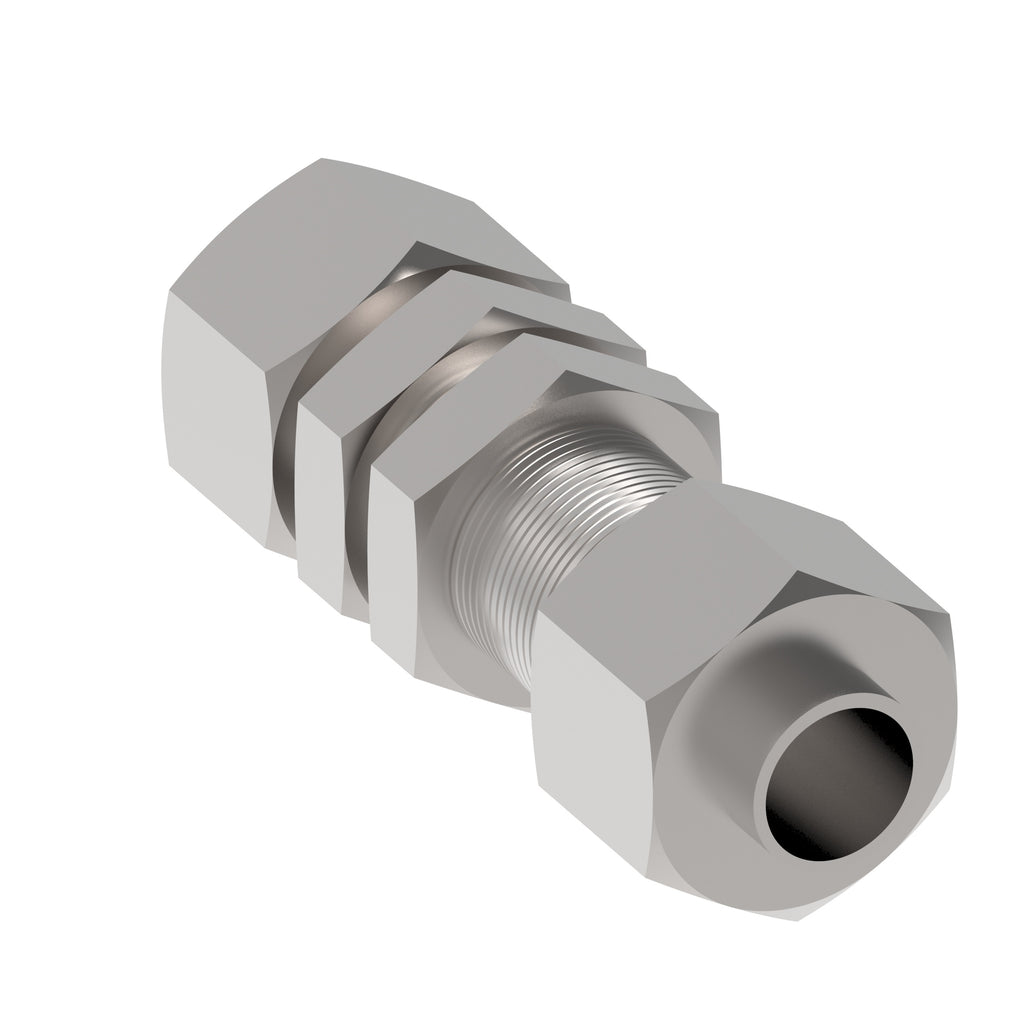

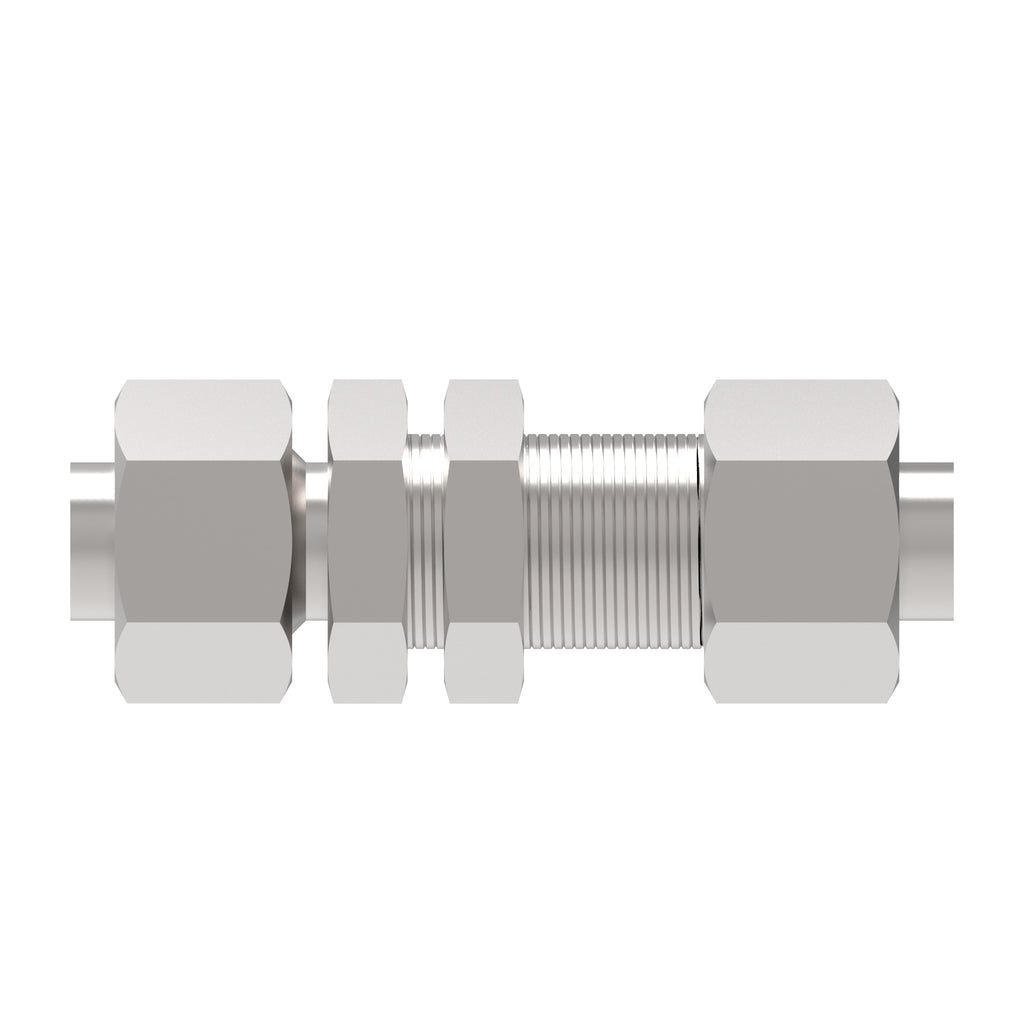

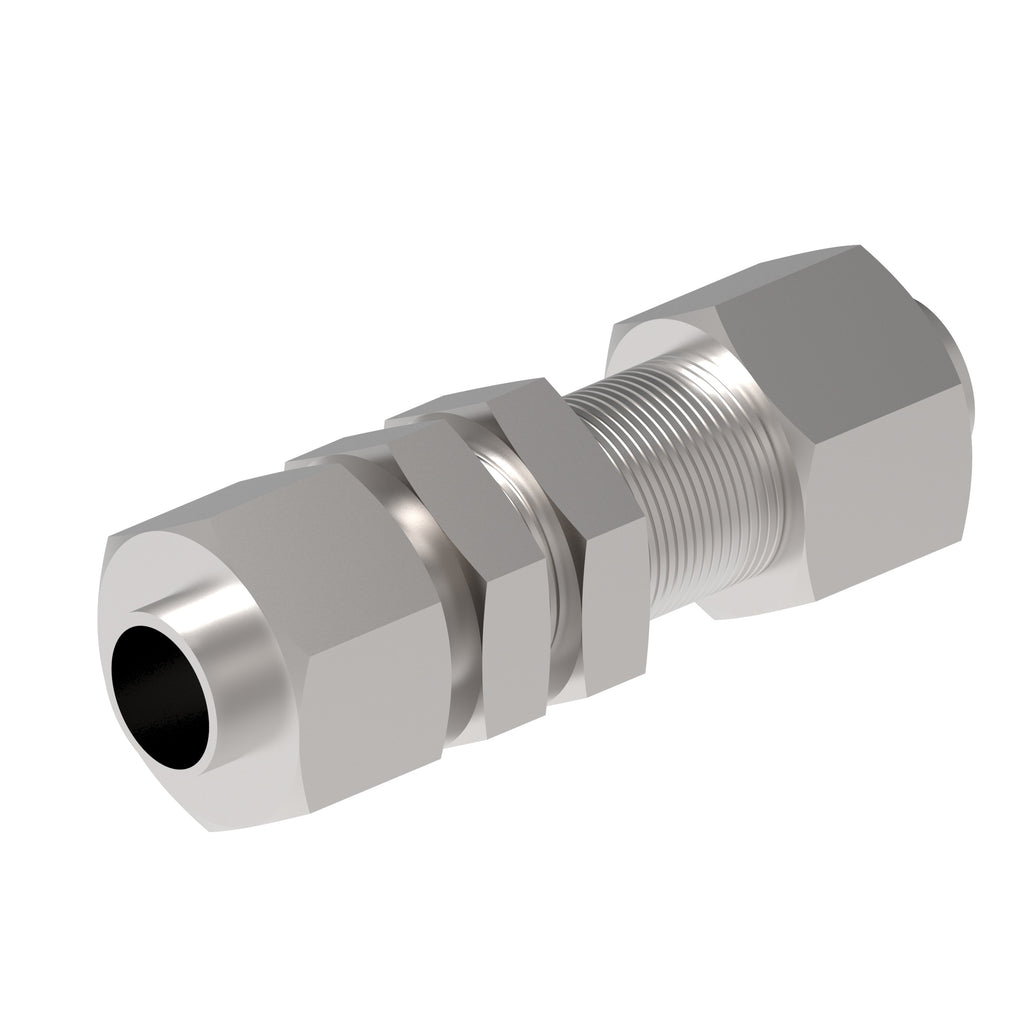

TUBE FTG, P-GSV 10 L-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL620143
€21,75
Technische Daten
| Legacy part number | WAL620143 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | P-GSV 10 L-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | M16x1.5 |
| Angle shape | Straight |
| End size 1 | 10L |
| End size 2 | 10L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 22 |
| Hex size 2 MM | 22 |
| Working pressure bar | 500 |
| Complete connector | Yes |
| Hex size 3 MM | 19 |
| Product serial name | P-GSV … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 0.866 |
| Product width in | 0.866 |
| Product width mm | 22 |
| Product height mm | 22 |
| Product length mm | 68 |
| Product length in | 2.677 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73072910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
