WAL620206

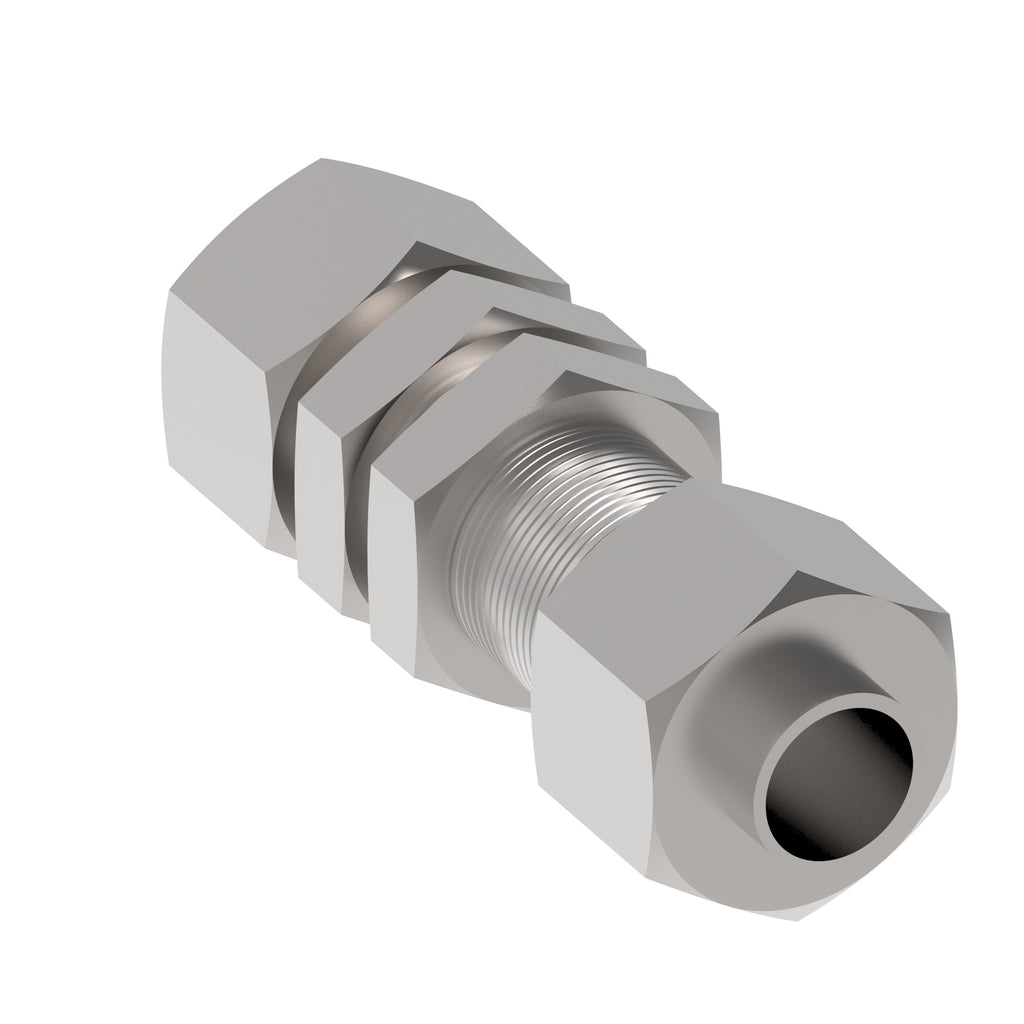

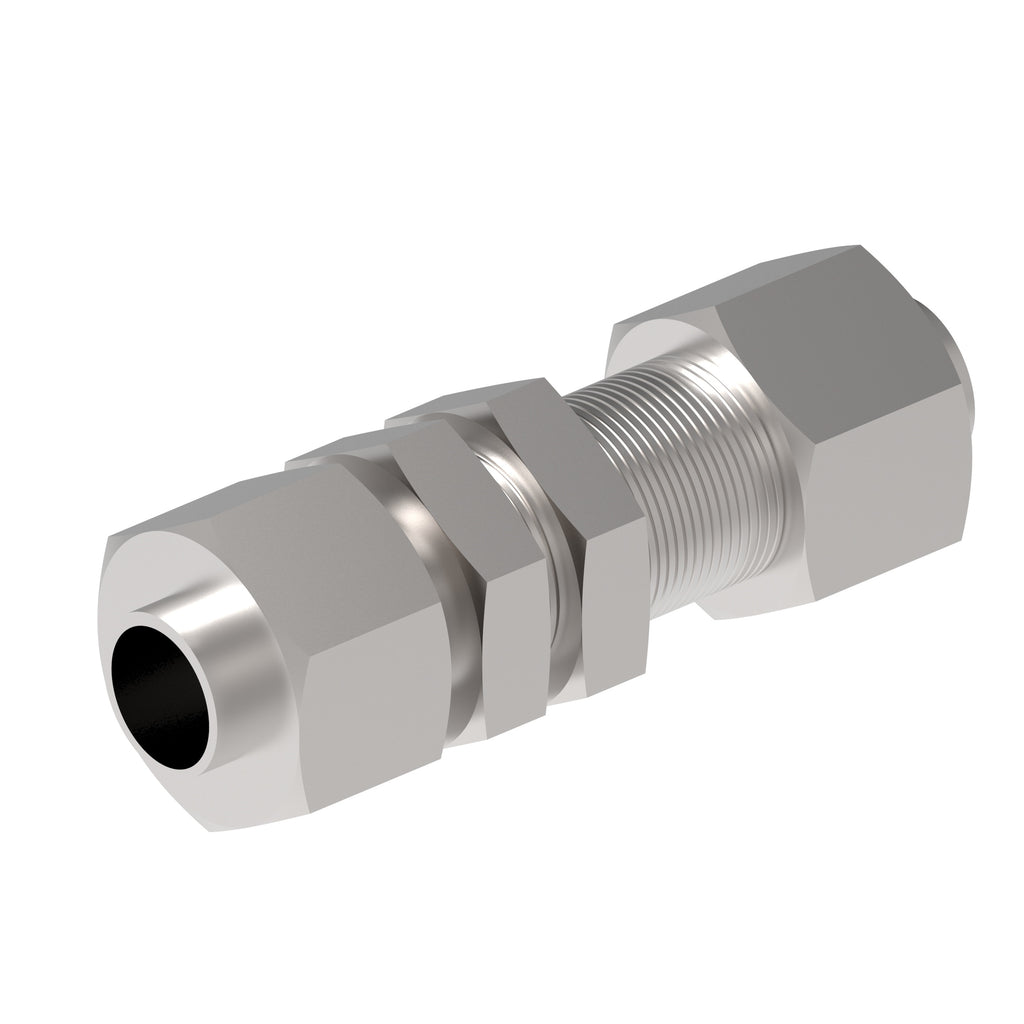

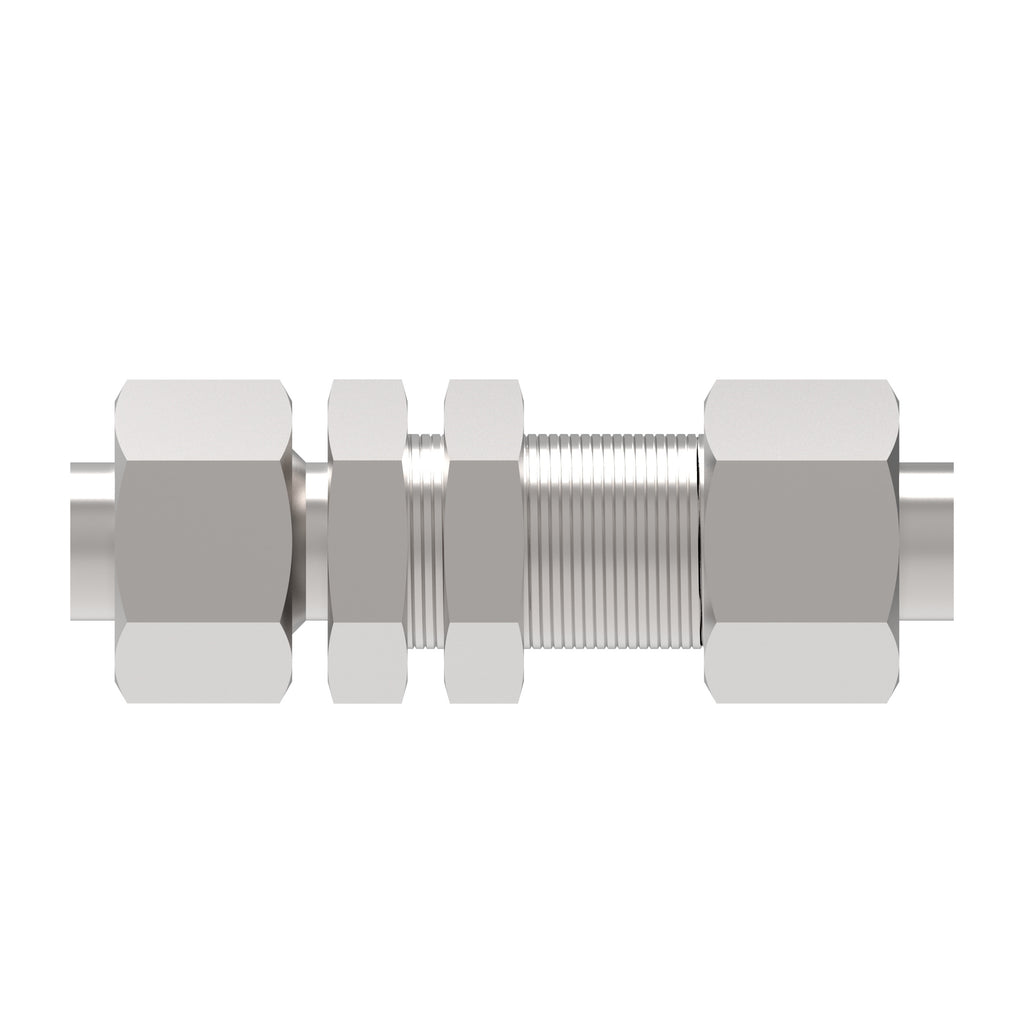

TUBE FTG, P-GSV 10 S-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL620206
€21,96
Technische Daten
| Legacy part number | WAL620206 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | P-GSV 10 S-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M18x1.5 |
| Thread size 2 | M18x1.5 |
| Angle shape | Straight |
| End size 1 | 10S |
| End size 2 | 10S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 24 |
| Hex size 2 MM | 24 |
| Working pressure bar | 800 |
| Complete connector | Yes |
| Hex size 3 MM | 22 |
| Product serial name | P-GSV … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 0.945 |
| Product width in | 0.945 |
| Product width mm | 24 |
| Product height mm | 24 |
| Product length mm | 77 |
| Product length in | 3.032 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73072910
