WAL620223
€68,49
Zu Produktinformationen springen
Auf Lager
WAL620223

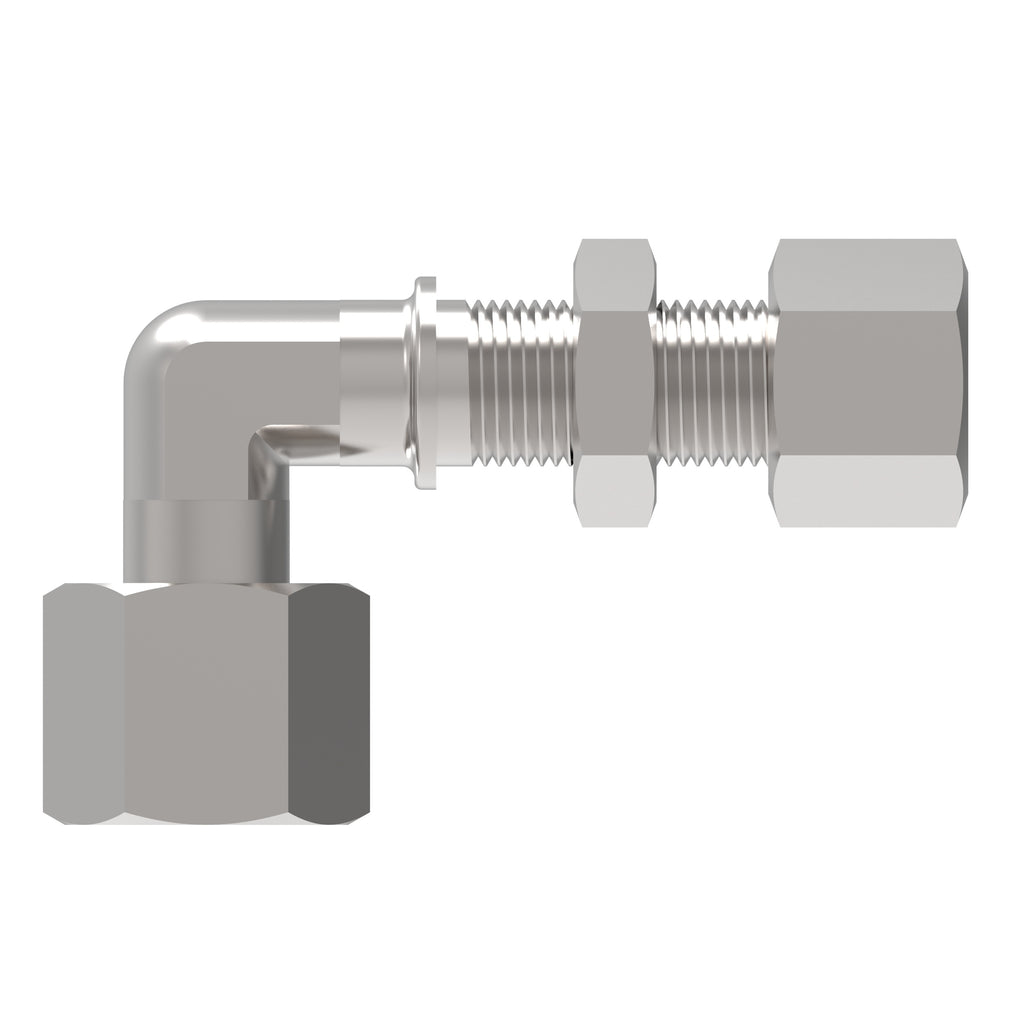

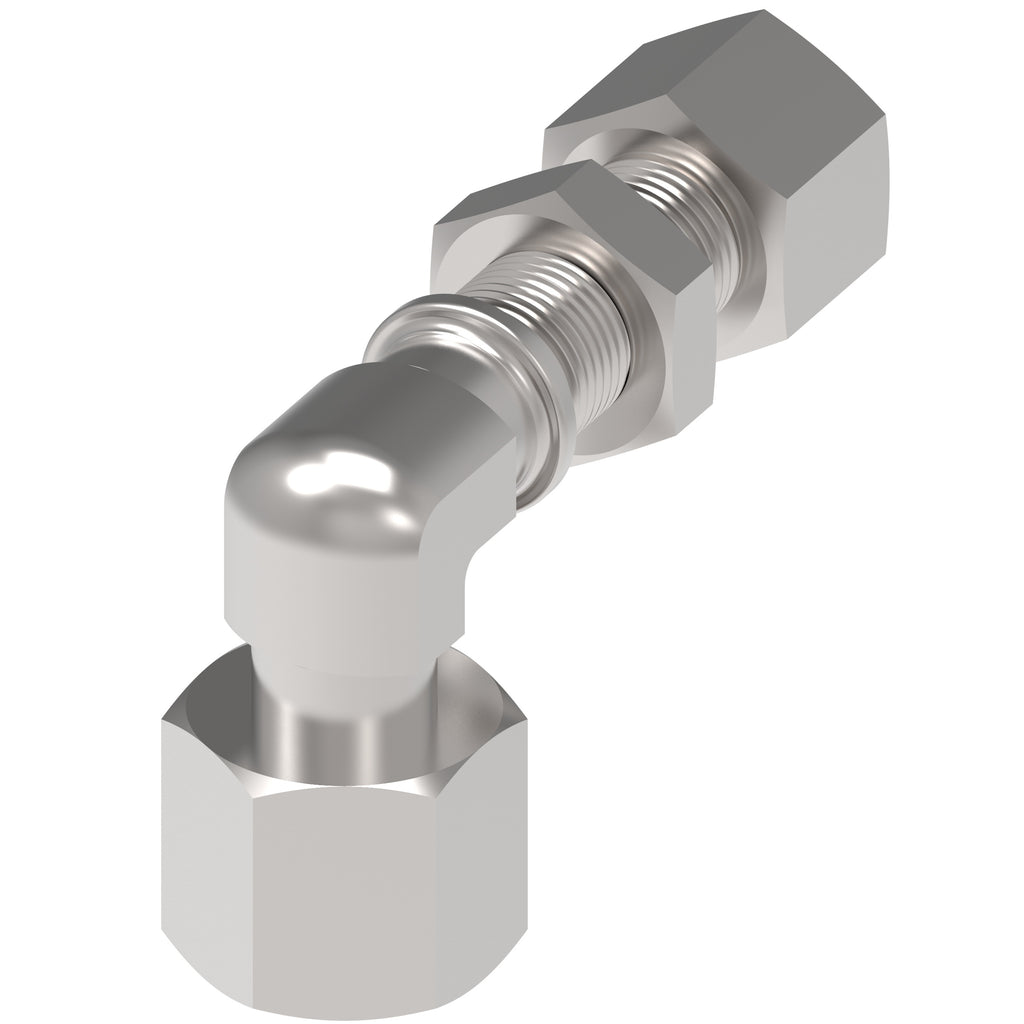

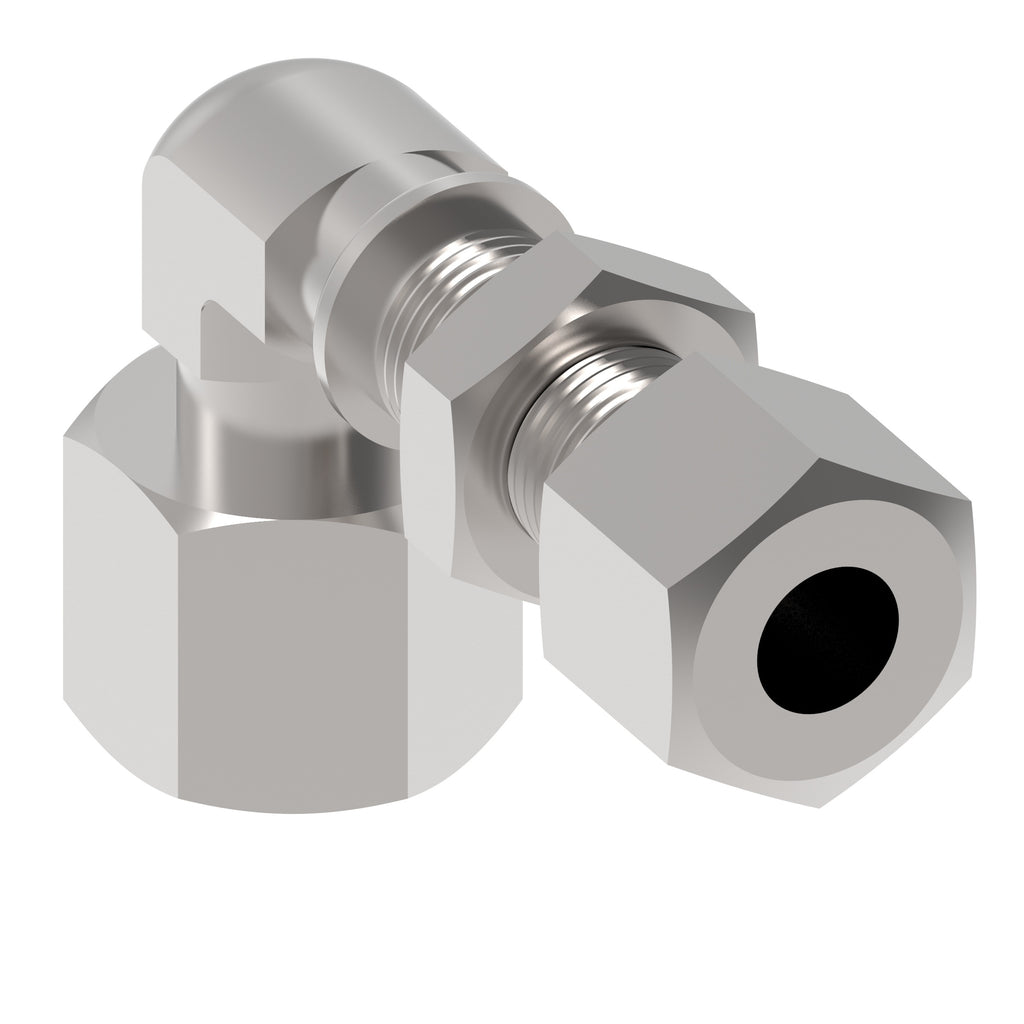

TUBE FTG, P-WSV 20 S-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL620223
€81,50
Technische Daten
| Legacy part number | WAL620223 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | P-WSV 20 S-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M30x2 |
| Thread size 2 | M30x2 |
| Angle shape | Elbow 90 degree |
| End size 1 | 20S |
| End size 2 | 20S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 27 |
| Hex size 2 MM | 36 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 400 |
| Complete connector | Yes |
| Hex size 3 MM | 41 |
| Product serial name | P-WSV … |
| Tube outside diameter 1 MM | 20 |
| Tube outside diameter 2 MM | 20 |
| Finish plating | Guardian Seal |
| Product height in | 2.598 |
| Product width in | 1.614 |
| Product width mm | 41 |
| Product height mm | 66 |
| Product length mm | 103 |
| Product length in | 4.055 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
