WAL620247
€103,47
Zu Produktinformationen springen
Auf Lager
WAL620247

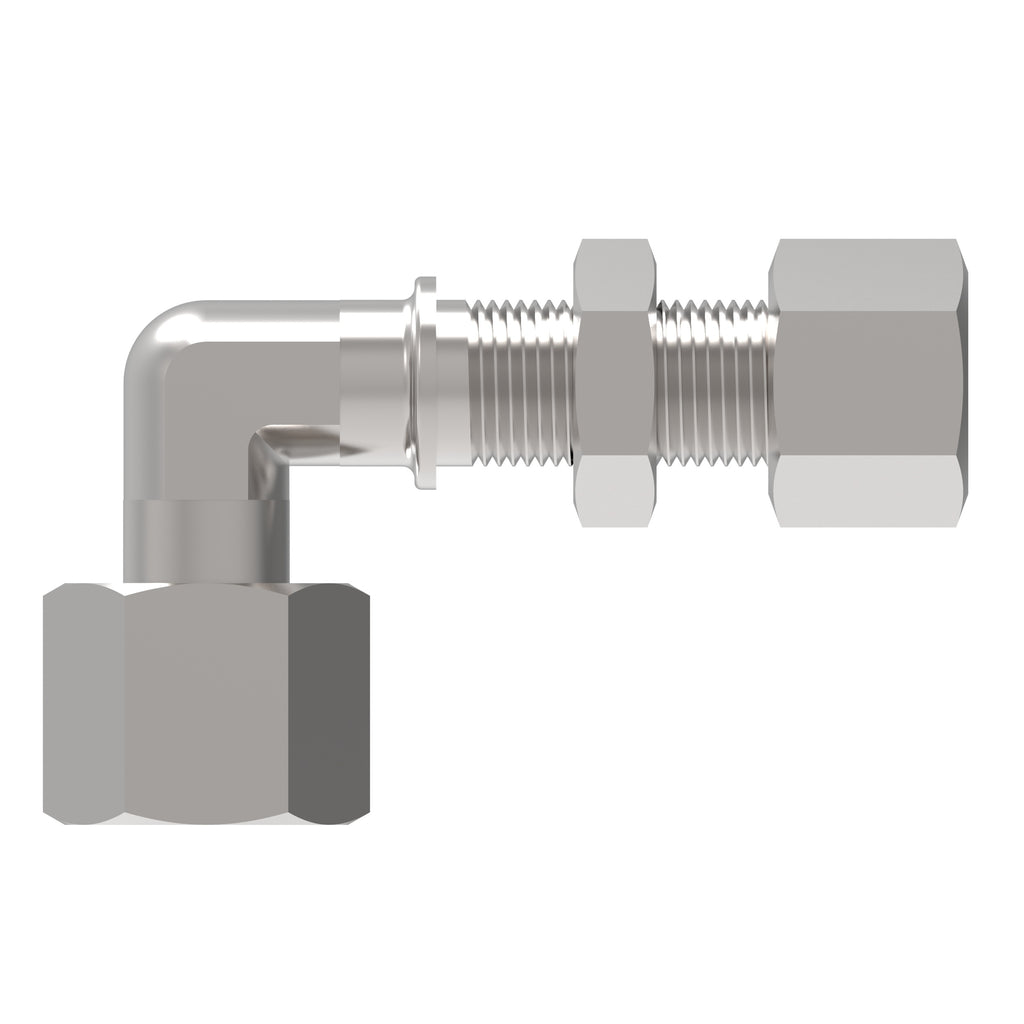

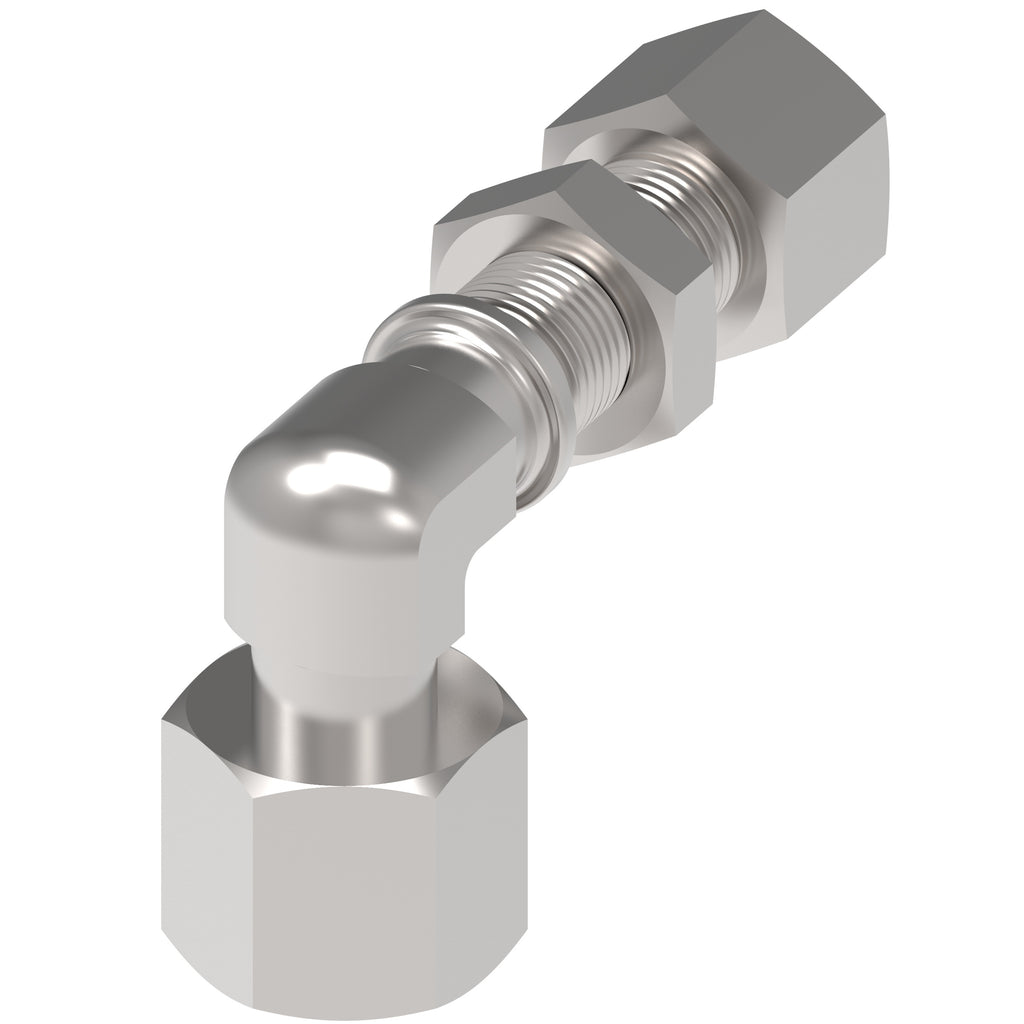

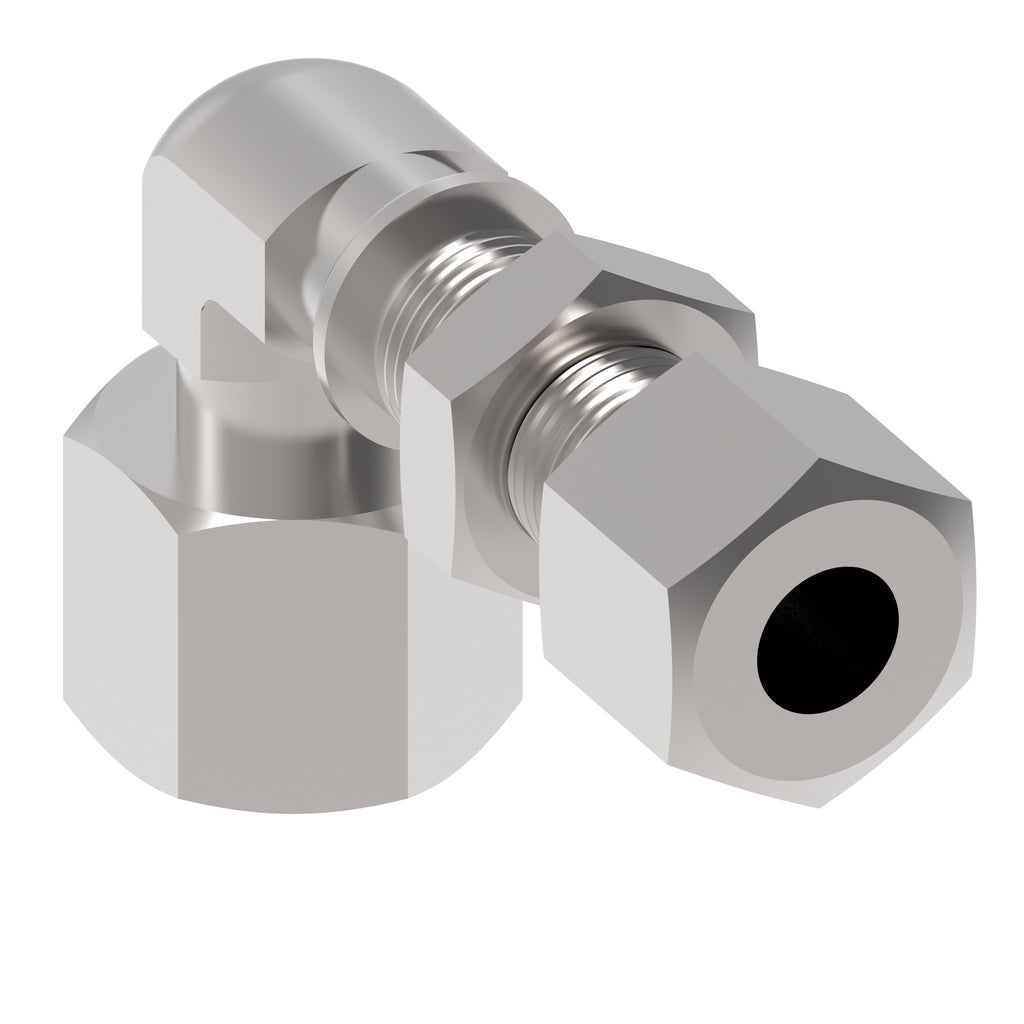

TUBE FTG, P-WSV 25 S-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL620247
€123,13
Technische Daten
| Legacy part number | WAL620247 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | P-WSV 25 S-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M36x2 |
| Thread size 2 | M36x2 |
| Angle shape | Elbow 90 degree |
| End size 1 | 25S |
| End size 2 | 25S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 36 |
| Hex size 2 MM | 46 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 400 |
| Complete connector | Yes |
| Hex size 3 MM | 46 |
| Product serial name | P-WSV … |
| Tube outside diameter 1 MM | 25 |
| Tube outside diameter 2 MM | 25 |
| Finish plating | Guardian Seal |
| Product height in | 3.032 |
| Product width in | 1.811 |
| Product width mm | 46 |
| Product height mm | 77 |
| Product length mm | 116 |
| Product length in | 4.567 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
