WAL620520
€60,34
Zu Produktinformationen springen
Auf Lager
WAL620520

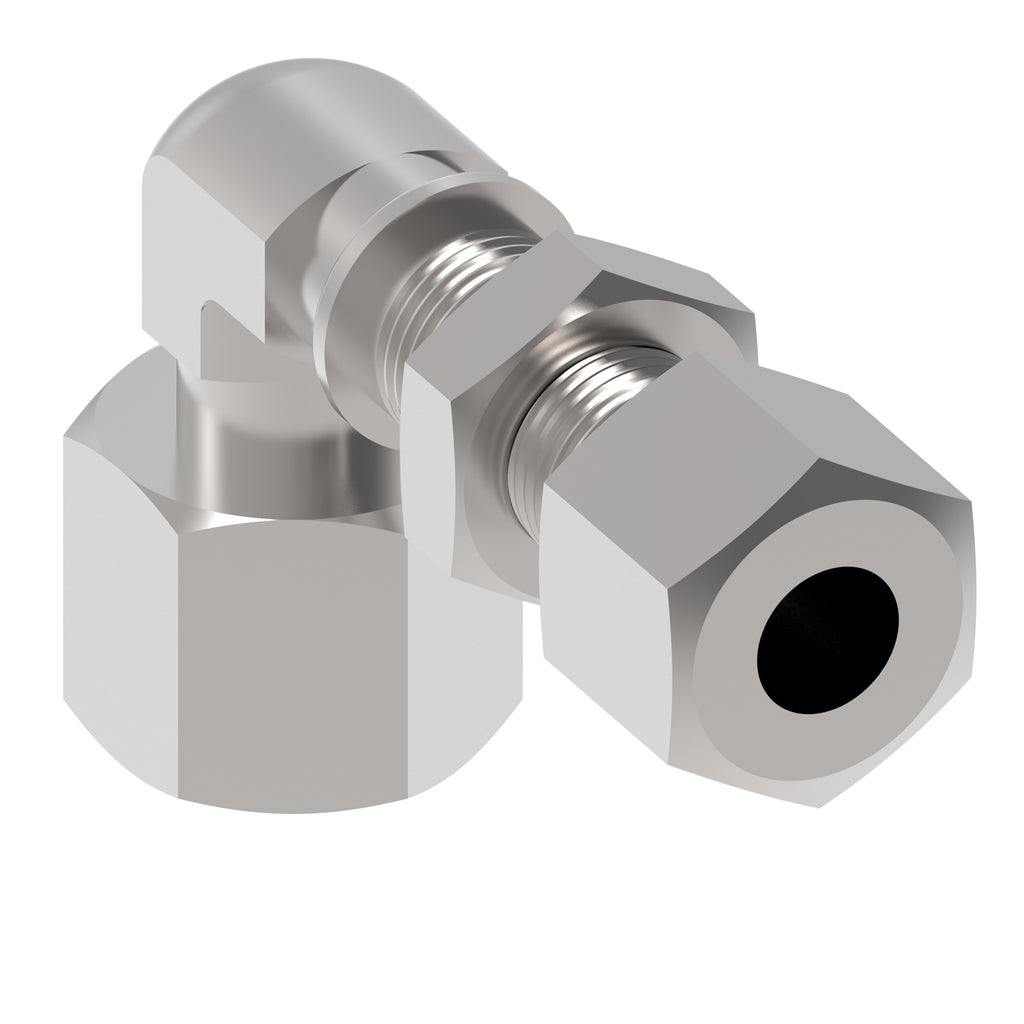

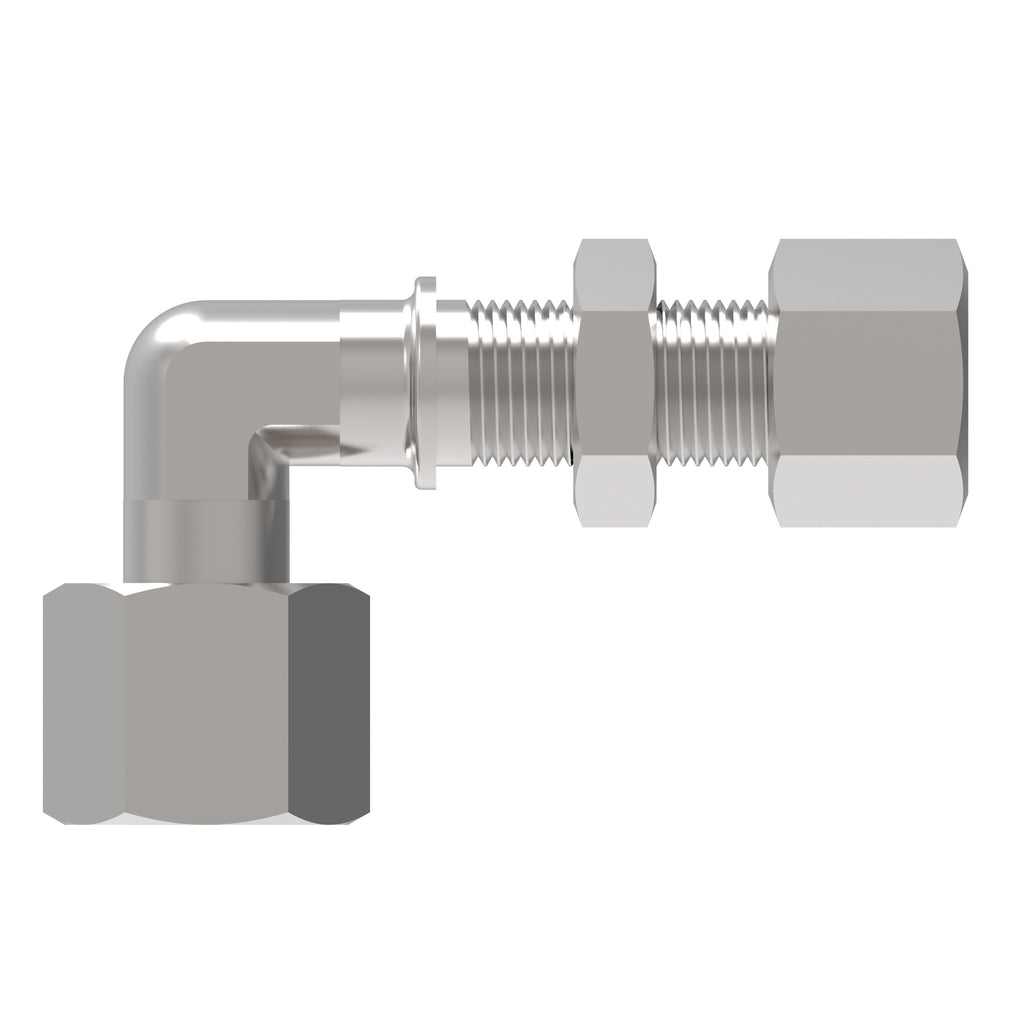

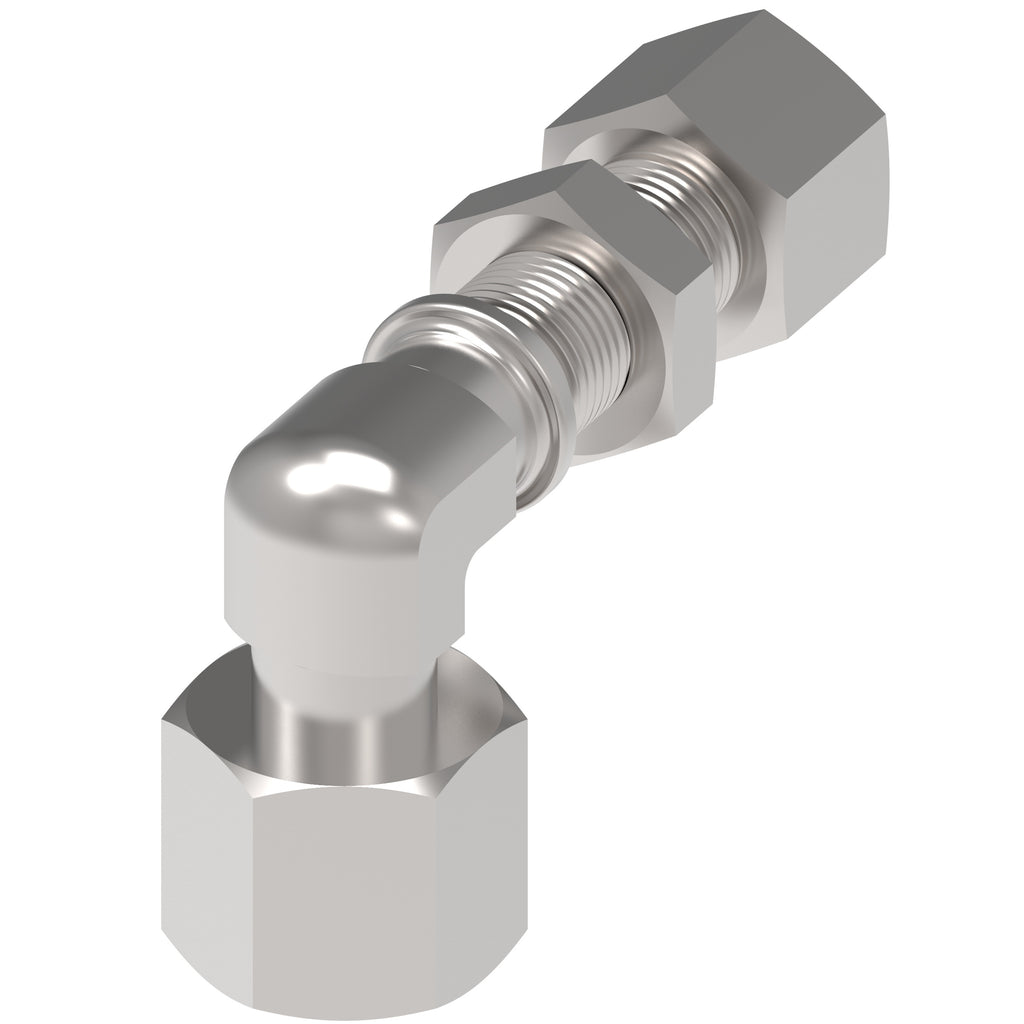

TUBE FTG, P-WSV 22 L-1.4571
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL620520
€71,80
Technische Daten
| Legacy part number | WAL620520 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Bulkhead tube connector |
| Model Code 1 | P-WSV 22 L-1.4571 |
| Product material | 316Ti Stainless steel |
| Thread size 1 | M30x2 |
| Thread size 2 | M30x2 |
| Angle shape | Elbow 90 degree |
| End size 1 | 22L |
| End size 2 | 22L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 27 |
| Hex size 2 MM | 36 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 250 |
| Complete connector | Yes |
| Hex size 3 MM | 41 |
| Product serial name | P-WSV … |
| Tube outside diameter 1 MM | 22 |
| Tube outside diameter 2 MM | 22 |
| Finish plating | Guardian Seal |
| Product height in | 2.441 |
| Product width in | 1.614 |
| Product width mm | 41 |
| Product height mm | 62 |
| Product length mm | 99 |
| Product length in | 3.898 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
