WAL623381
€50,09
Zu Produktinformationen springen
Auf Lager
WAL623381

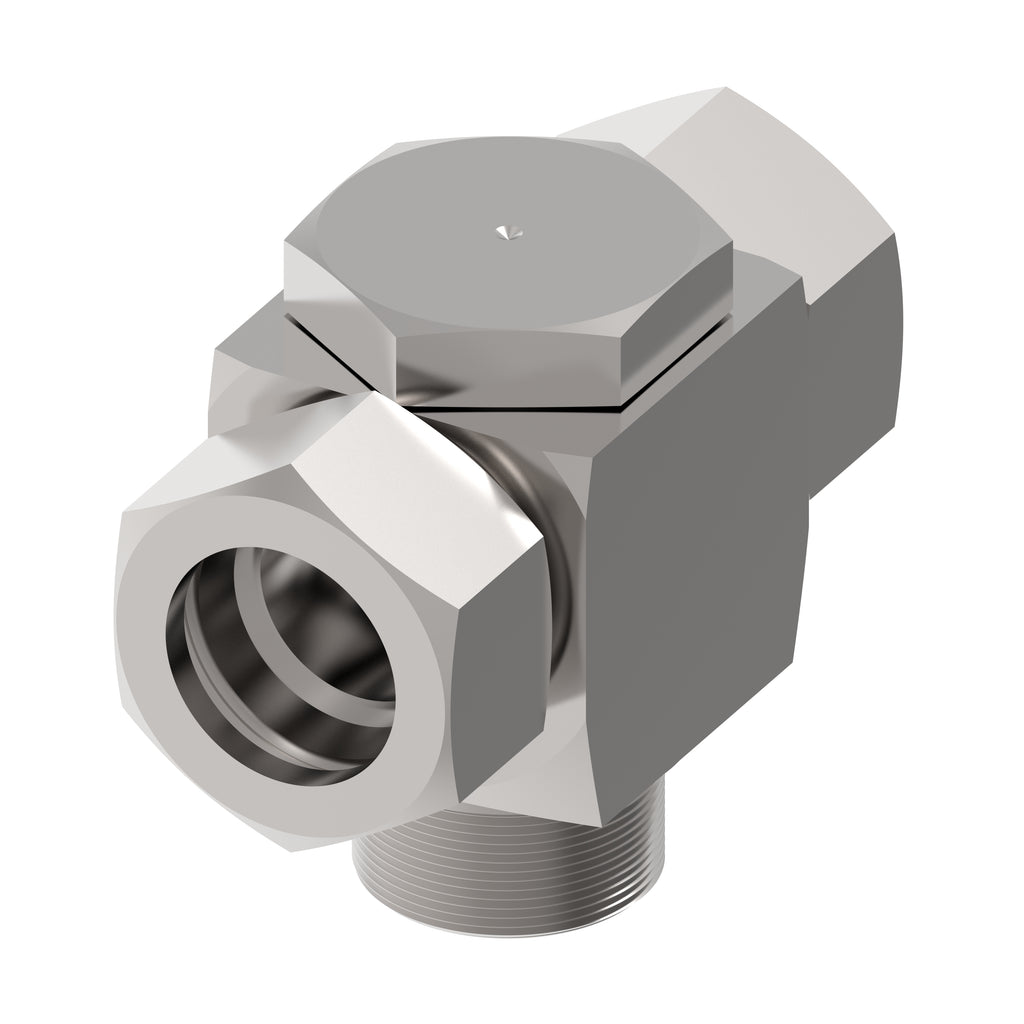

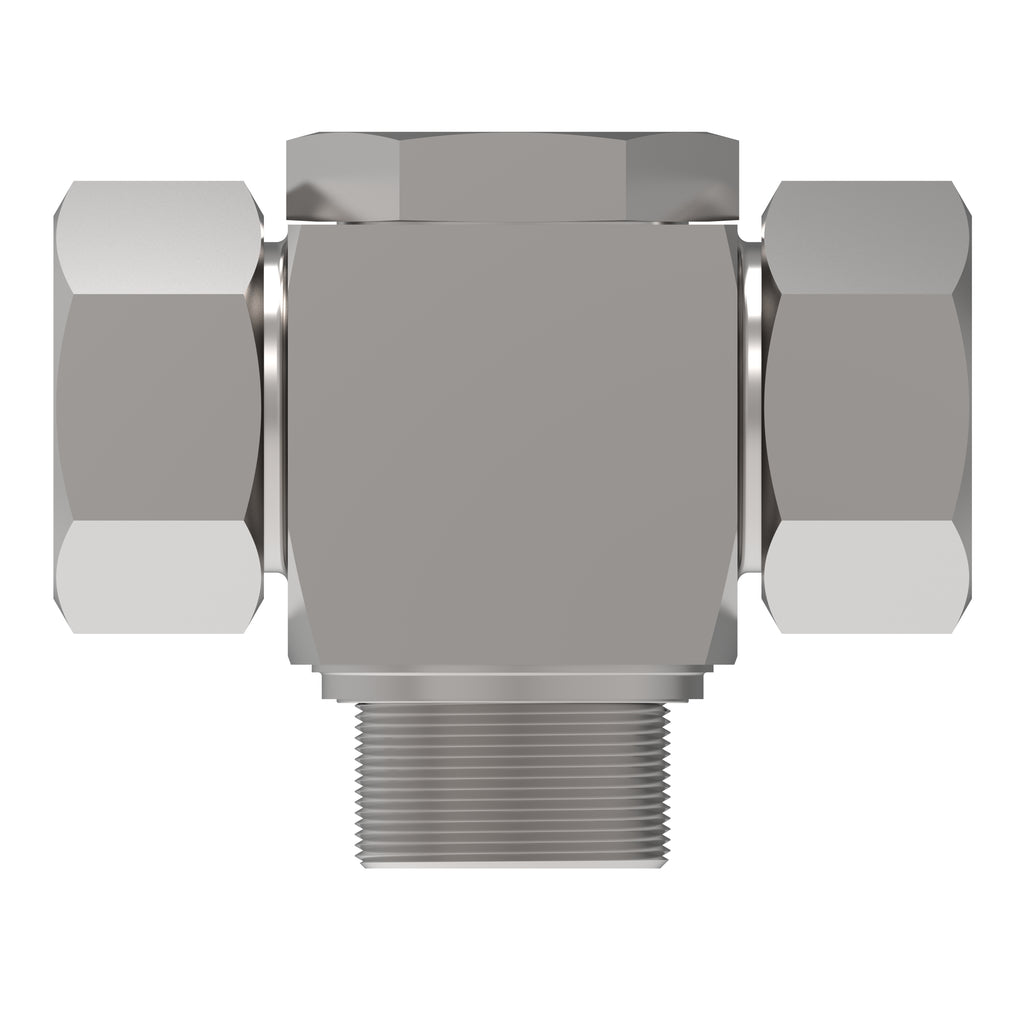

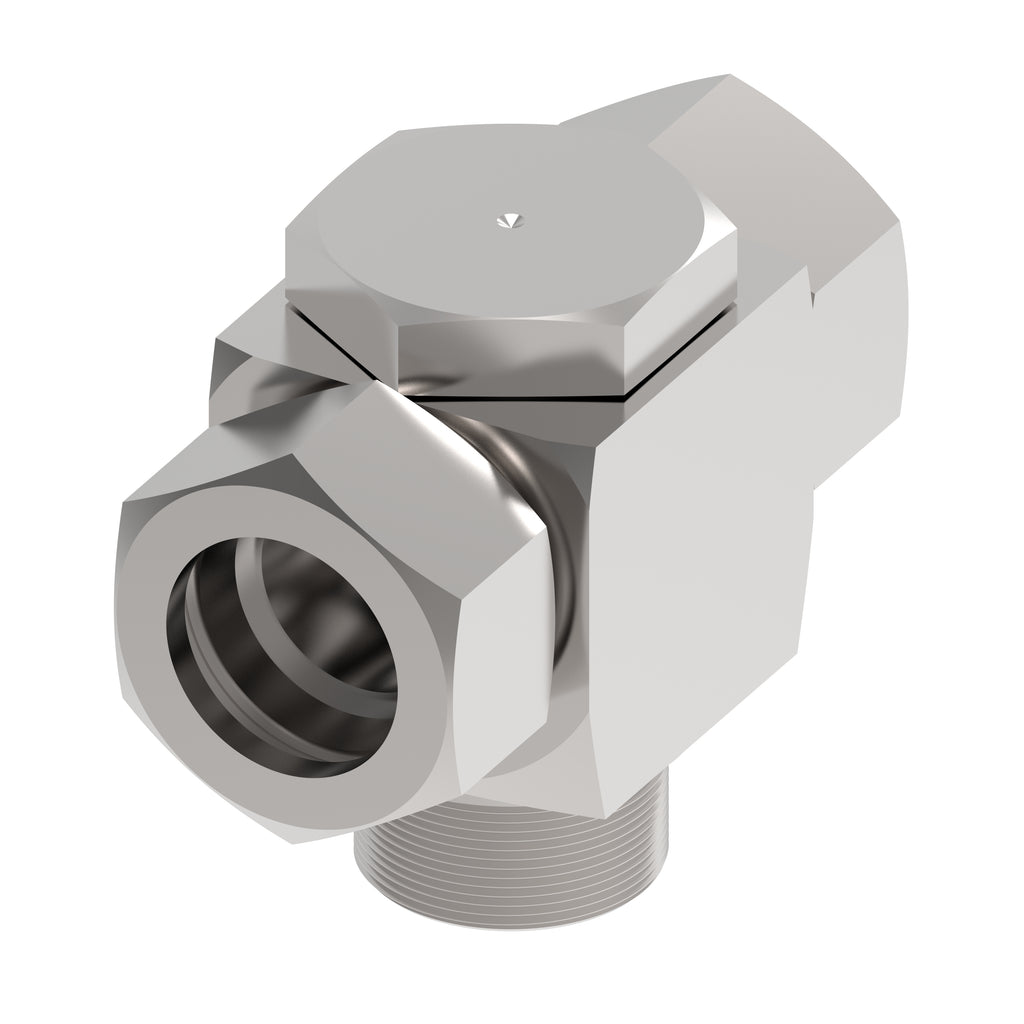

BANJO, P-RSTV 28 LM-WD A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL623381
€59,61
Technische Daten
| Legacy part number | WAL623381 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | P-RSTV 28 LM-WD A4GS |
| Product material | Carbon steel |
| Thread size 1 | M36x2 |
| Thread size 2 | M33x2 |
| Angle shape | Tee |
| End size 1 | 28L |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 46 |
| Hex size 2 MM | 41 |
| Complete connector | Yes |
| End size 3 | 28L |
| End type 3 | 24 deg. tube port light duty |
| Product serial name | P-RSTV … M-WD |
| Seal material | Nitrile (NBR) |
| Thread size 3 | M36x2 |
| Tube outside diameter 1 MM | 28 |
| Tube outside diameter 2 MM | 28 |
| Finish plating | Guardian Seal |
| Product height in | 3.032 |
| Product width in | 1.811 |
| Product width mm | 46 |
| Product height mm | 77 |
| Product length mm | 96 |
| Product length in | 3.78 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL623381_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
