WAL623384
€13,62
Zu Produktinformationen springen
Auf Lager
WAL623384

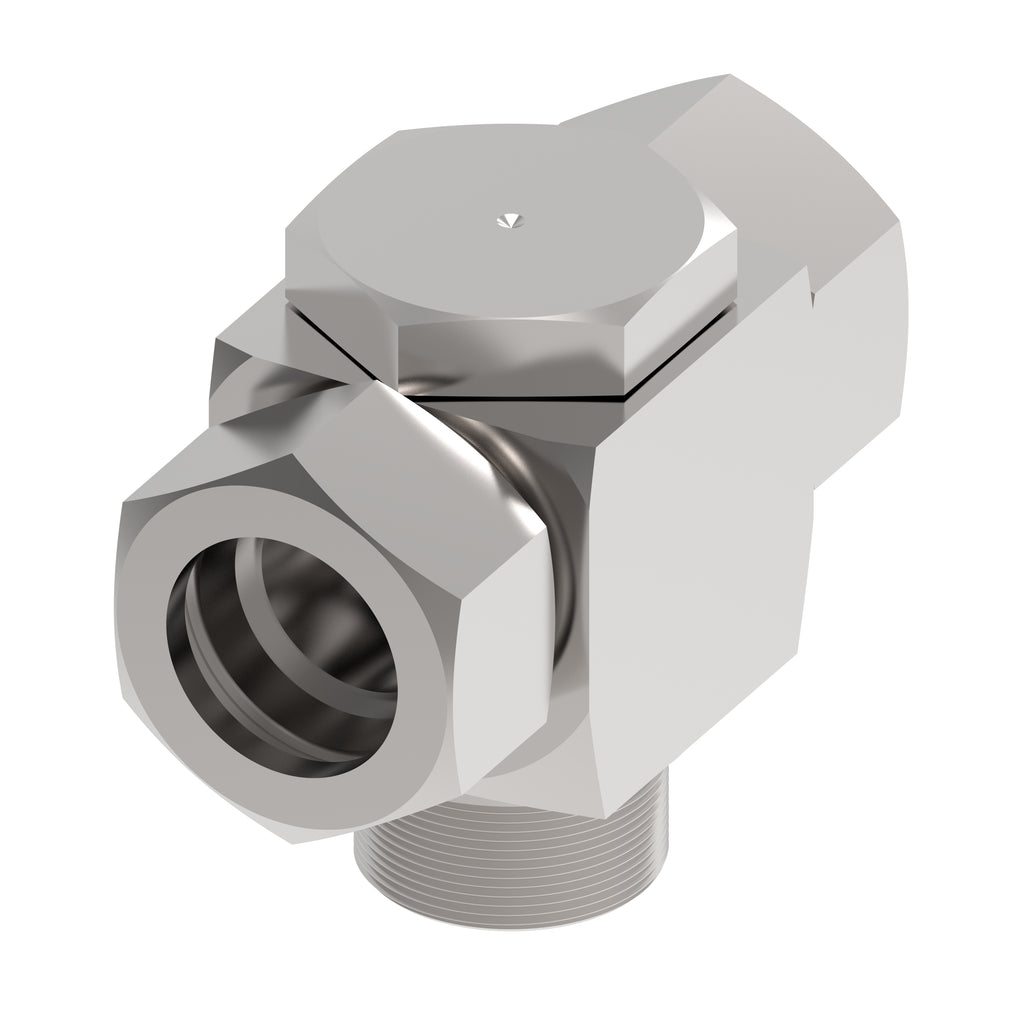

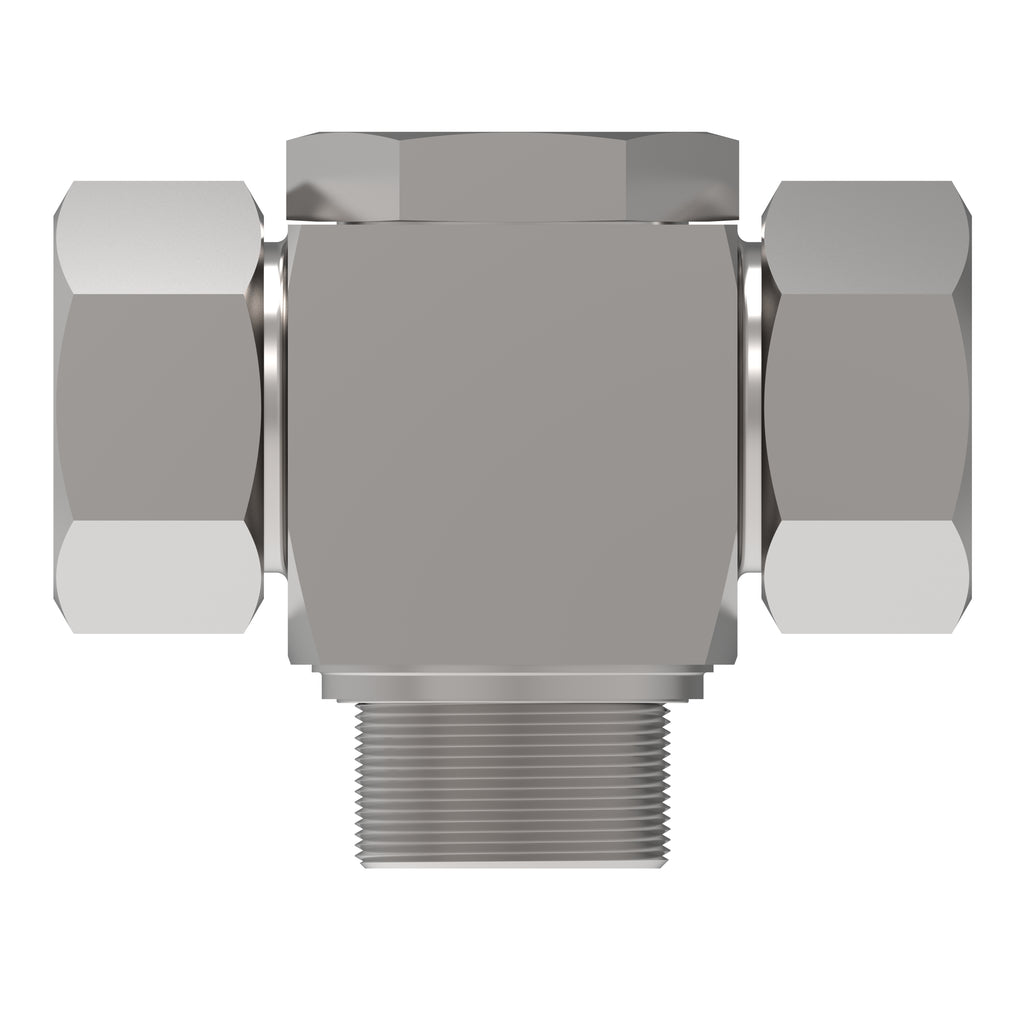

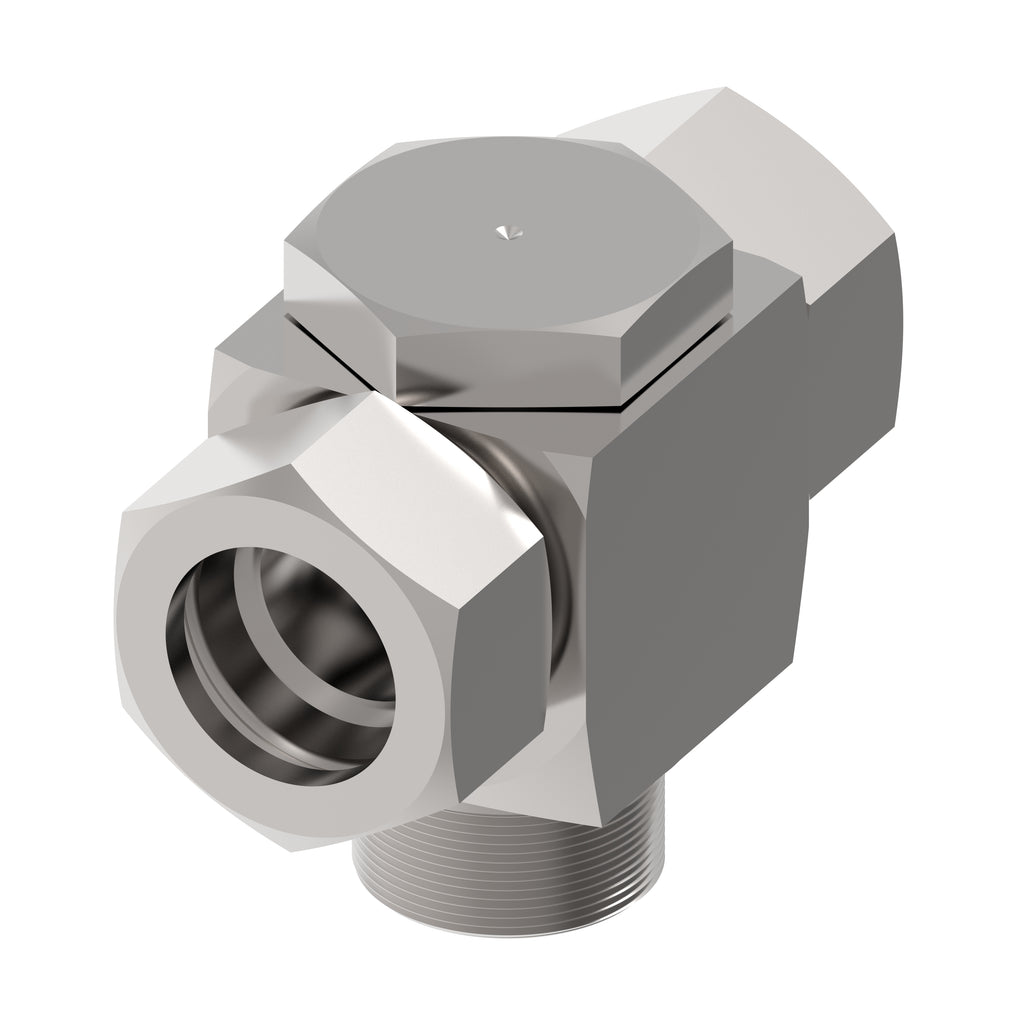

BANJO, P-RSTV 6 SM-WD A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL623384
€16,21
Technische Daten
| Legacy part number | WAL623384 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | P-RSTV 6 SM-WD A4GS |
| Product material | Carbon steel |
| Thread size 1 | M14x1.5 |
| Thread size 2 | M12x1.5 |
| Angle shape | Tee |
| End size 1 | 6S |
| End type 1 | 24 deg. tube port heavy duty |
| Hex size 1 MM | 19 |
| Hex size 2 MM | 19 |
| Complete connector | Yes |
| End size 3 | 6S |
| End type 3 | 24 deg. tube port heavy duty |
| Product serial name | P-RSTV … M-WD |
| Seal material | Nitrile (NBR) |
| Thread size 3 | M14x1.5 |
| Tube outside diameter 1 MM | 6 |
| Tube outside diameter 2 MM | 6 |
| Finish plating | Guardian Seal |
| Product height in | 1.299 |
| Product width in | 0.748 |
| Product width mm | 19 |
| Product height mm | 33 |
| Product length mm | 61 |
| Product length in | 2.402 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL623384_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
