WAL623394
€108,08
Zu Produktinformationen springen
Auf Lager
WAL623394

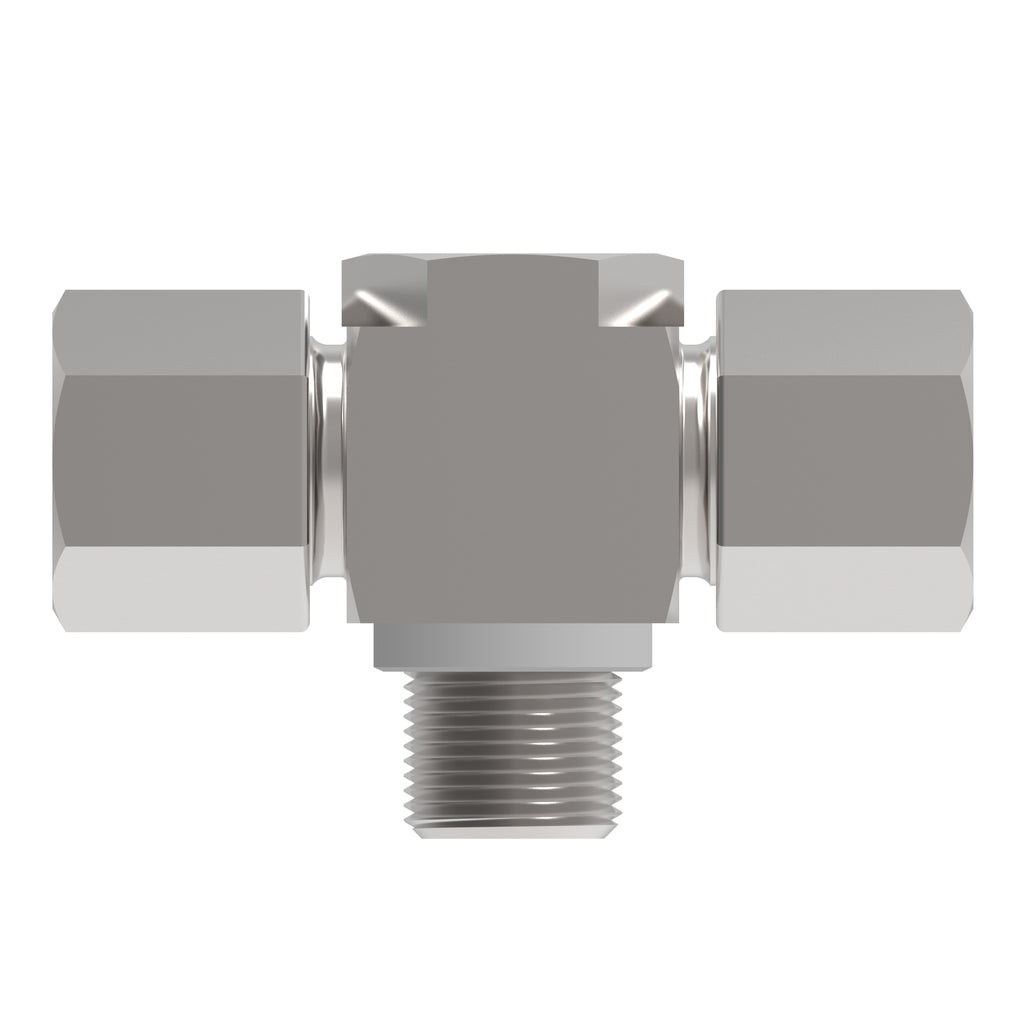

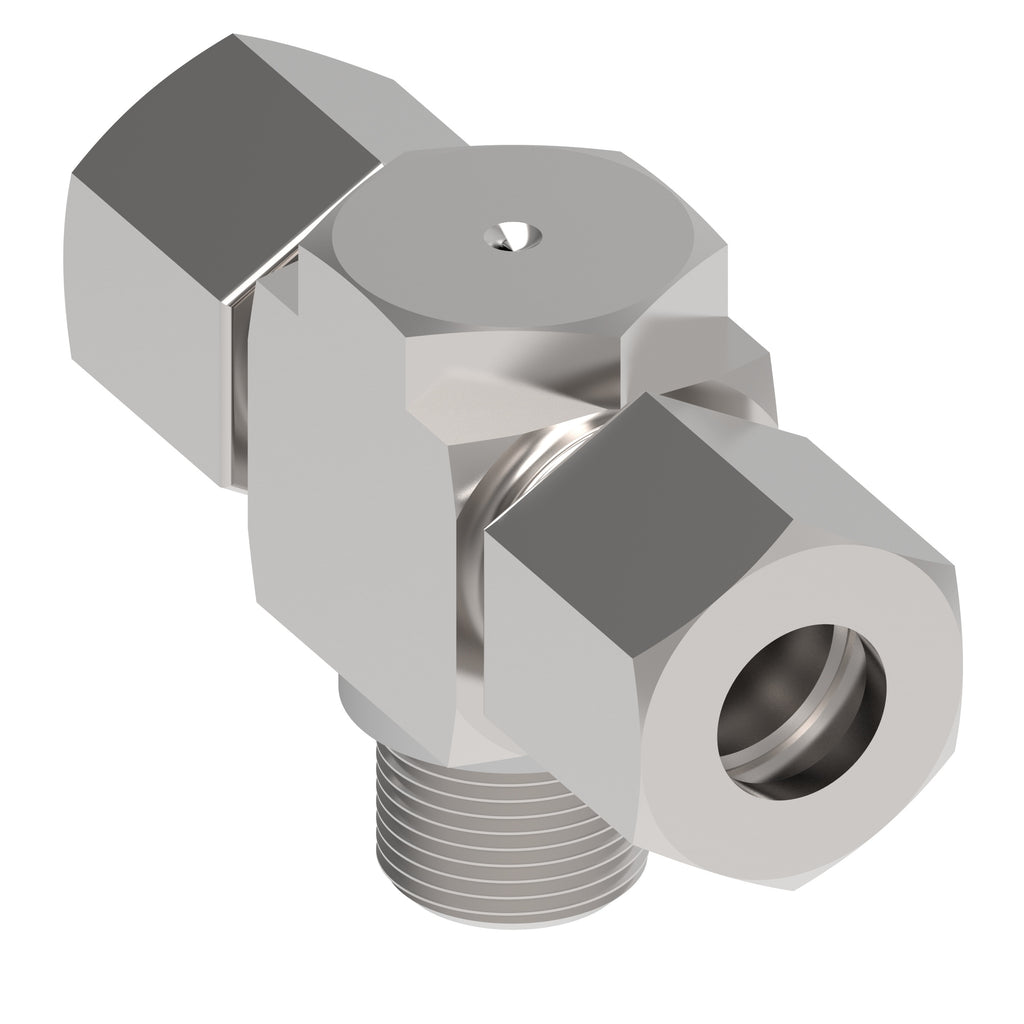

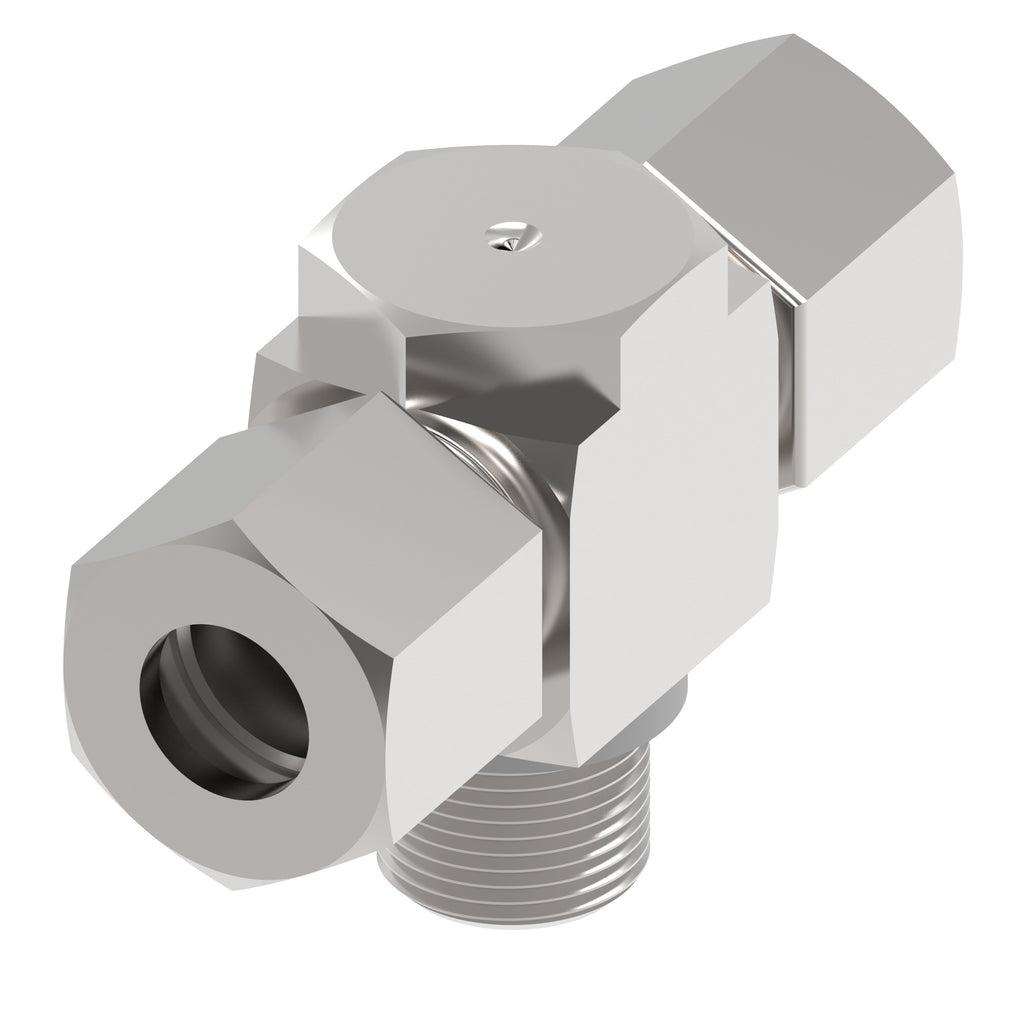

BANJO, P-RSTV 42 LR-WD A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL623394
€128,62
Technische Daten
| Legacy part number | WAL623394 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | P-RSTV 42 LR-WD A4GS |
| Product material | Carbon steel |
| Thread size 1 | M52x2 |
| Thread size 2 | G 1 1/2 |
| Angle shape | Tee |
| End size 1 | 6L |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 65 |
| Hex size 2 MM | 55 |
| Working pressure bar | 250 |
| Complete connector | Yes |
| End size 3 | 42L |
| End type 3 | 24 deg. tube port light duty |
| Product serial name | P-RSTV … R-WD |
| Seal material | Nitrile (NBR) |
| Thread size 3 | M52x2 |
| Tube outside diameter 1 MM | 42 |
| Tube outside diameter 2 MM | 42 |
| Finish plating | Guardian Seal |
| Product height in | 4.016 |
| Product width in | 2.559 |
| Product width mm | 65 |
| Product height mm | 102 |
| Product length mm | 125 |
| Product length in | 4.921 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL623394_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
