WAL624045
€16,66
Zu Produktinformationen springen
Auf Lager
WAL624045

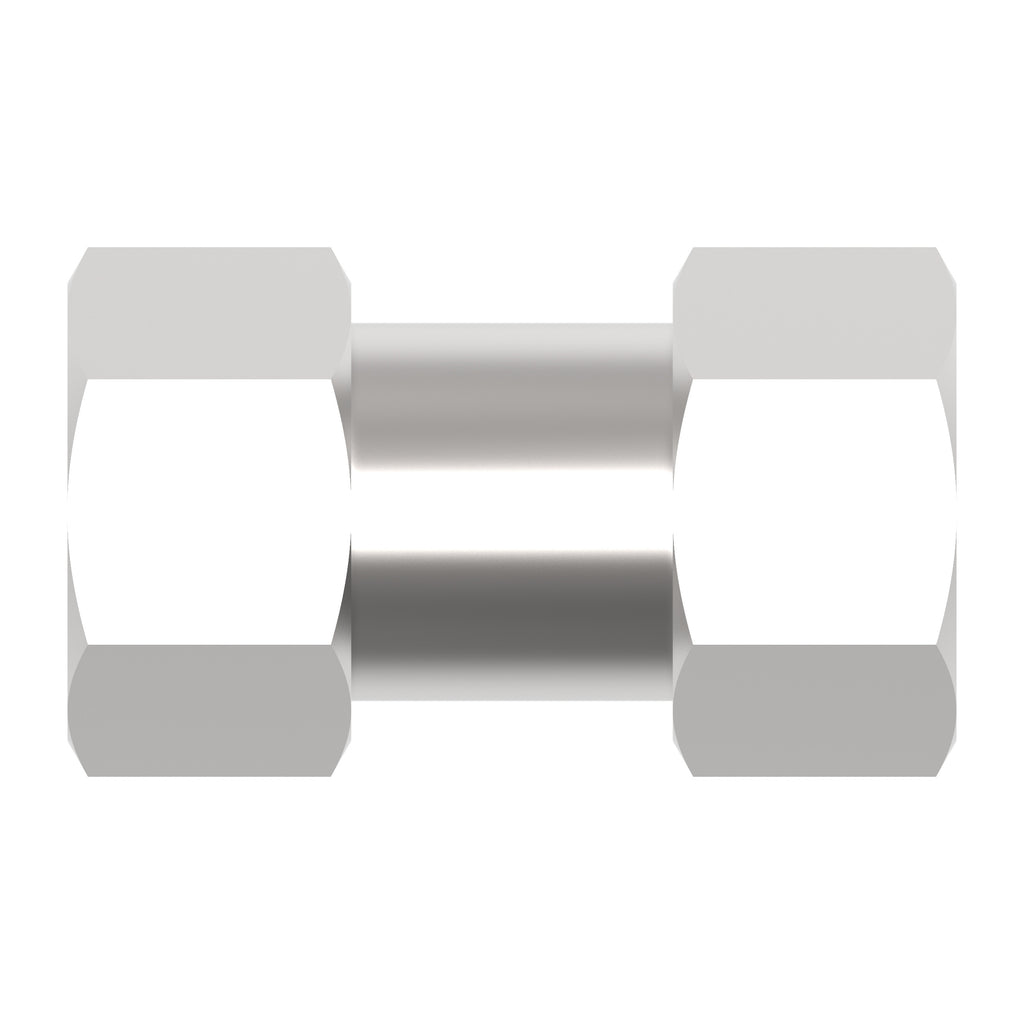

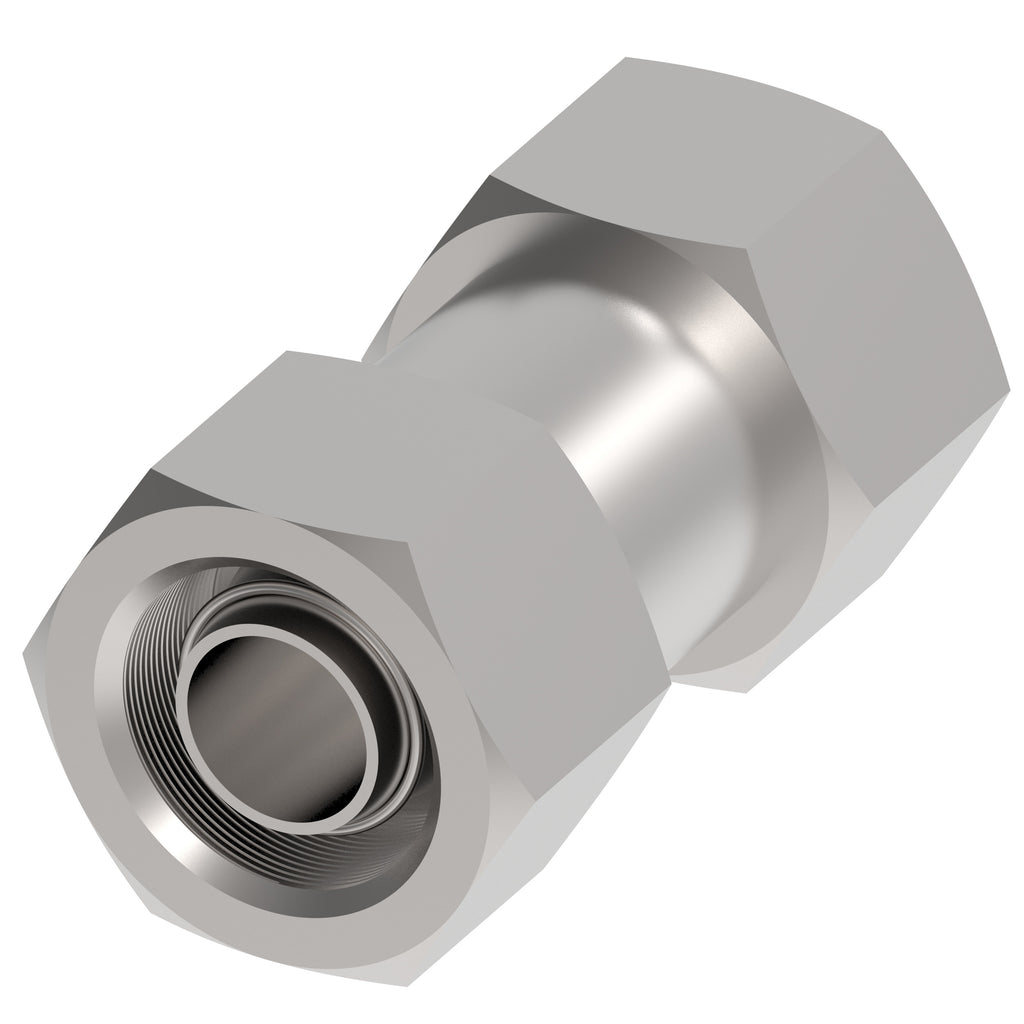

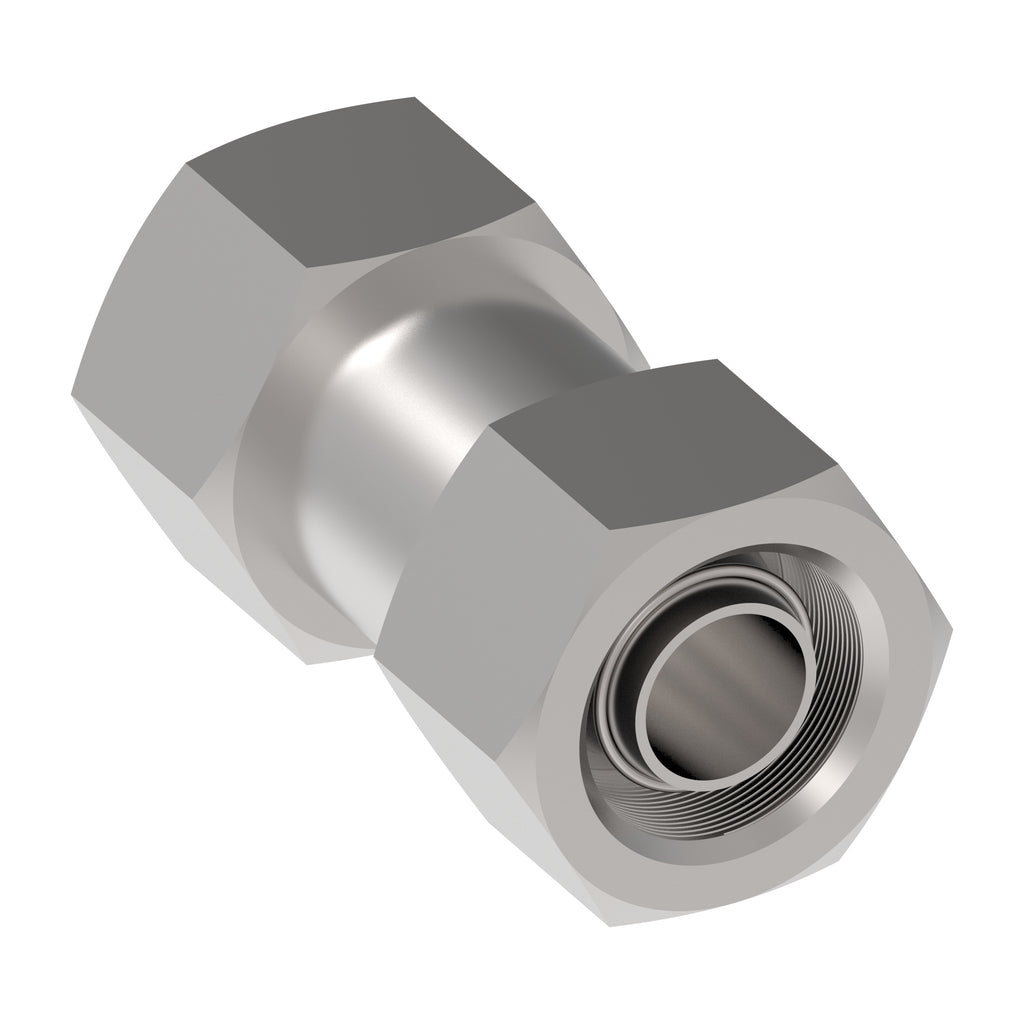

TUBE FTG, SNV 25/16 S VI A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL624045
€19,83
Technische Daten
| Legacy part number | WAL624045 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | SNV 25/16 S VI A4GS |
| Product material | Carbon steel |
| Thread size 1 | M36x2 |
| Thread size 2 | M36x2 |
| Angle shape | Straight |
| End size 1 | 25S |
| End size 2 | 16S |
| End type 2 | 24 deg. DKO swivel heavy duty |
| End type 1 | 24 deg. DKO swivel heavy duty |
| Hex size 1 MM | 46 |
| Hex size 2 MM | 30 |
| Working temperature min C | -25 |
| Working pressure bar | 420 |
| Complete connector | No |
| Product serial name | SNV …/… S |
| Seal material | Fluorocarbon (FKM) |
| Tube outside diameter 1 MM | 25 |
| Tube outside diameter 2 MM | 25 |
| Finish plating | Guardian Seal |
| Product height in | 1.811 |
| Product width in | 1.811 |
| Product width mm | 46 |
| Product height mm | 46 |
| Product length mm | 112.5 |
| Product length in | 4.429 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
