WAL624315
€35,86
Zu Produktinformationen springen
Auf Lager
WAL624315

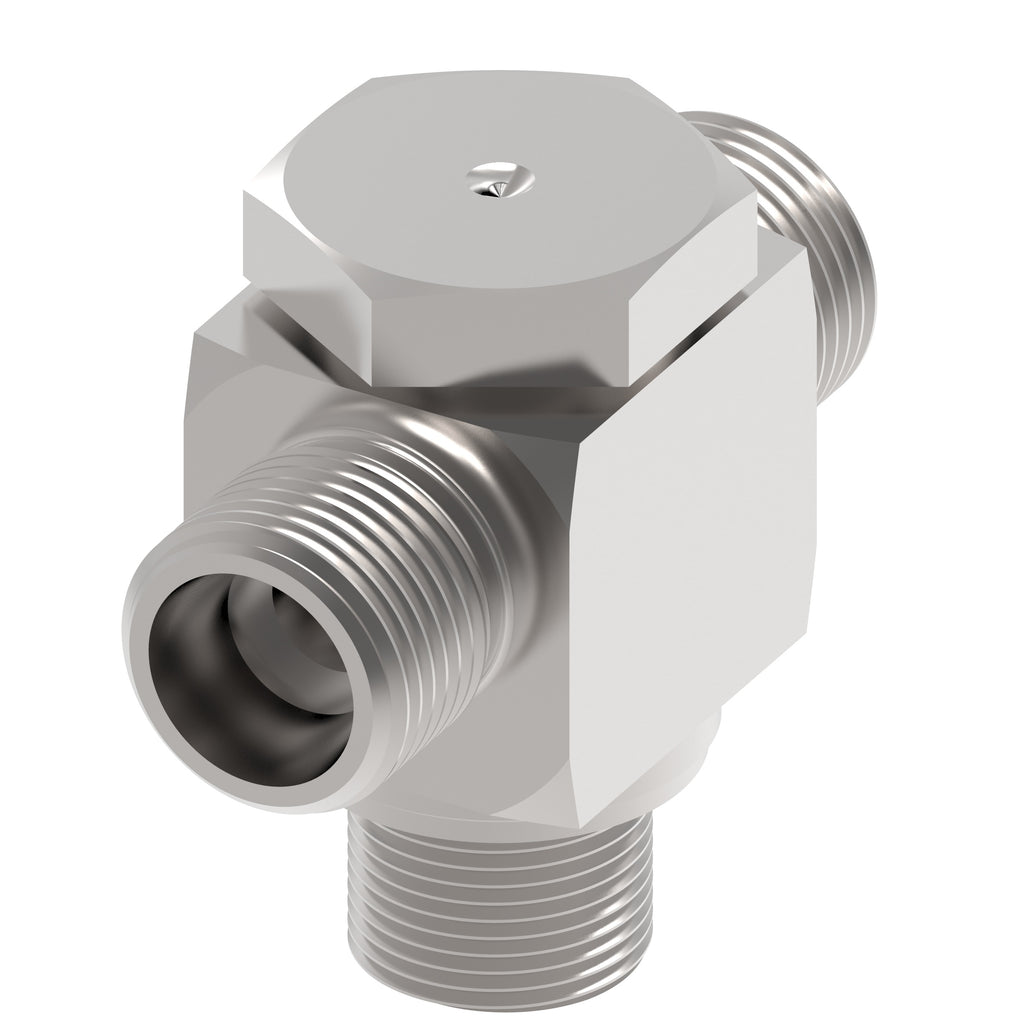

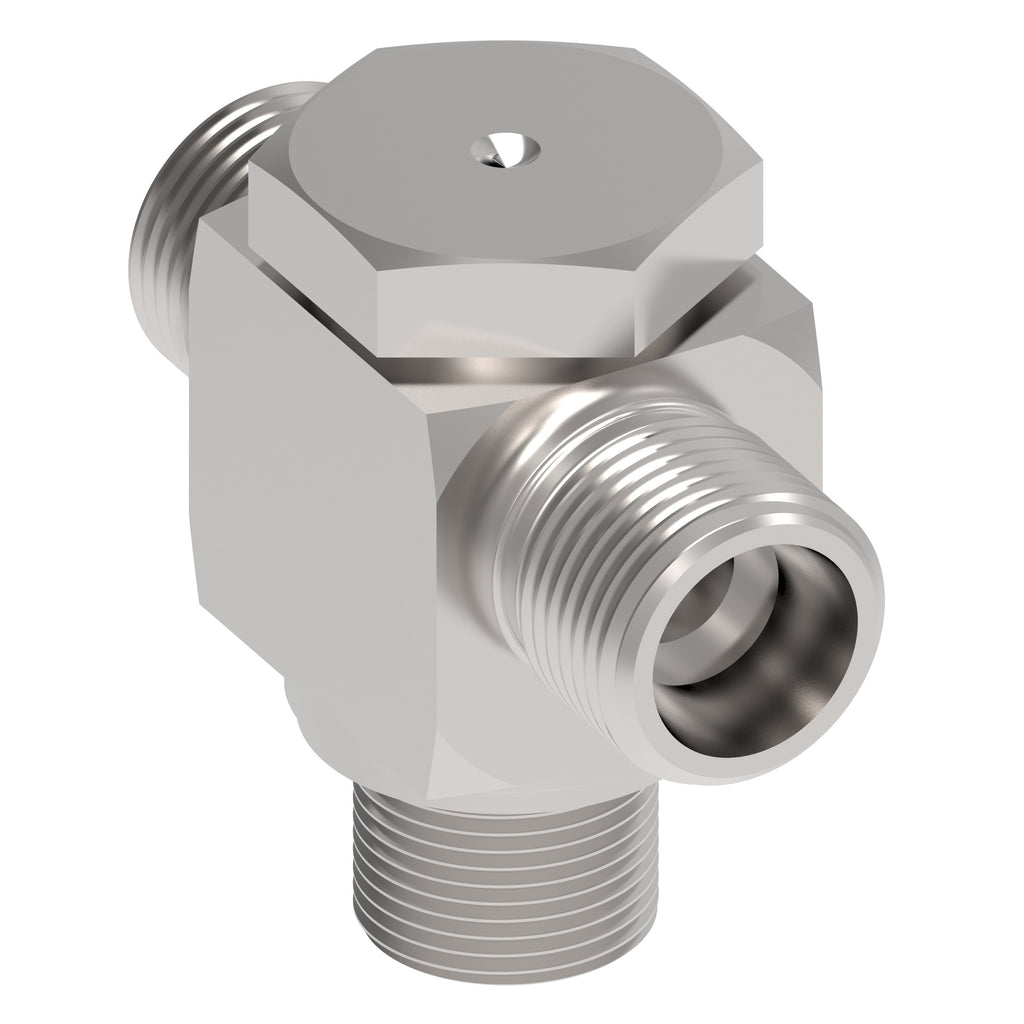

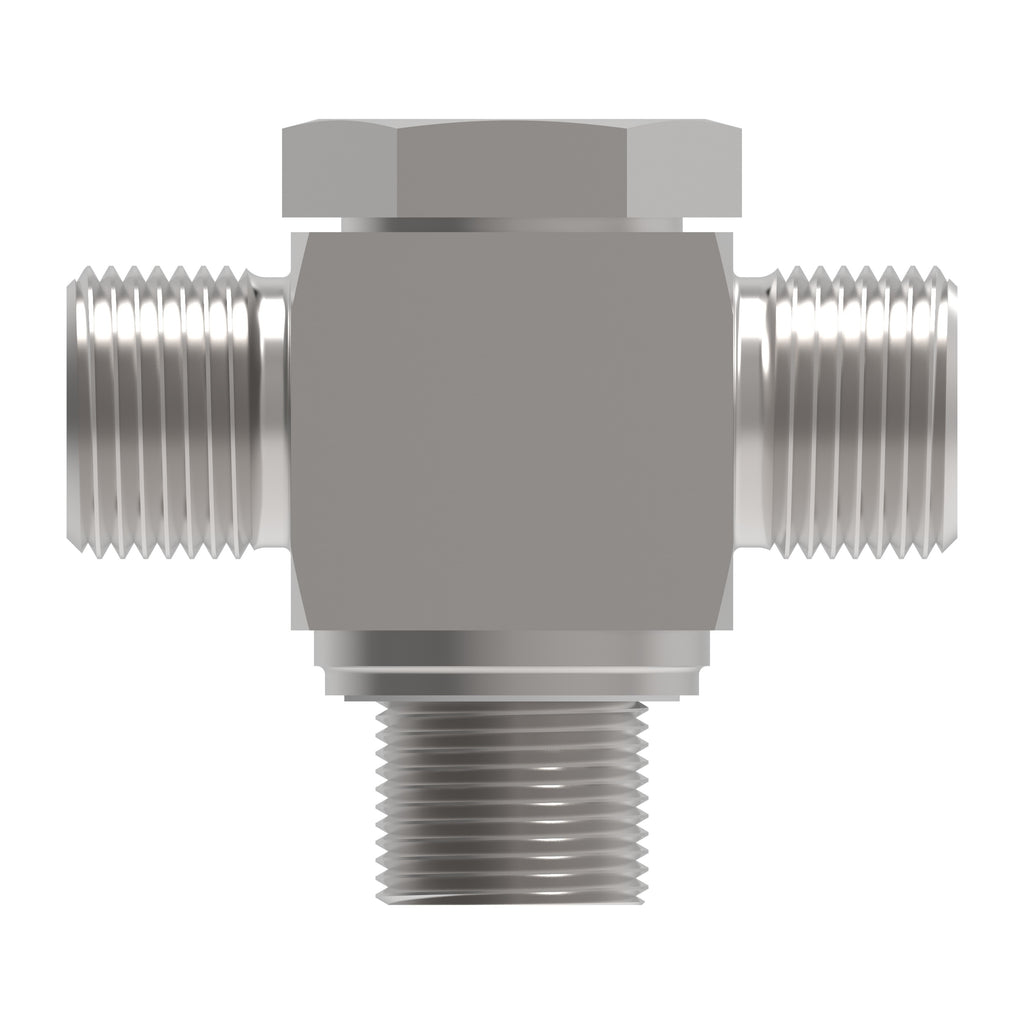

BANJO, RSTS 22 LR-WD VI A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL624315
€42,67
Technische Daten
| Legacy part number | WAL624315 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | RSTS 22 LR-WD VI A4GS |
| Product material | Carbon steel |
| Thread size 1 | M30x2 |
| Thread size 2 | G 3/4 |
| Angle shape | Tee |
| End size 1 | 22L |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 36 |
| Hex size 2 MM | 32 |
| Working temperature max C | 120 |
| Working temperature min C | -25 |
| Working pressure bar | 250 |
| Complete connector | No |
| End size 3 | 22L |
| End type 3 | 24 deg. tube port light duty |
| Product serial name | RSTS … R-WD |
| Seal material | Fluorocarbon (FKM) |
| Thread size 3 | M30x2 |
| Tube outside diameter 1 MM | 22 |
| Tube outside diameter 2 MM | 22 |
| Finish plating | Guardian Seal |
| Product height in | 2.52 |
| Product width in | 1.417 |
| Product width mm | 36 |
| Product height mm | 64 |
| Product length mm | 69 |
| Product length in | 2.717 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- WAL624315_PUB_STP
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
