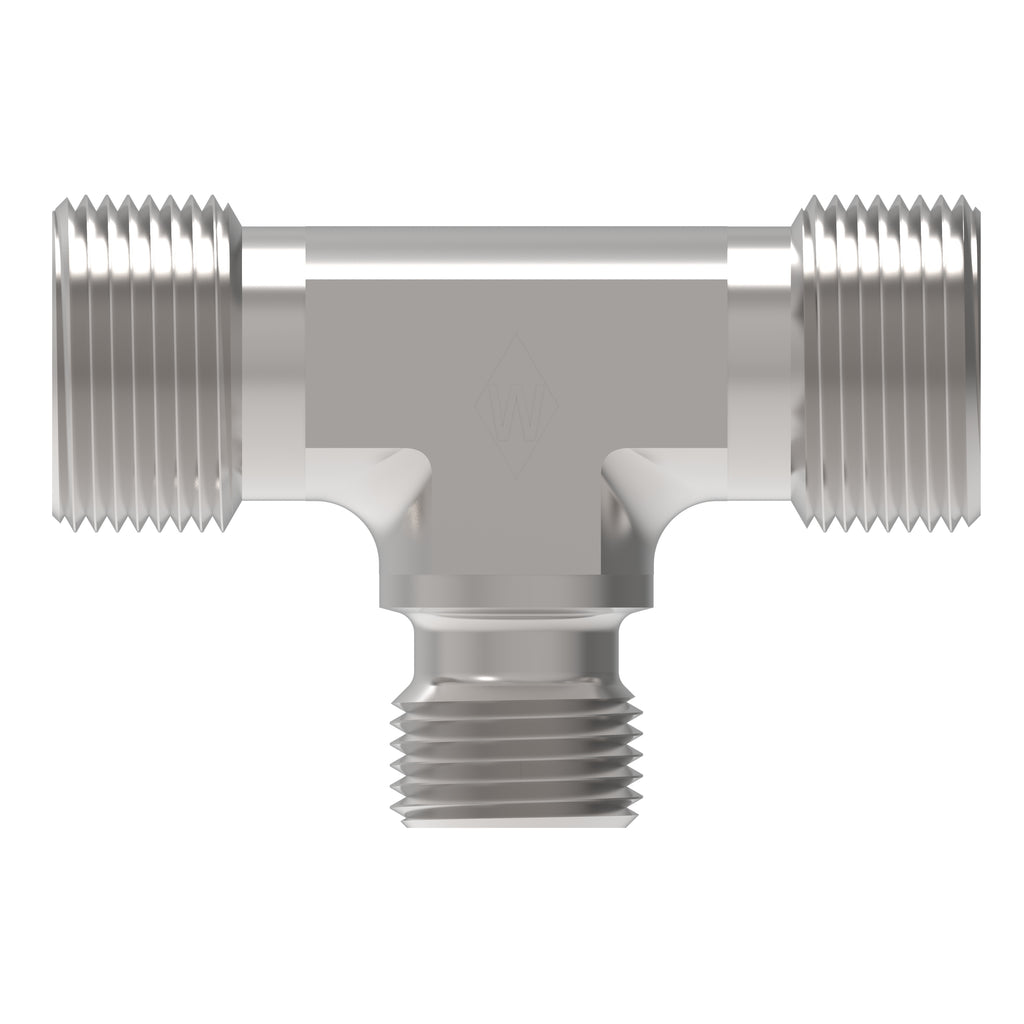

Danfoss WAL624322 Produktbild

WAL624322

€64,40
Zu Produktinformationen springen
Danfoss WAL624322 Produktbild
1/3

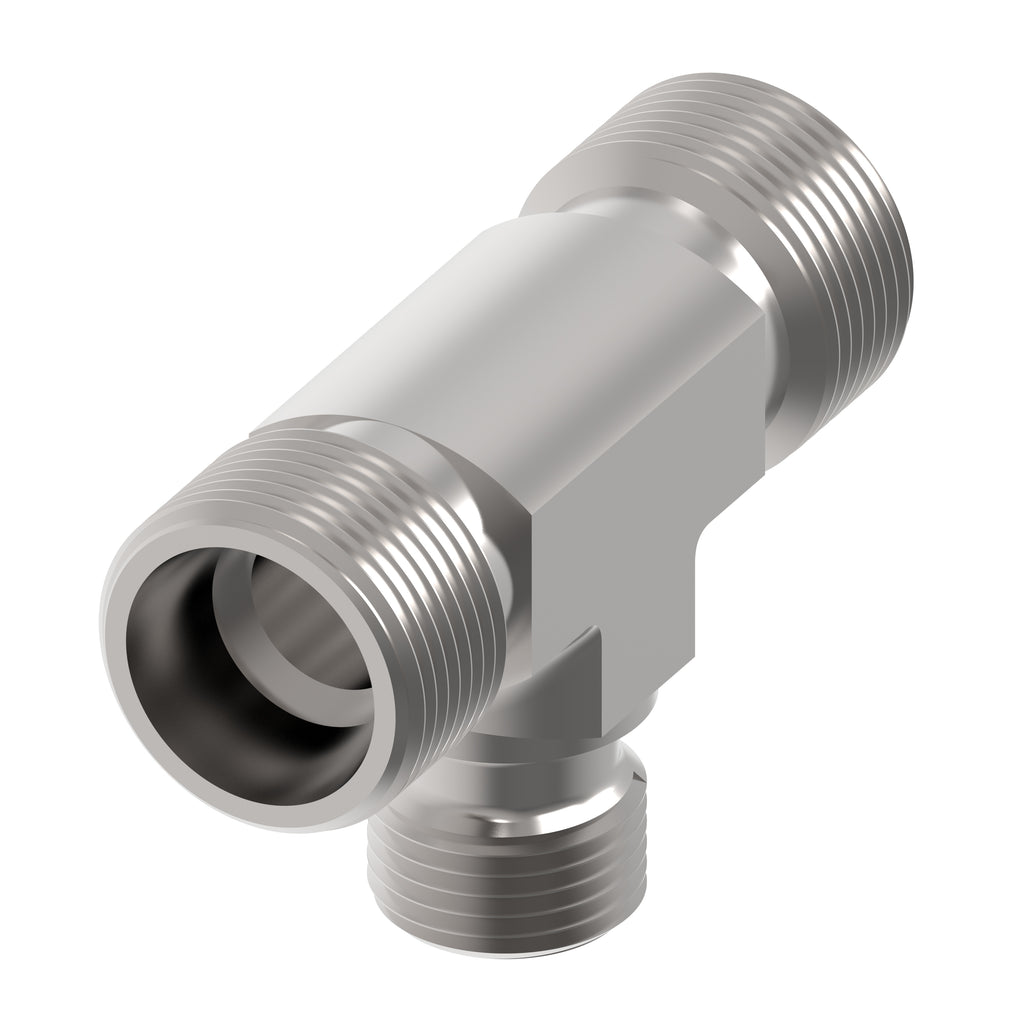

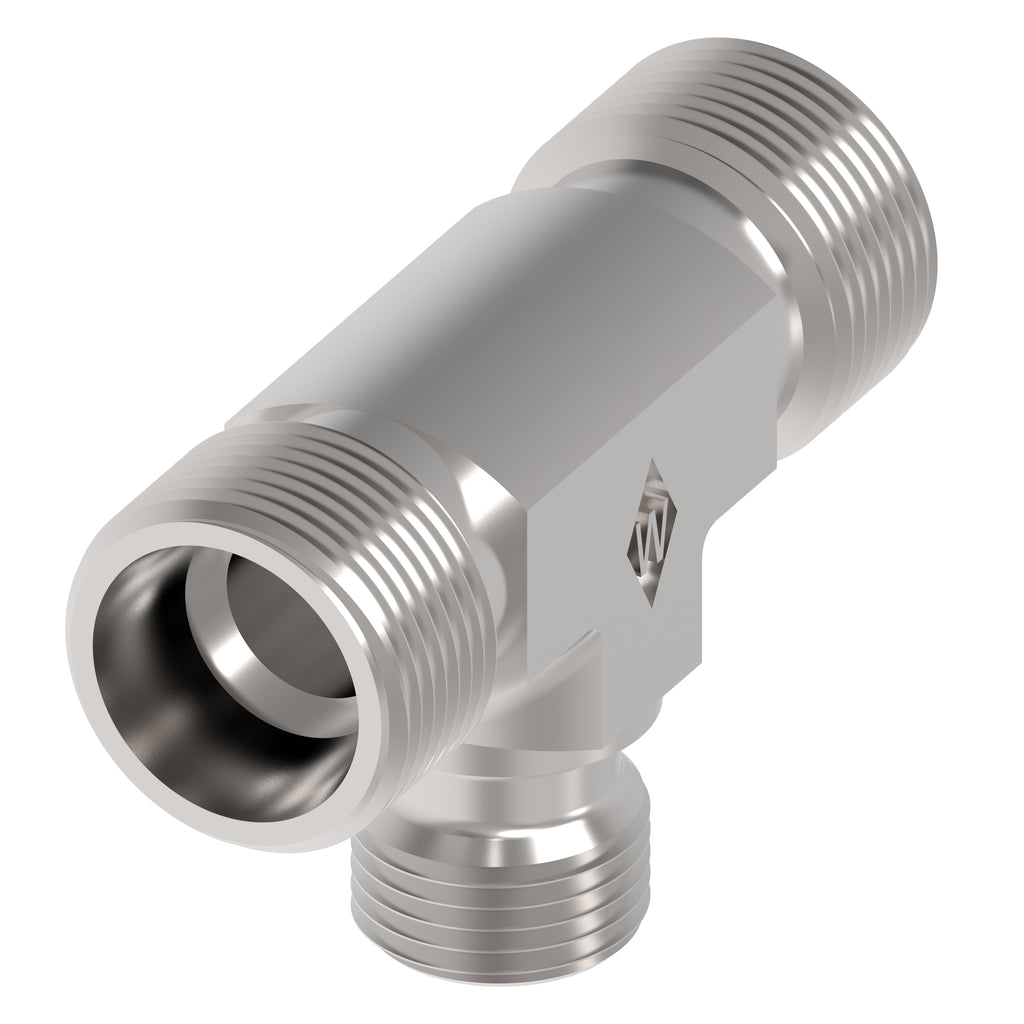

  • Danfoss WAL624322 Produktbild
  • Danfoss WAL624322 Produktbild
  • Danfoss WAL624322 Produktbild
WAL624322

WAL624322

TUBE FTG, TS 30/25/30 S A4GS

Lieferzeit: ca. 2 Wochen

Danfoss Artikelnummer: WAL624322

€76,64
Auf Lager

Technische Daten

Legacy part number WAL624322
Sub brand Waltech
Brand Danfoss
Item type Tube to tube connector
Model Code 1 TS 30/25/30 S A4GS
Product material Carbon steel
Thread size 1 M42x2
Thread size 2 M36x2
Angle shape Tee
End size 1 30S
End size 2 25S
End type 2 24 deg. tube port heavy duty
End type 1 24 deg. tube port heavy duty
Hex size 1 MM 41
Hex size 2 MM 69.5
Complete connector No
End size 3 30S
End type 3 24 deg. tube port heavy duty
Product serial name TS …/…/…
Thread size 3 M42x2
Tube outside diameter 1 MM 30
Tube outside diameter 2 MM 30
Tube outside diameter 3 MM 25
Finish plating Guardian Seal
Product height in 1.929
Product width in 1.614
Product width mm 41
Product height mm 49
Product length mm 98
Product length in 3.858
