WAL624530
€9,56
Zu Produktinformationen springen
Auf Lager
WAL624530

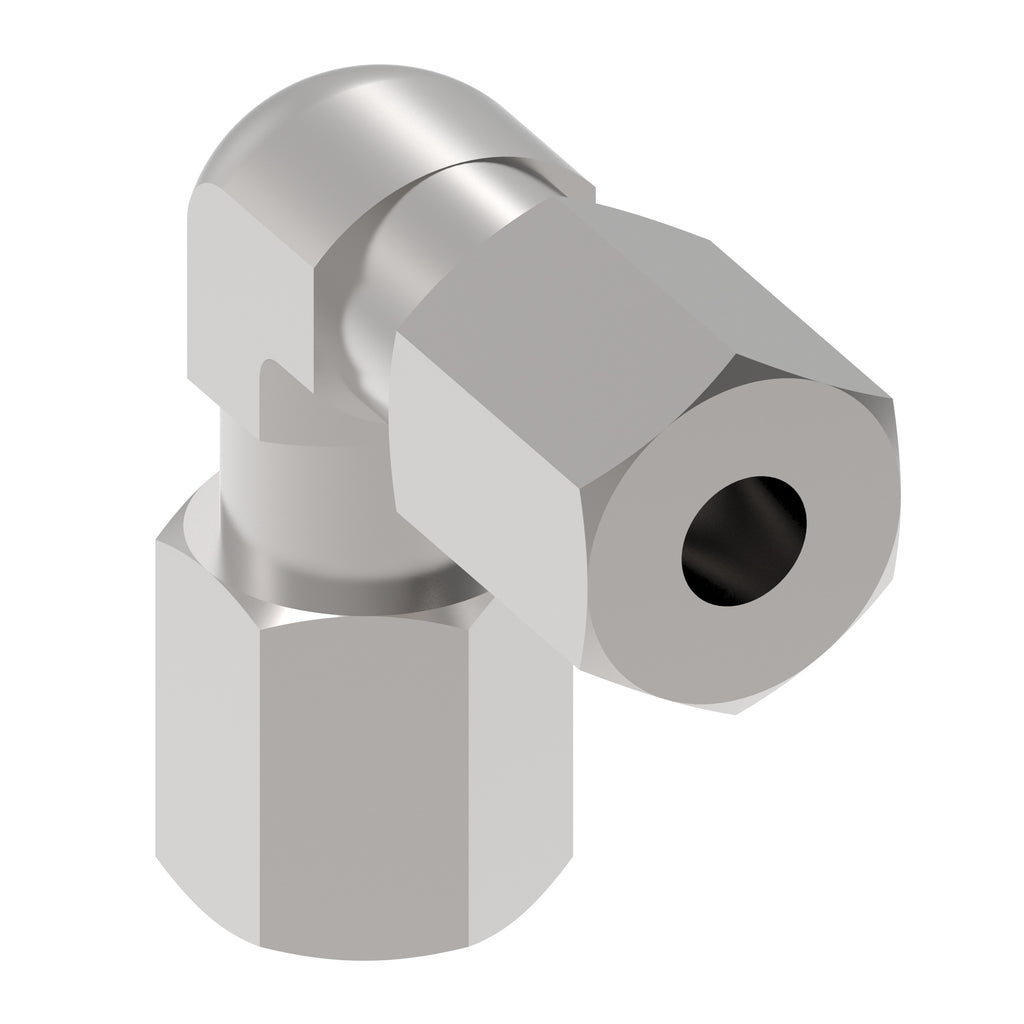

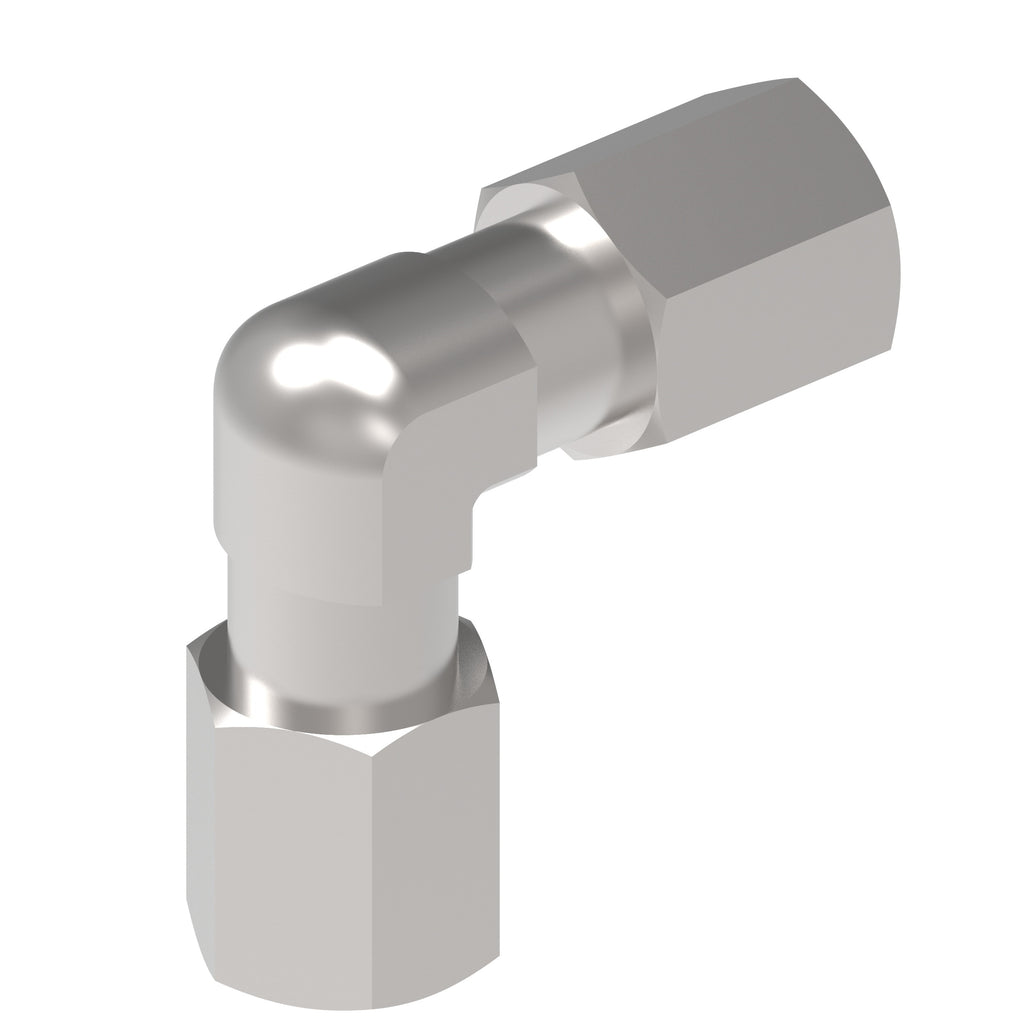

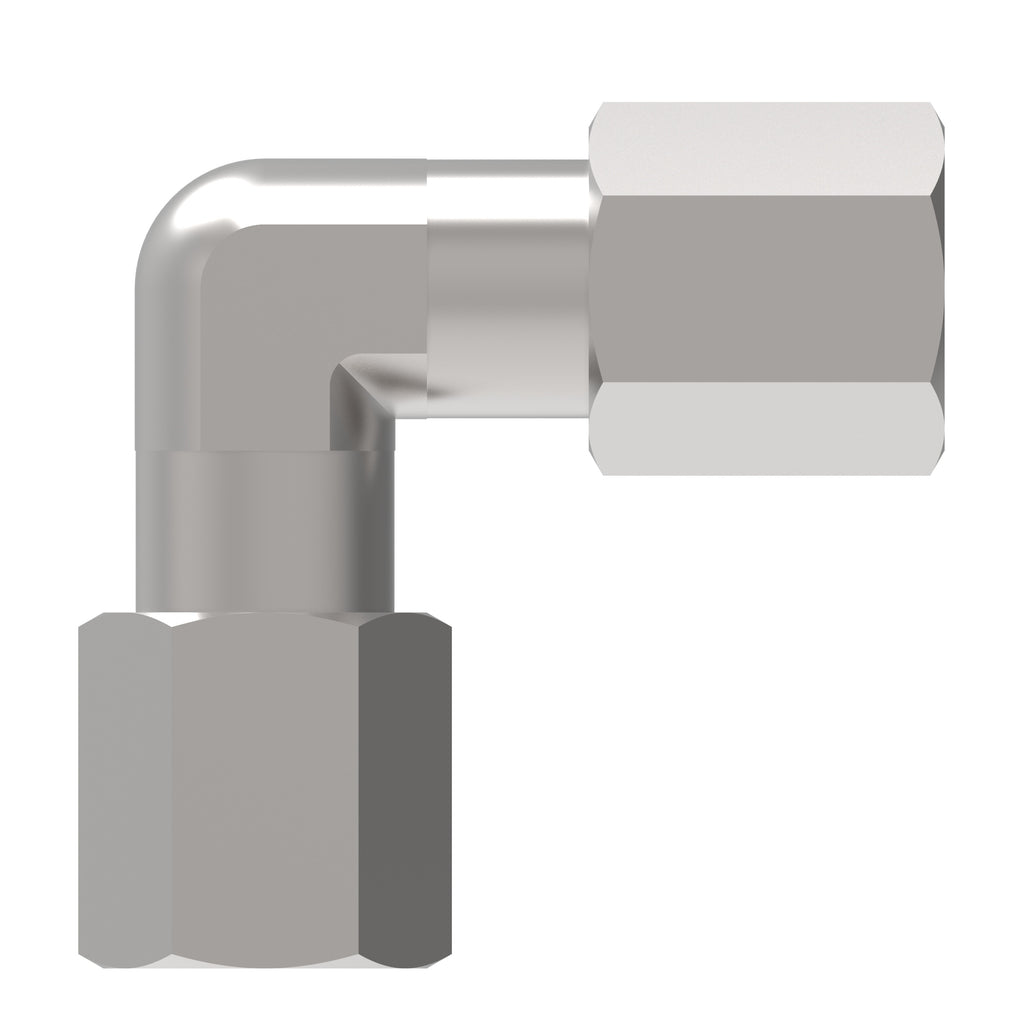

TUBE FTG, P-WV 10 L-P A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL624530
€11,38
Technische Daten
| Legacy part number | WAL624530 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Tube to tube connector |
| Model Code 1 | P-WV 10 L-P A4GS |
| Product material | Carbon steel |
| Thread size 1 | M16x1.5 |
| Thread size 2 | M16x1.5 |
| Angle shape | Elbow 90 degree |
| End size 1 | 10L |
| End size 2 | 10L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 12 |
| Hex size 2 MM | 14 |
| Working pressure bar | 500 |
| Complete connector | Yes |
| Hex size 3 MM | 14 |
| Product serial name | P-WV … |
| Tube outside diameter 1 MM | 10 |
| Tube outside diameter 2 MM | 10 |
| Finish plating | Guardian Seal |
| Product height in | 1.555 |
| Product width in | 0.551 |
| Product width mm | 14 |
| Product height mm | 39.5 |
| Product length mm | 39.5 |
| Product length in | 1.555 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
