WAL624858
€46,46
Zu Produktinformationen springen
Auf Lager
WAL624858

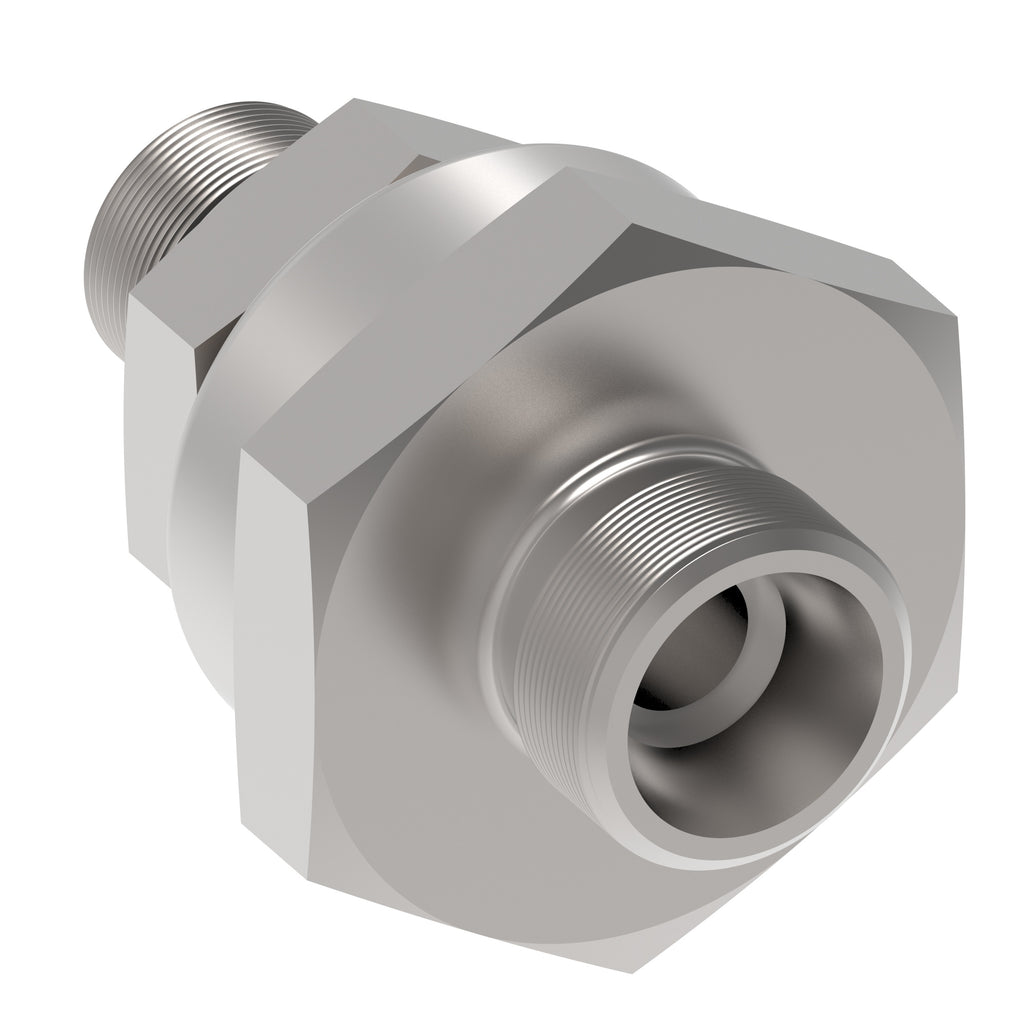

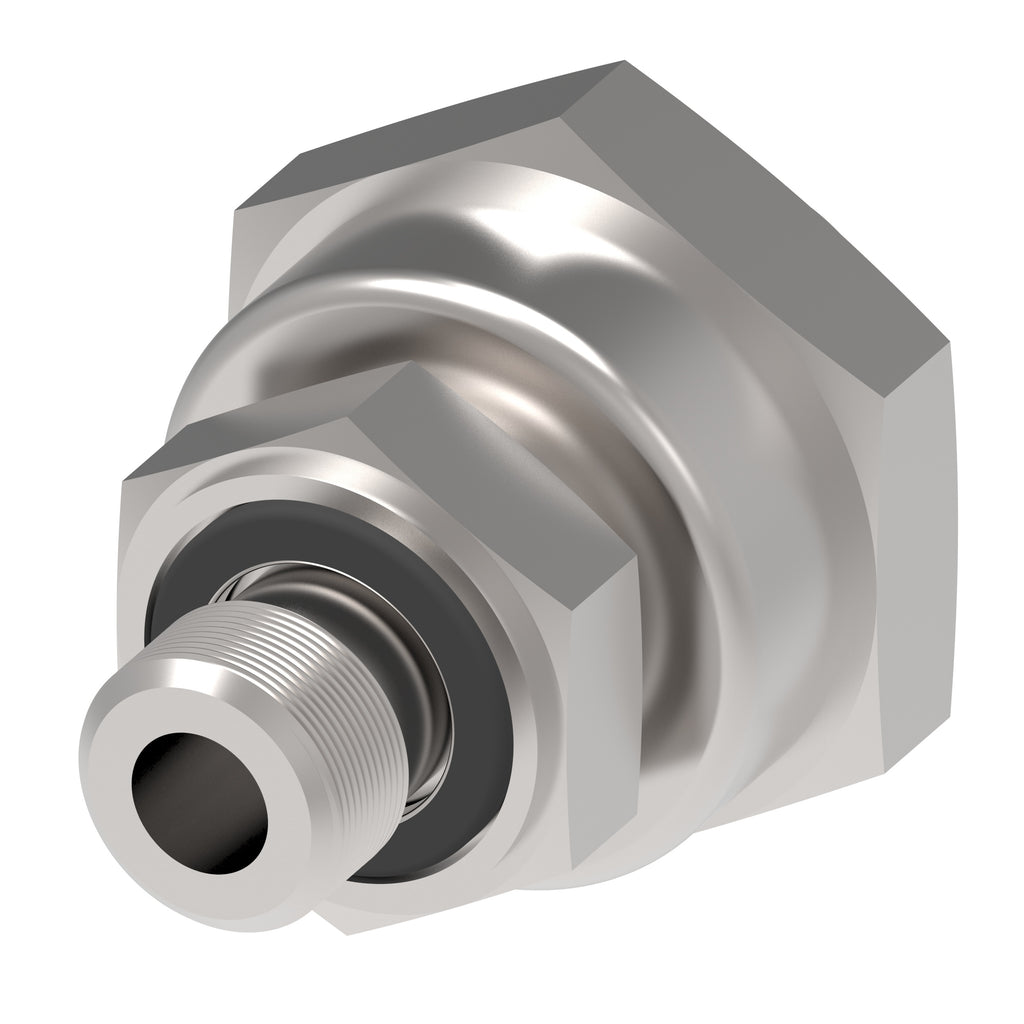

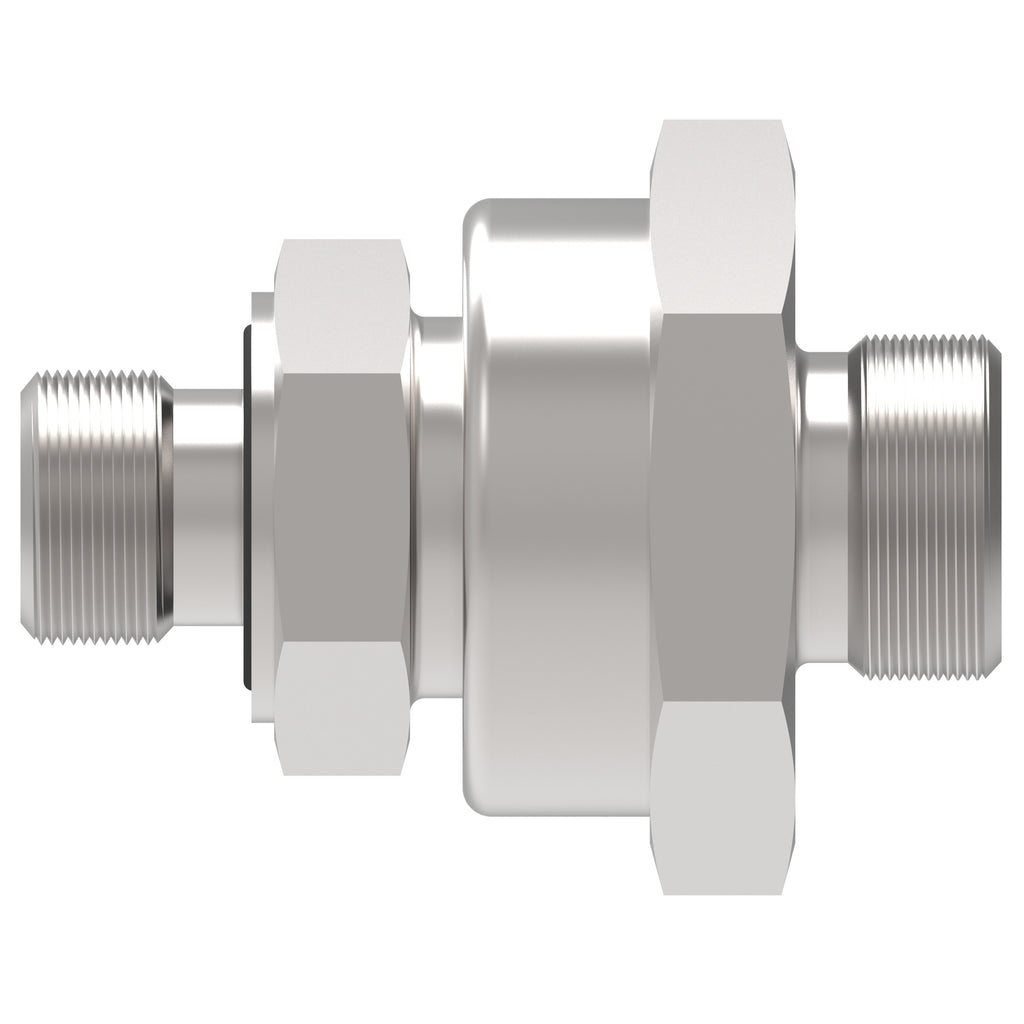

VALVE, RSZ 30 SR-WD/3,0 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL624858
€55,29
Technische Daten
| Legacy part number | WAL624858 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Non-return valve |
| Model Code 1 | RSZ 30 SR-WD/3,0 A4GS |
| Product material | Carbon steel |
| Thread size 1 | G 1 1/4 |
| Thread size 2 | M42x2 |
| Angle shape | Straight |
| End size 2 | 30S |
| End type 2 | 24 deg. tube port heavy duty |
| End type 1 | Male 1179-2 BSPP type E (S) |
| Hex size 1 MM | 50 |
| Hex size 2 MM | 55 |
| Working temperature max C | 100 |
| Working temperature min C | -20 |
| Working pressure bar | 250 |
| Complete connector | No |
| Product serial name | RSZ … R-WD |
| Seal material | Nitrile (NBR) |
| Tube outside diameter 1 MM | 30 |
| Tube outside diameter 2 MM | 30 |
| Finish plating | Guardian Seal |
| Product height in | 2.165 |
| Product width in | 2.165 |
| Product width mm | 55 |
| Product height mm | 55 |
| Product length mm | 94 |
| Product length in | 3.701 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 84813091
- Danfoss Produktseite: Produkt bei Danfoss
