WAL624917
€18,18
Zu Produktinformationen springen
Auf Lager
WAL624917

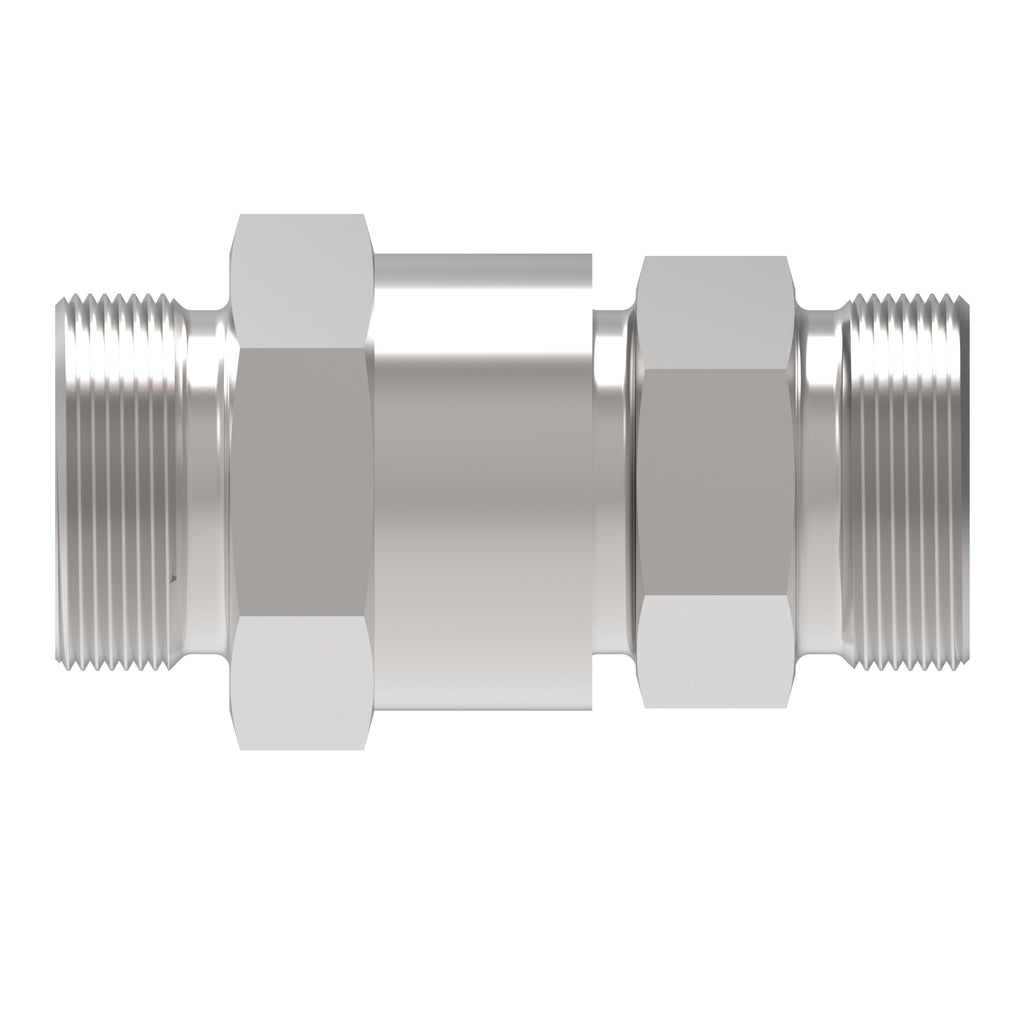

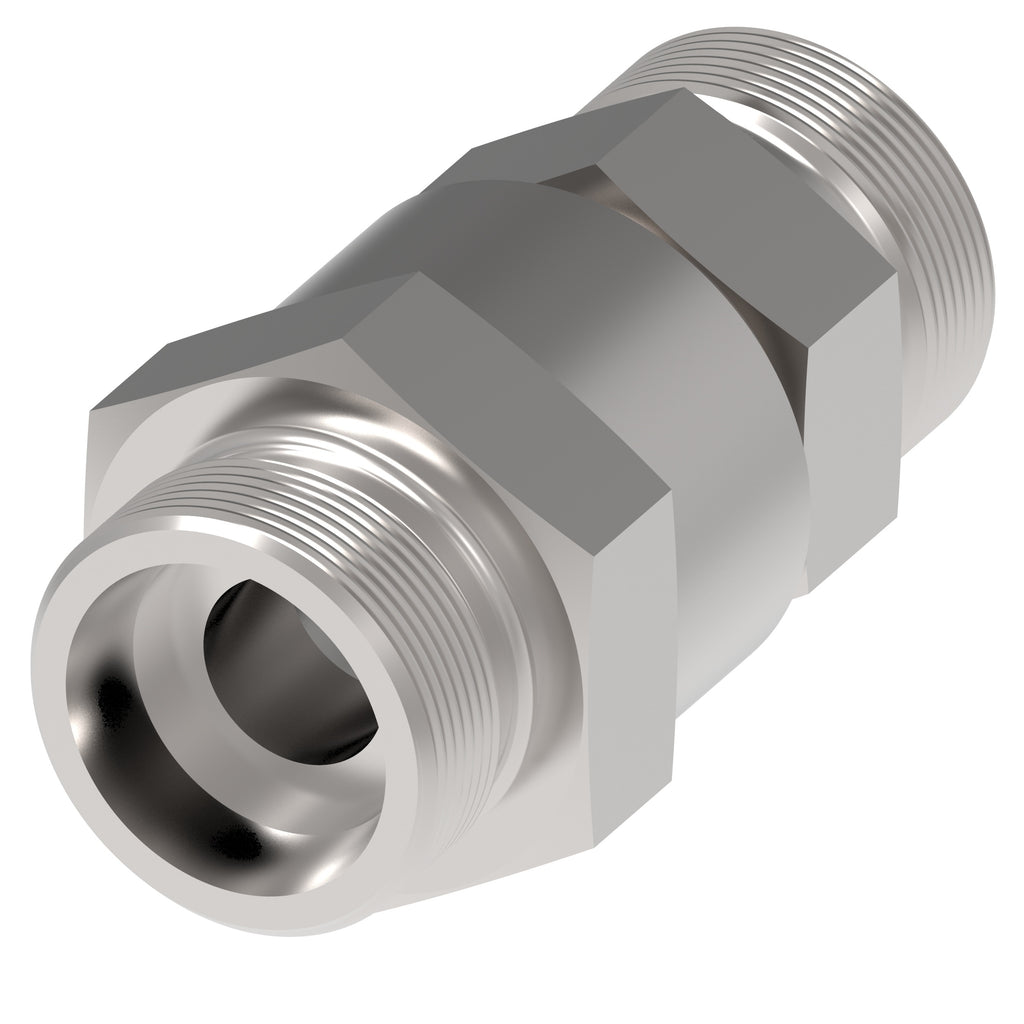

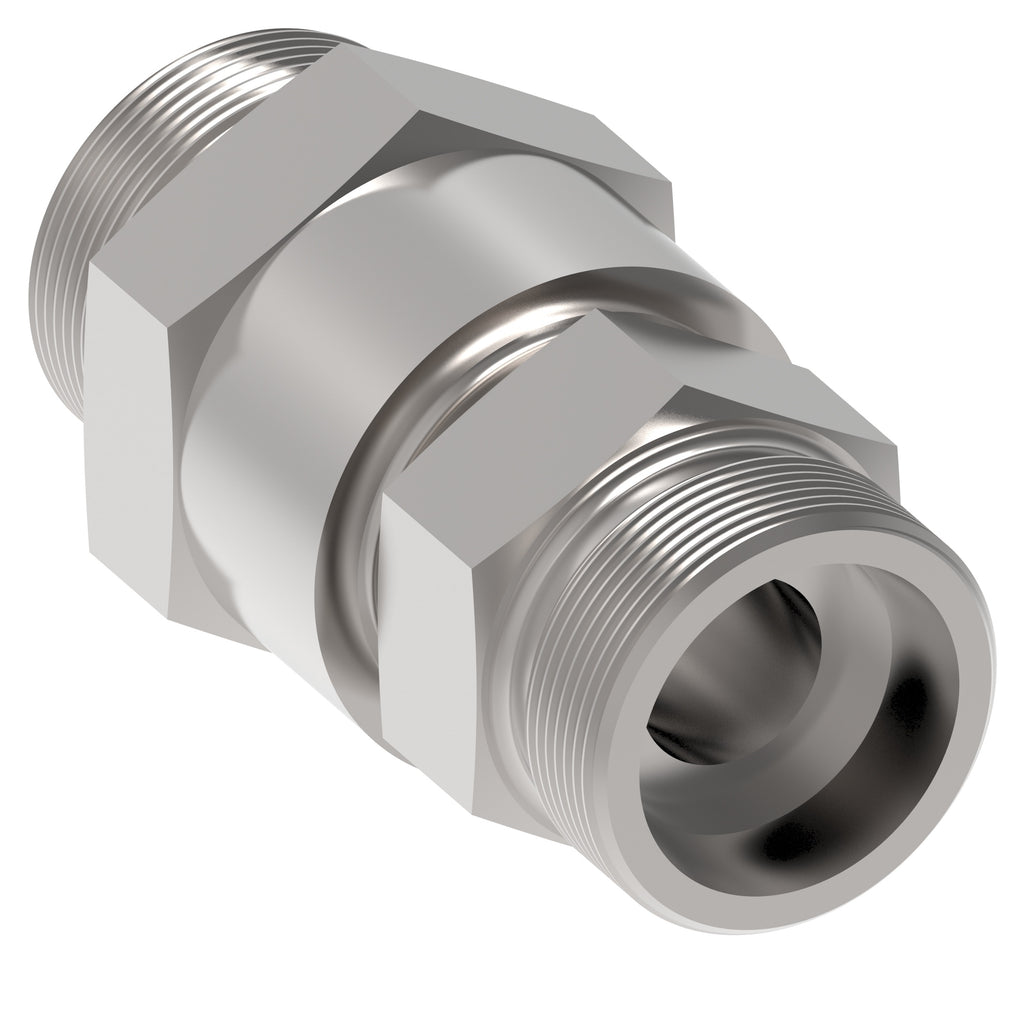

VALVE, RS 8 L/0,1 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL624917
€21,63
Technische Daten
| Legacy part number | WAL624917 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Non-return valve |
| Model Code 1 | RS 8 L/0,1 A4GS |
| Product material | Carbon steel |
| Thread size 1 | M14x1.5 |
| Thread size 2 | M14x1.5 |
| Angle shape | Straight |
| End size 1 | 8L |
| End size 2 | 8L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. tube port light duty |
| Hex size 1 MM | 22 |
| Hex size 2 MM | 27 |
| Working temperature max C | 100 |
| Working temperature min C | -20 |
| Working pressure bar | 400 |
| Complete connector | No |
| Product serial name | RS … |
| Tube outside diameter 1 MM | 8 |
| Tube outside diameter 2 MM | 8 |
| Finish plating | Guardian Seal |
| Product height in | 1.063 |
| Product width in | 1.063 |
| Product width mm | 27 |
| Product height mm | 27 |
| Product length mm | 52 |
| Product length in | 2.047 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 84813091
- Danfoss Produktseite: Produkt bei Danfoss
