WAL625764
€11,55
Zu Produktinformationen springen
Auf Lager
WAL625764

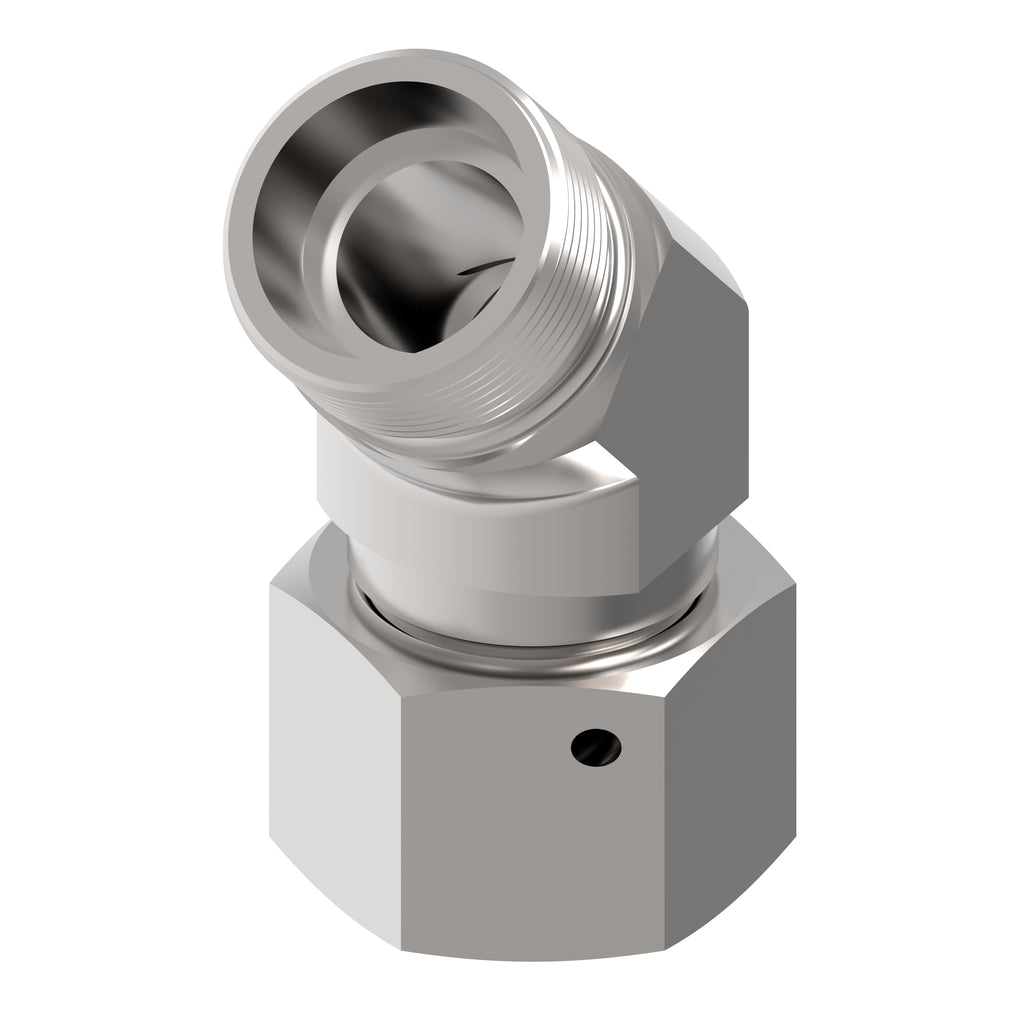

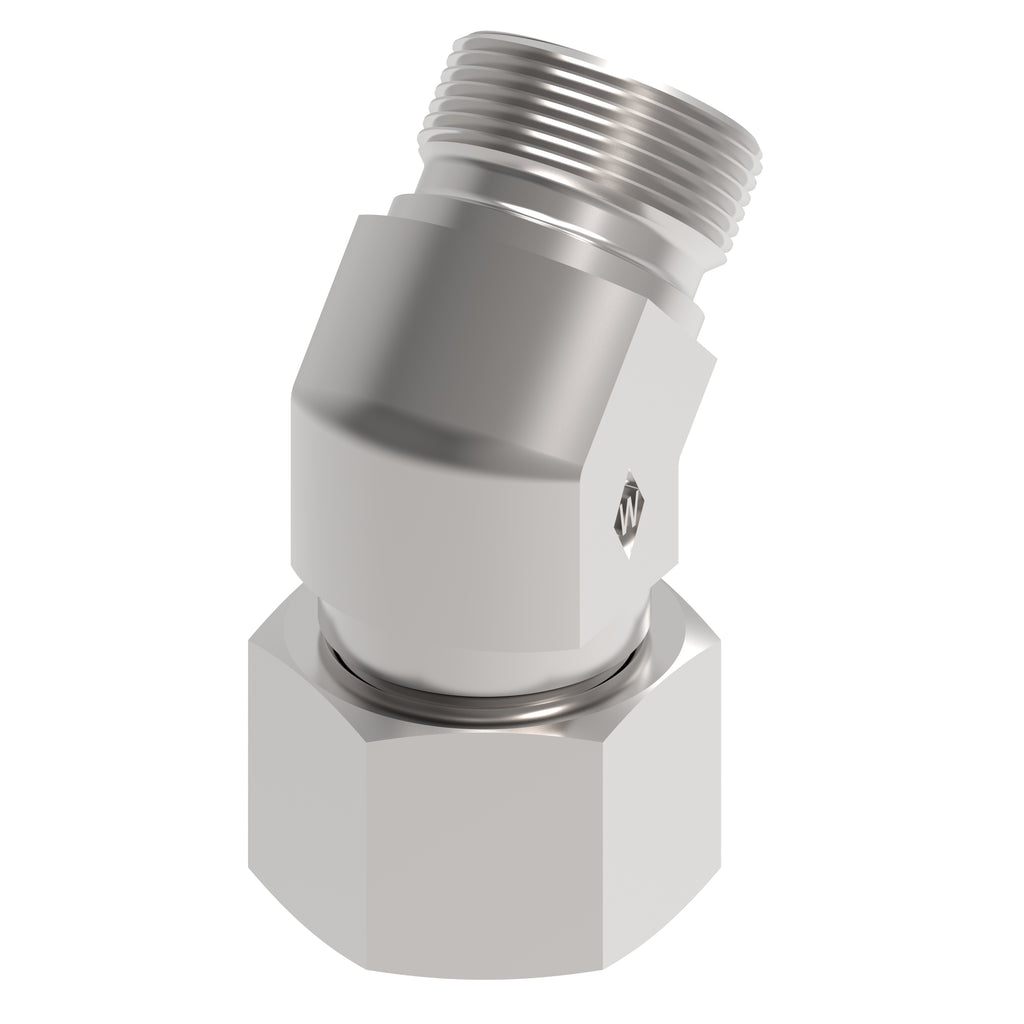

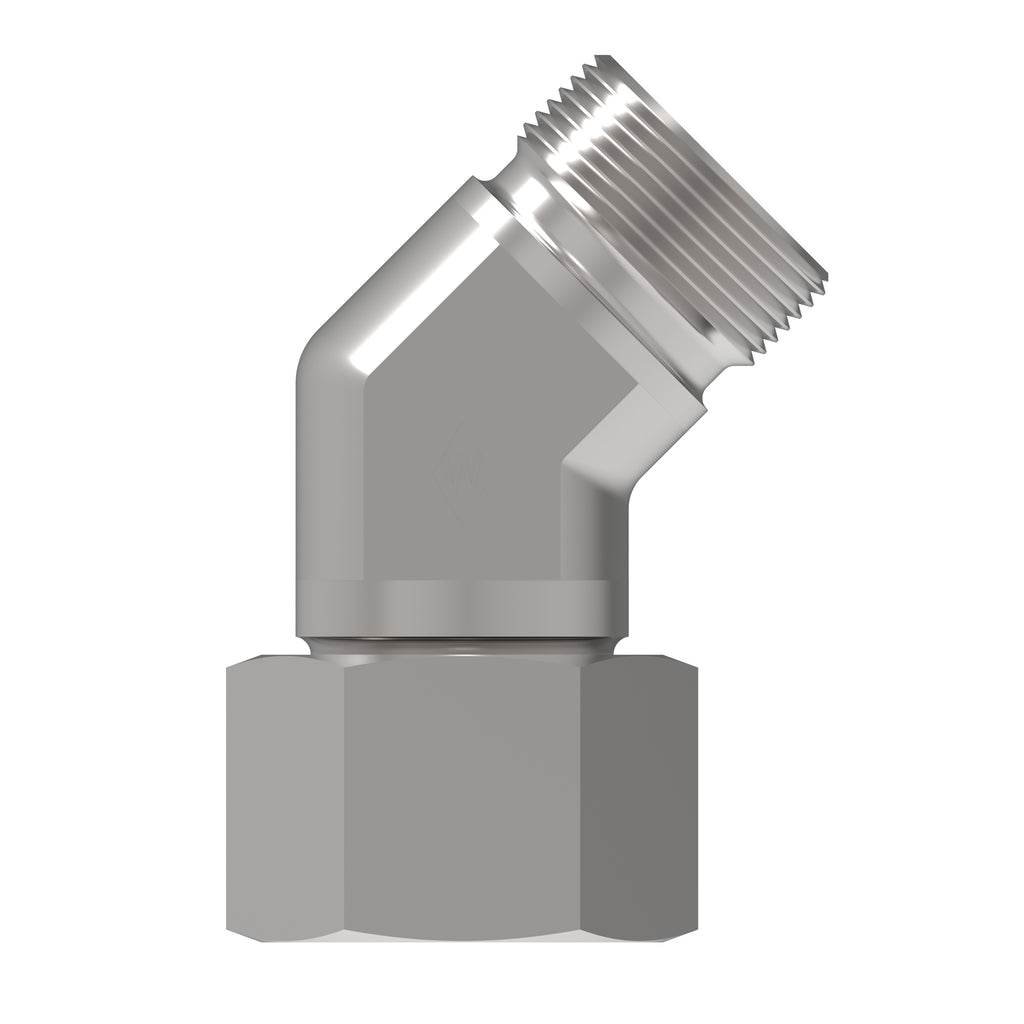

TUBE FTG, EWSD 45 12 L A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL625764
€13,74
Technische Daten
| Legacy part number | WAL625764 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | EWSD 45 12 L A4GS |
| Product material | Carbon steel |
| Thread size 1 | M18x1.5 |
| Thread size 2 | M18x1.5 |
| Angle shape | Elbow 45 degree |
| End size 1 | 12L |
| End size 2 | 12L |
| End Type 2 | 24 deg. tube port light duty |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 MM | 19 |
| Hex size 2 MM | 22 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 400 |
| Complete connector | No |
| Product serial name | EWSD 45 … |
| Seal material | Nitrile (NBR) |
| Tube outside diameter 1 MM | 12 |
| Tube outside diameter 2 MM | 12 |
| Finish plating | Guardian Seal |
| Product height in | 0.866 |
| Product width in | 0.866 |
| Product width mm | 22 |
| Product height mm | 22 |
| Product length mm | 50.5 |
| Product length in | 1.988 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
