WAL625769
€47,00
Zu Produktinformationen springen
Auf Lager
WAL625769

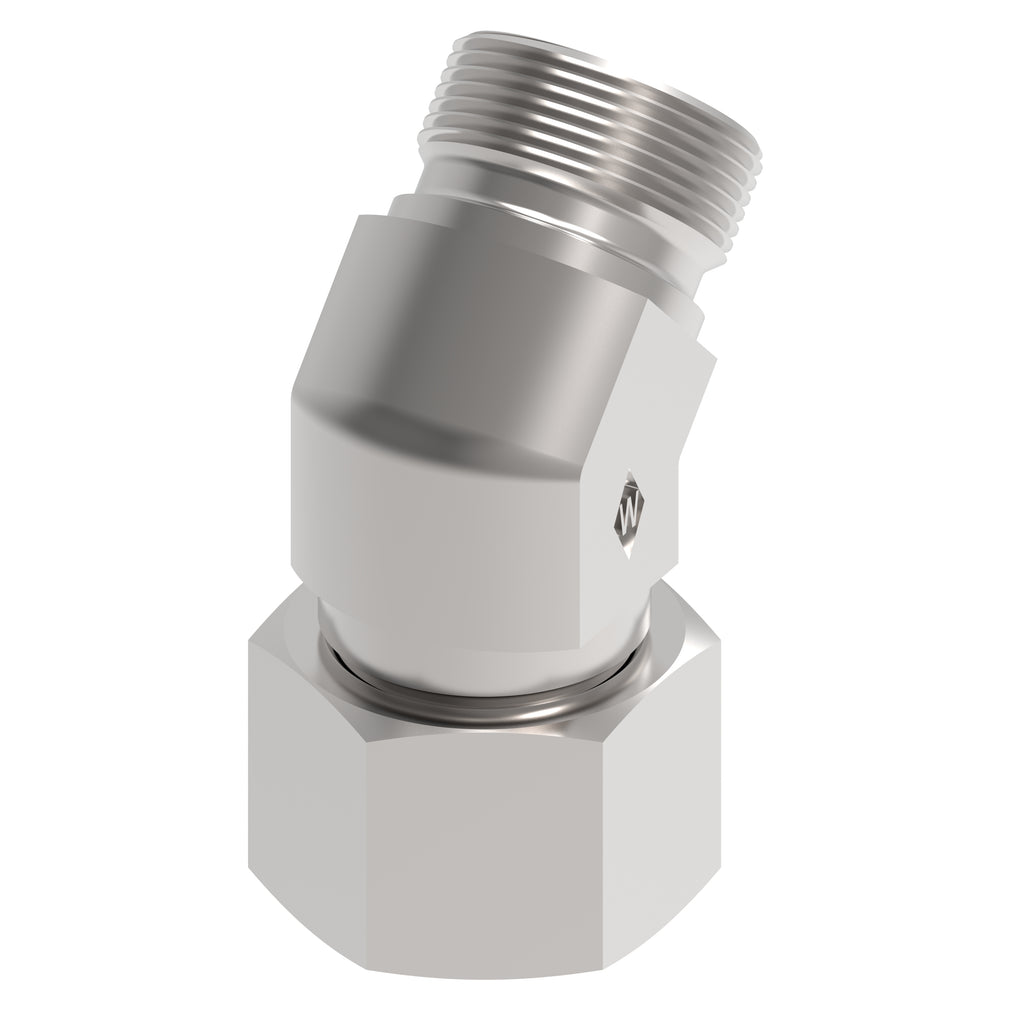

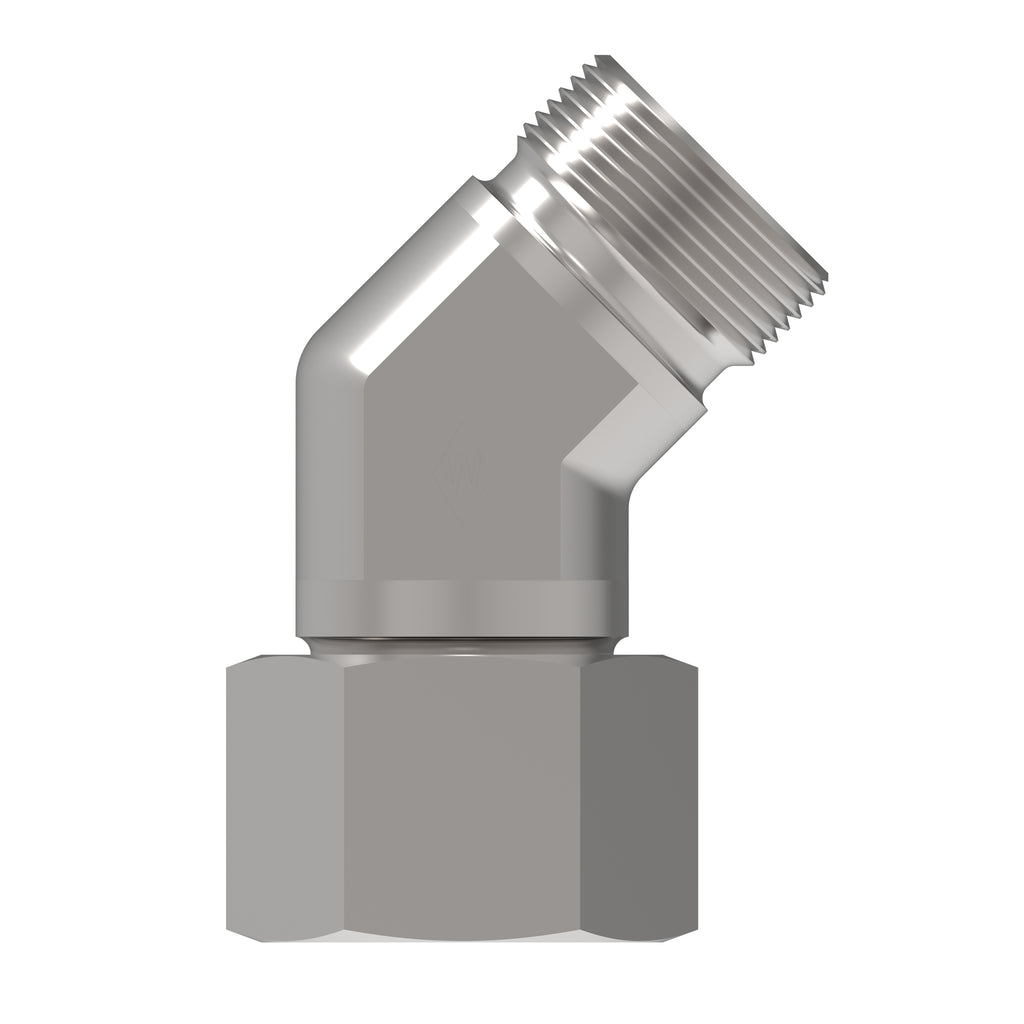

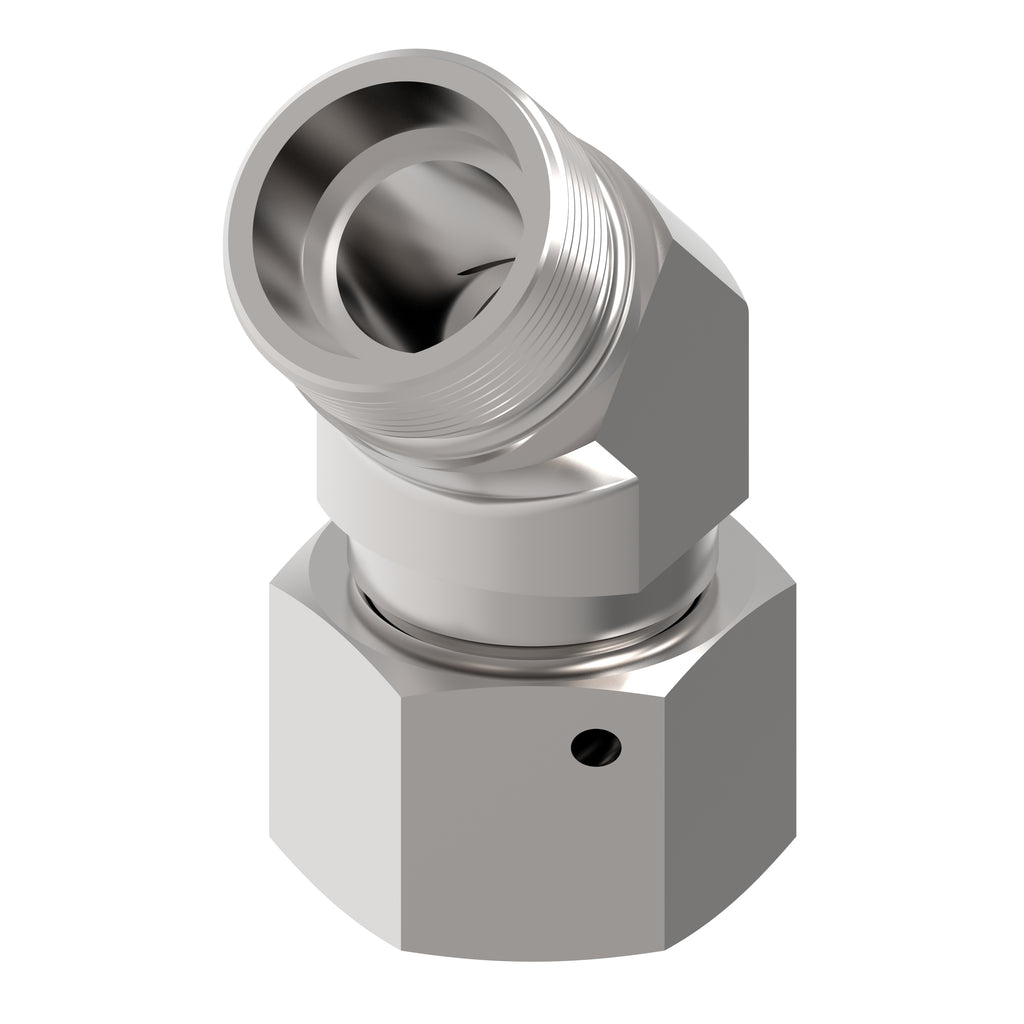

TUBE FTG, EWSD 45 35 L A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL625769
€55,93
Technische Daten
| Legacy part number | WAL625769 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | EWSD 45 35 L A4GS |
| Product material | Carbon steel |
| Thread size 1 | M45x2 |
| Thread size 2 | M45x2 |
| Angle shape | Elbow 45 degree |
| End size 1 | 35L |
| End size 2 | 35L |
| End Type 2 | 24 deg. tube port light duty |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 MM | 50 |
| Hex size 2 MM | 50 |
| Working temperature max C | 120 |
| Working temperature min C | -40 |
| Working pressure bar | 250 |
| Complete connector | No |
| Product serial name | EWSD 45 … |
| Tube outside diameter 1 MM | 35 |
| Tube outside diameter 2 MM | 35 |
| Finish plating | Guardian Seal |
| Product height in | 1.969 |
| Product width in | 1.969 |
| Product width mm | 50 |
| Product height mm | 50 |
| Product length mm | 88 |
| Product length in | 3.465 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079290
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
