WAL625893
€35,56
Zu Produktinformationen springen
Auf Lager
WAL625893

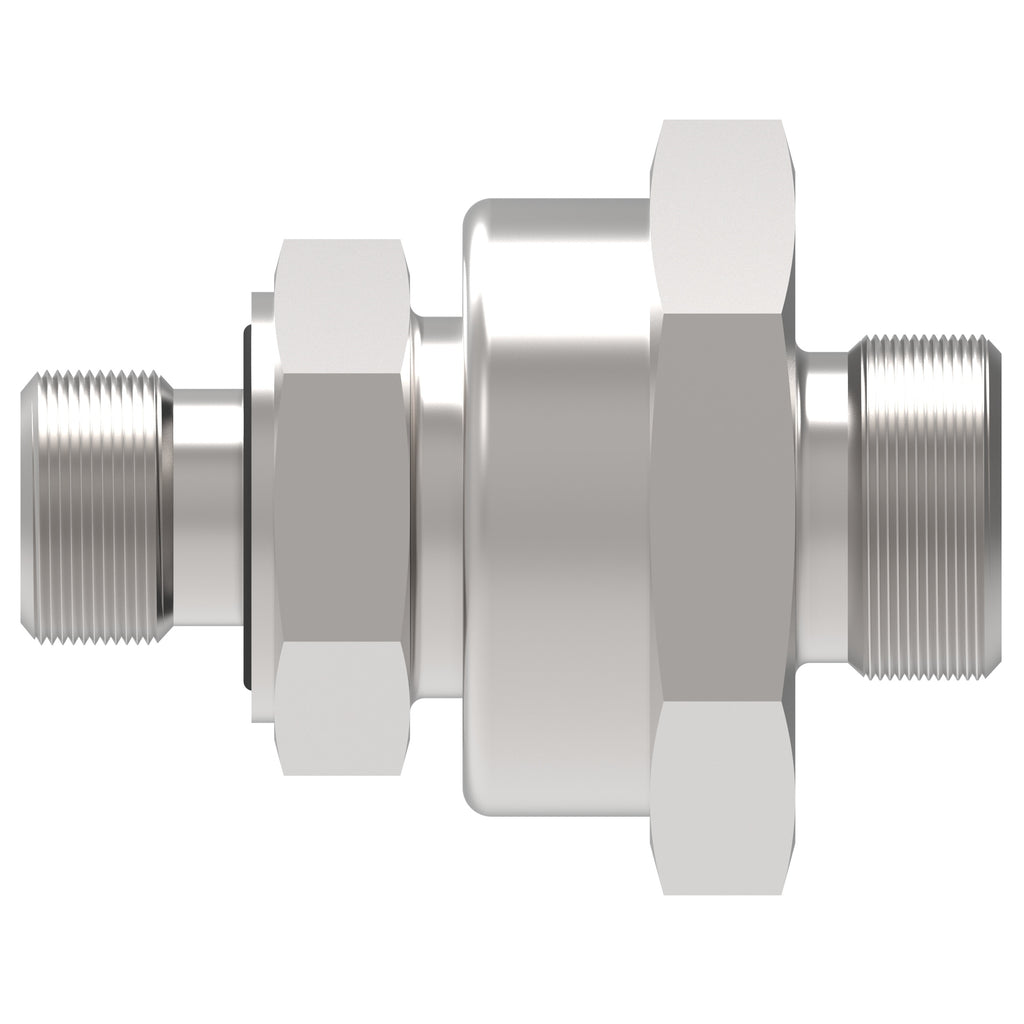

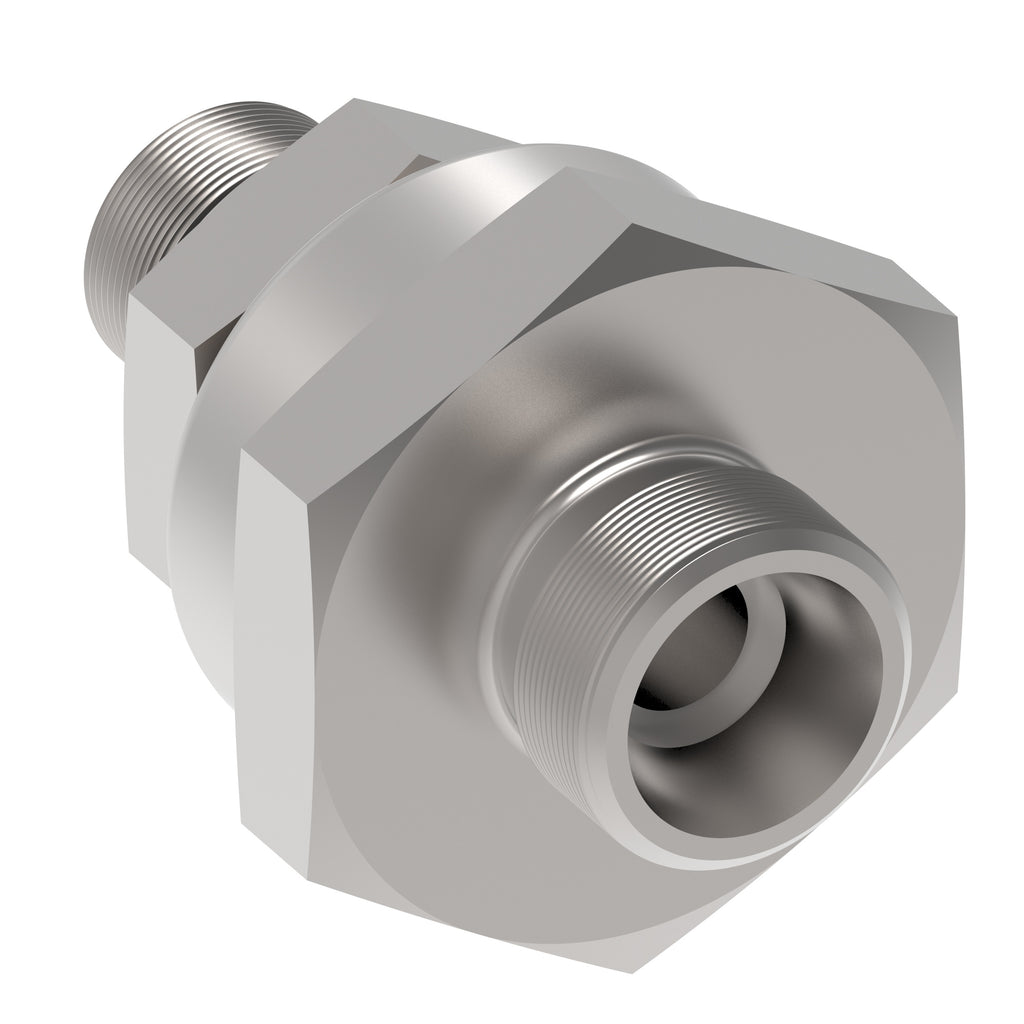

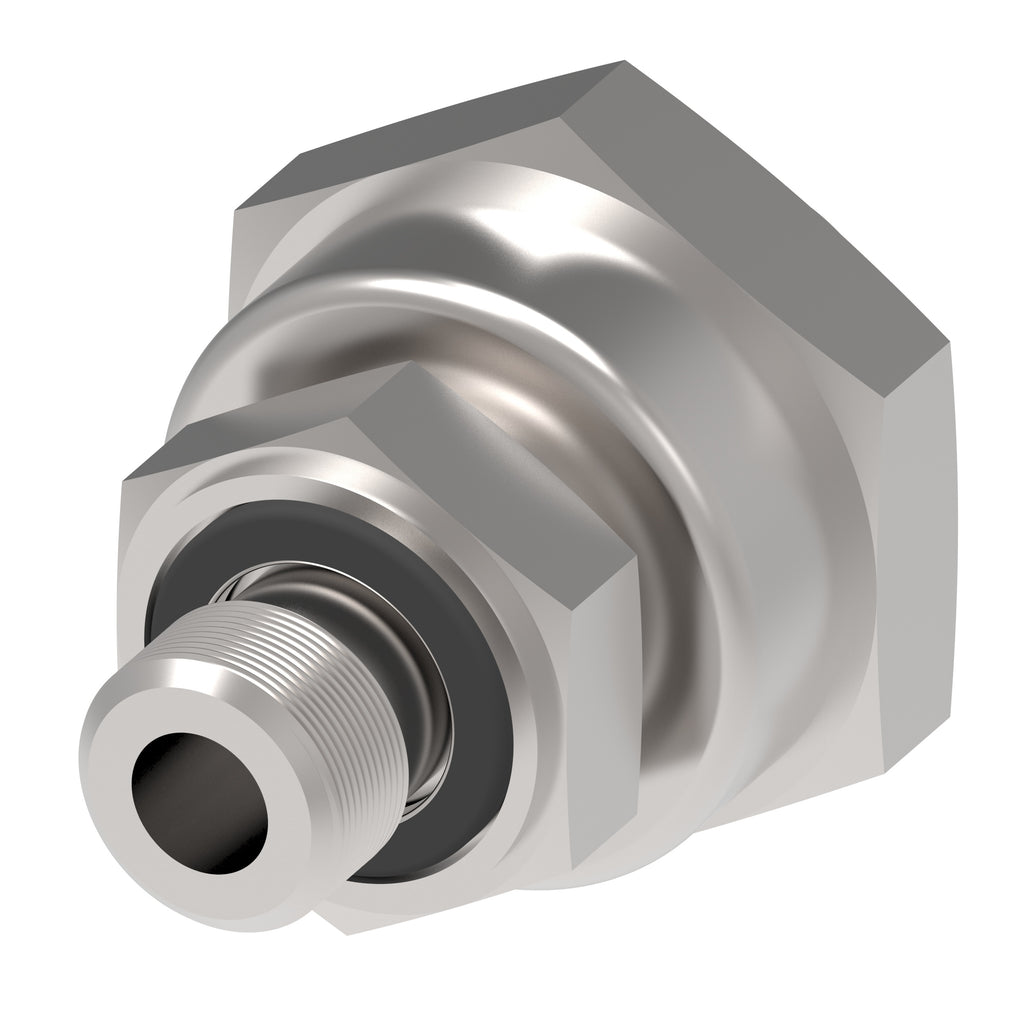

VALVE, RSZ 22 LR-WD/1,5 A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL625893
€42,32
Technische Daten
| Legacy part number | WAL625893 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Non-return valve |
| Model Code 1 | RSZ 22 LR-WD/1,5 A4GS |
| Product material | Carbon steel |
| Thread size 1 | G 3/4 |
| Thread size 2 | M30x2 |
| Angle shape | Straight |
| End size 2 | 22L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | Male 1179-2 BSPP type E (L) |
| Hex size 1 MM | 46 |
| Hex size 2 MM | 41 |
| Working temperature max C | 100 |
| Working temperature min C | -20 |
| Working pressure bar | 250 |
| Complete connector | No |
| Product serial name | RSZ … R-WD |
| Seal material | Nitrile (NBR) |
| Tube outside diameter 1 MM | 22 |
| Tube outside diameter 2 MM | 22 |
| Finish plating | Guardian Seal |
| Product height in | 1.811 |
| Product width in | 1.614 |
| Product width mm | 41 |
| Product height mm | 46 |
| Product length mm | 77 |
| Product length in | 3.032 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 84813091
- Danfoss Produktseite: Produkt bei Danfoss
