WAL627404
€7,58
Zu Produktinformationen springen
Auf Lager
WAL627404

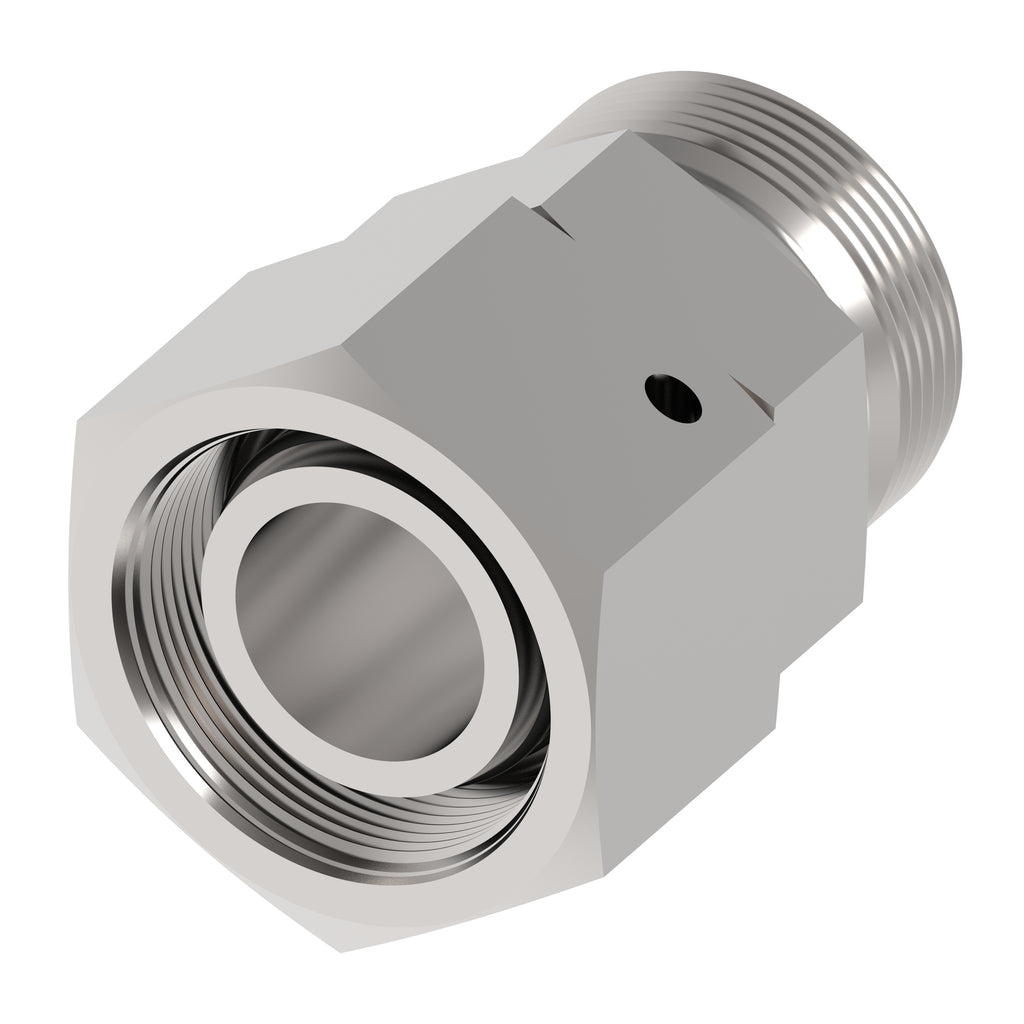

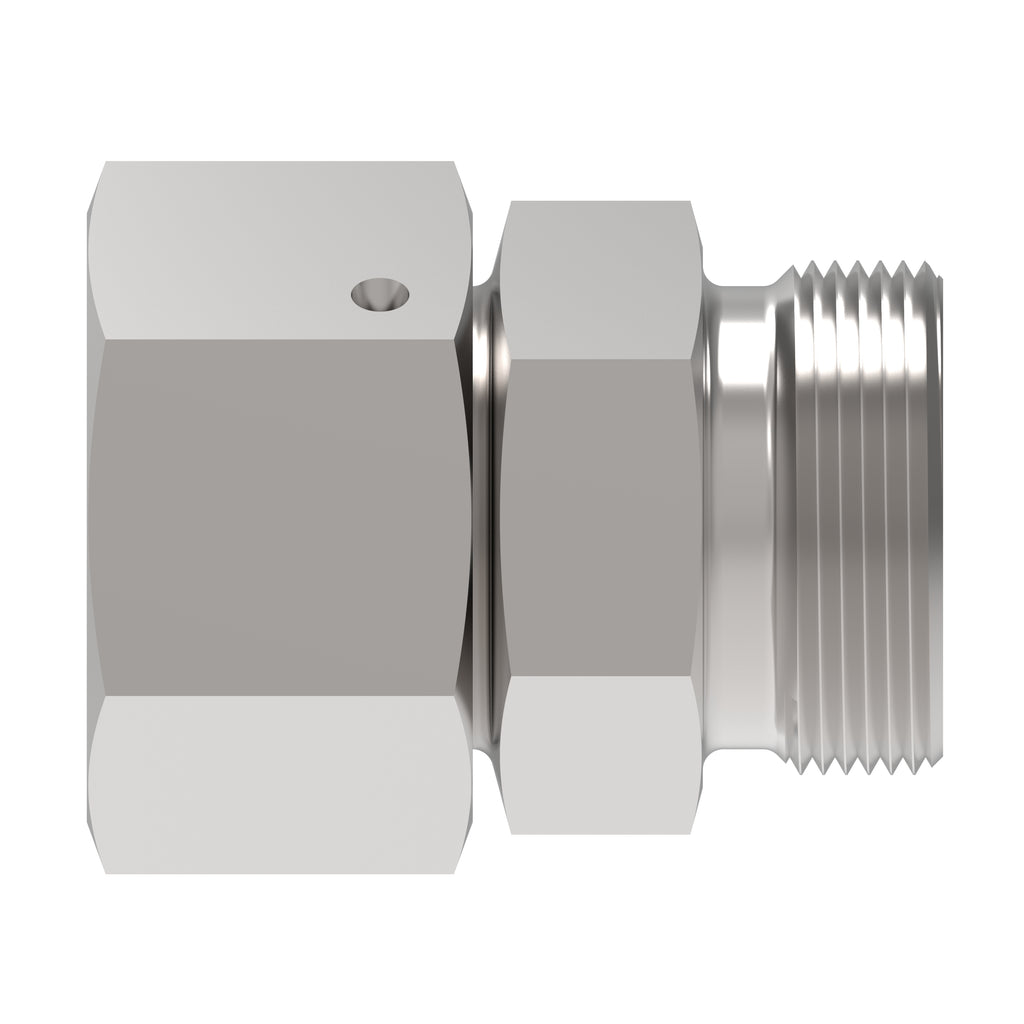

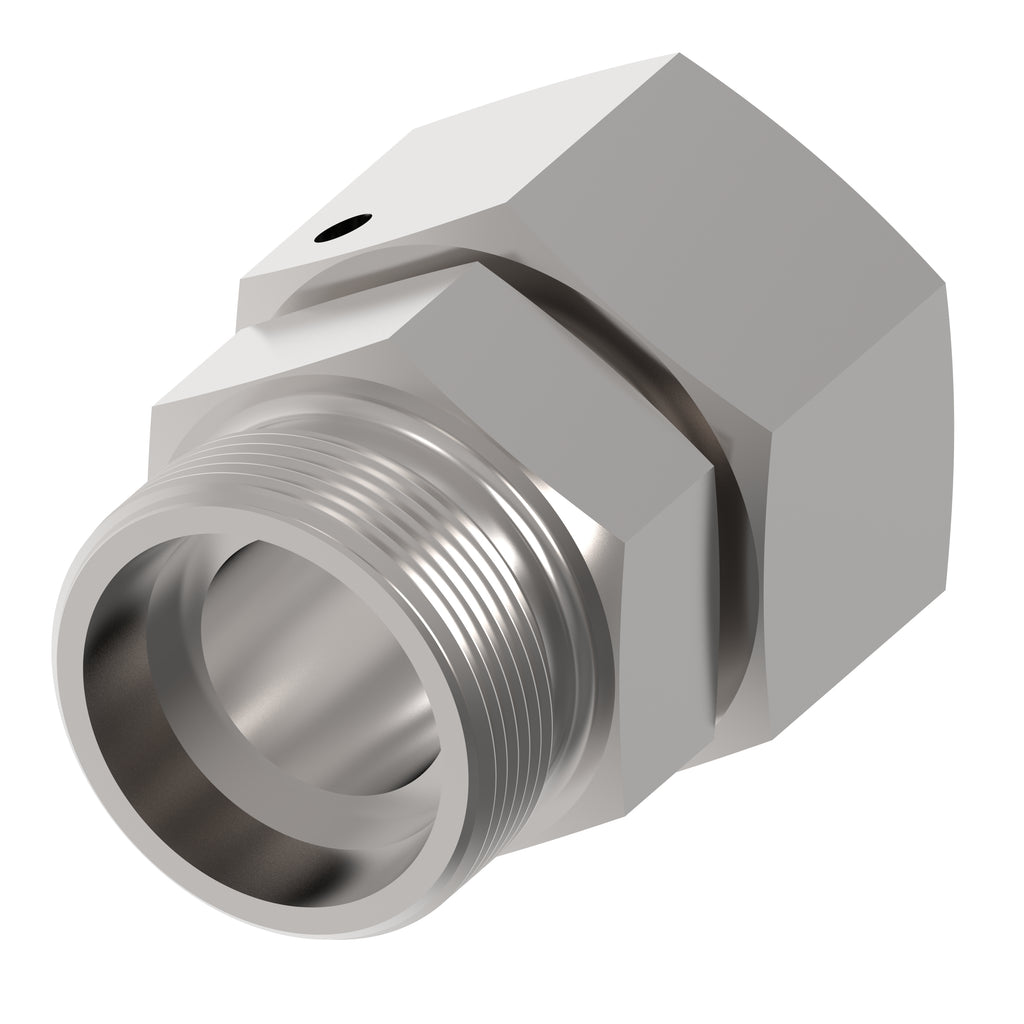

TUBE FTG, DAS 12 L A4GS
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WAL627404
€9,02
Technische Daten
| Legacy part number | WAL627404 |
| Sub brand | Waltech |
| Brand | Danfoss |
| Item type | Adjustable connector |
| Model Code 1 | DAS 12 L A4GS |
| Product material | Carbon steel |
| Angle shape | Straight |
| End size 1 | 12L |
| End size 2 | 12L |
| End type 2 | 24 deg. tube port light duty |
| End type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 MM | 19 |
| Hex size 2 MM | 12 |
| Working pressure bar | 400 |
| Complete connector | No |
| Product serial name | DAS … |
| Seal material | Nitrile (NBR) |
| Tube outside diameter 1 MM | 12 |
| Tube outside diameter 2 MM | 12 |
| Finish plating | Guardian Seal |
| Product height in | 0.472 |
| Product width in | 0.472 |
| Product width mm | 12 |
| Product height mm | 12 |
| Product length mm | 43 |
| Product length in | 1.693 |
Weitere Produktdaten
- Herkunftsland: Slovakia
- Zolltarifnummer: 73079910
- Danfoss Produktseite: Produkt bei Danfoss
Dokumente & Zertifikate
- Danfoss Waltech® tube fitting series and assembly machines brochure
- Danfoss Waltech® tube fitting systems general overview
- Danfoss Waltech® tube fitting systems - General overview
- Guardian seal plating technology flyer
- Danfoss Waltech WalformPlus and WalformPlus-M tube fitting system - PRS Type Approval Certificate
- Danfoss Waltech Walpro tube fitting system - PRS Type Approval Certificate
