1/2

WH004-40MT40

Name: WH004-40MT40
Brand: Danfoss
SKU: WH004-40MT40
Price: 55.04 EUR
Availability: InStock

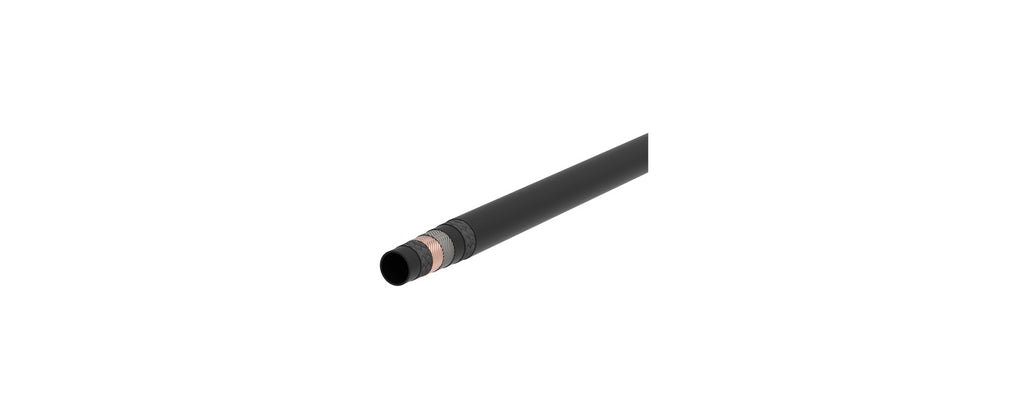

HOSE-WIN, WH004, -40, 40M, RL, R4

Lieferzeit: ca. 2 Wochen

Danfoss Artikelnummer: WH004-40MT40

€65,50 €65,50/m

Auf Lager

Hinweis für Schlauch- und Meterware: Die tatsächlich gelieferte Länge kann rollen- bzw. fertigungsbedingt um bis zu 5 % von der bestellten Menge abweichen. Größere Bestelleinheiten (z. B. MT50 = 50 m) können auf mehrere Schlauchrollen bzw. Teilrollen aufgeteilt geliefert werden.

Technische Daten

Series	WH004 Series
Bend radius min (mm)	180
Abrasion resistance	Standard
Bend radius min (inch)	7.09
Construction	2 Ply Pes Fab,St Wire,Cu
Certifications	MSHA Approved
Compliances	SAE J517
Application	Fuel gas system
Burst pressure (psi)	240
Burst pressure (bar)	16
Inside diameter (mm)	63.5
Conductivity	Conductive
Inside diameter (inch)	2.5
Lay line style	Ink transfer
Length (in)	1575
Outside diameter (inch)	2.97
Length (mm)	40000
Package form	Reel
Outside diameter (mm)	75.5
Qualified hose fittings	4T
Reinforcement material	Brass plated steel wire
Size	-40
Vacuum rating (inHg)	28
Working pressure max (bar)	4
Vacuum rating (mmHg)	711
Working pressure max (psi)	58
Working temperature max (C)	100
Working temperature max (F)	212
Working temperature min (F)	-40
Working temperature min (C)	-40
Legacy part number	M34F063067
Brand	Winner by Danfoss
Color	Black
Cover material	Nitrile (NBR)
Tube material	Nitrile (NBR)
Product height in	2.5
Product width in	2.5
Product width mm	63.5
Product height mm	63.5
