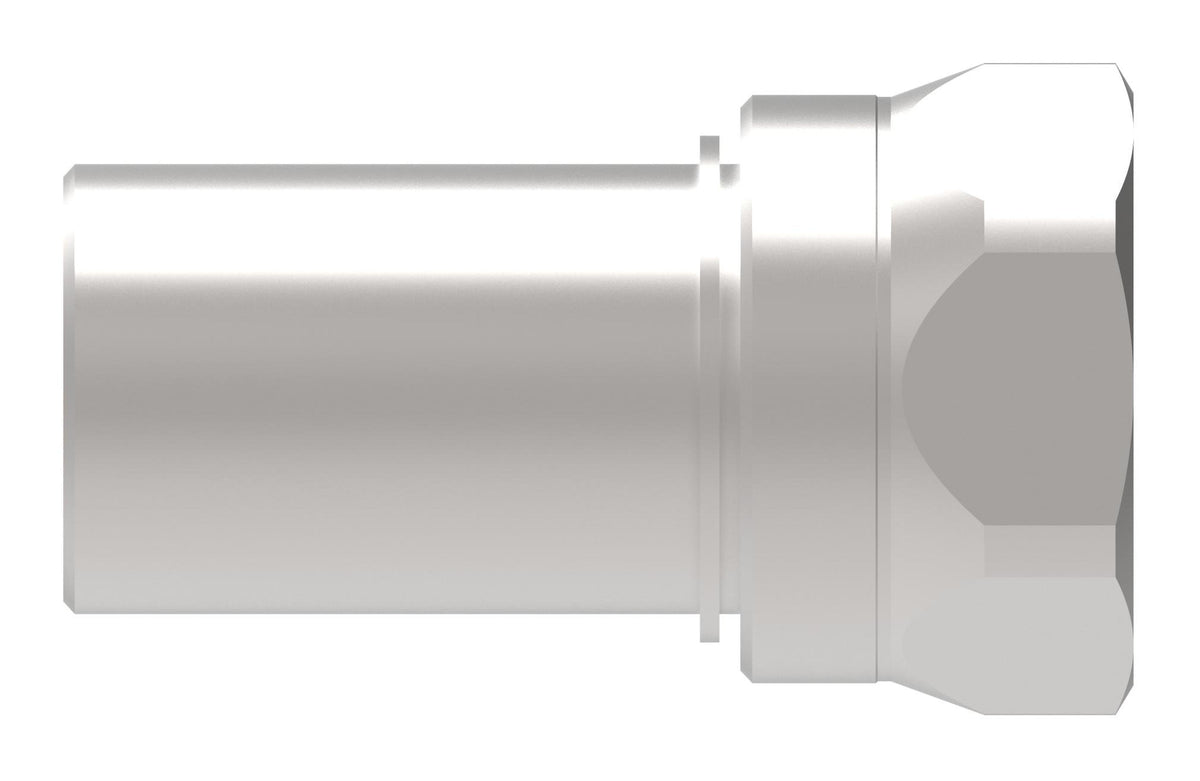

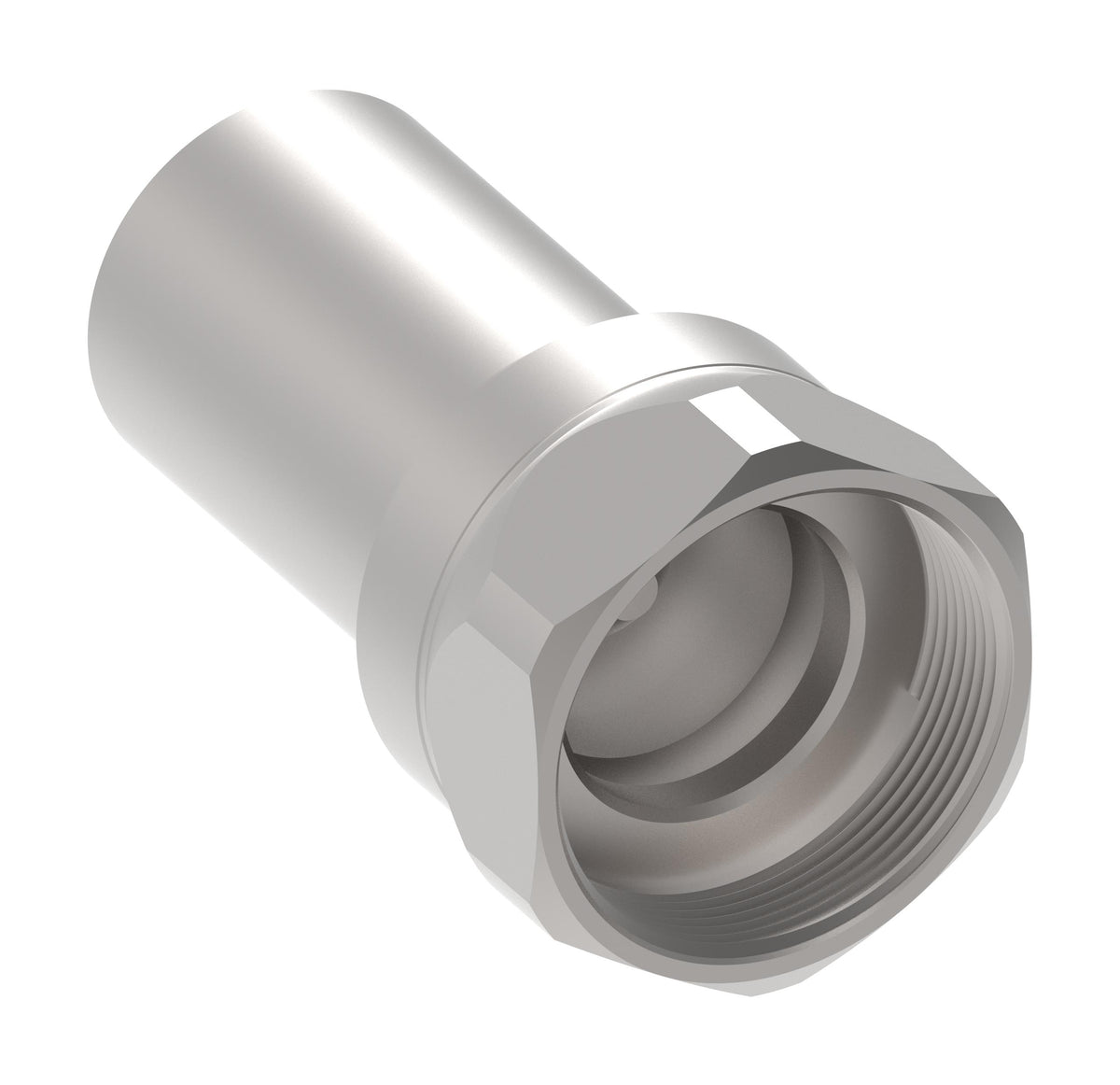

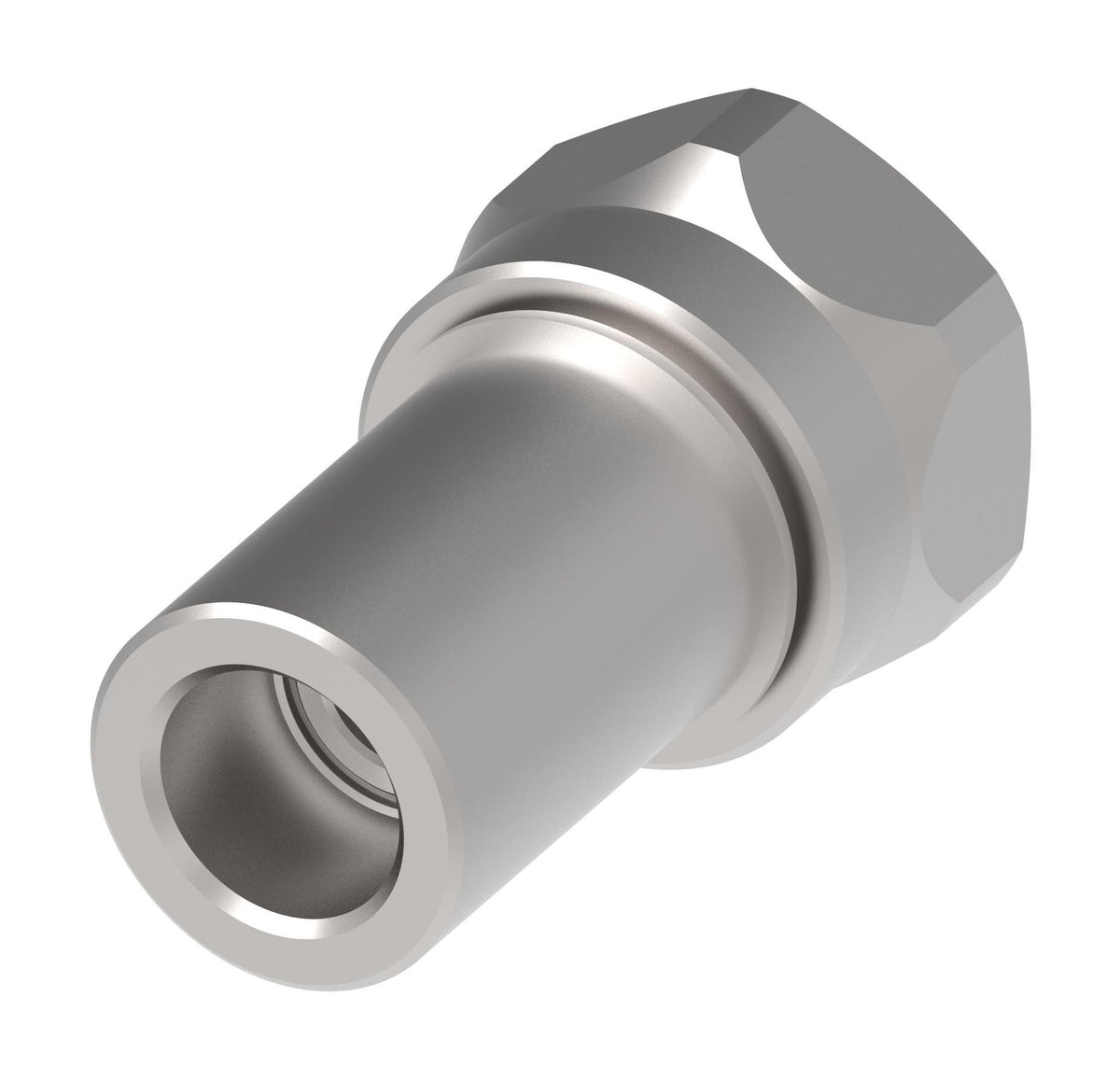

Danfoss Gromelle WV0604700 – W6000 Kupplungsmuffe
€353,22
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WV0604700 – W6000 Kupplungsmuffe
COUPLING,W6000,F,3/4,SS,-12BSP,NBR
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WV0604700
€420,33
Technische Daten
| Legacy part number | WV0604700 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Valve type | 2 way |
| Product material | Stainless steel |
| Thread size 1 | G 3/4 |
| Angle shape | Straight |
| Body size | 3/4 |
| End size 1 | -12 |
| End type 1 | Female BSPP port washer seal. |
| Latch type | Screw to connect |
| Safety locking mechanism | None |
| Seal material | Nitrile (NBR) |
| Working pressure max psi | 10861 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Product height in | 2.16 |
| Product width in | 2.16 |
| Product width mm | 54.864 |
| Product height mm | 54.864 |
| Product length mm | 90.932 |
| Product length in | 3.58 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
