Danfoss Gromelle WV06047V0 – W6000 Kupplungsmuffe
€298,20
Zu Produktinformationen springen
Auf Lager

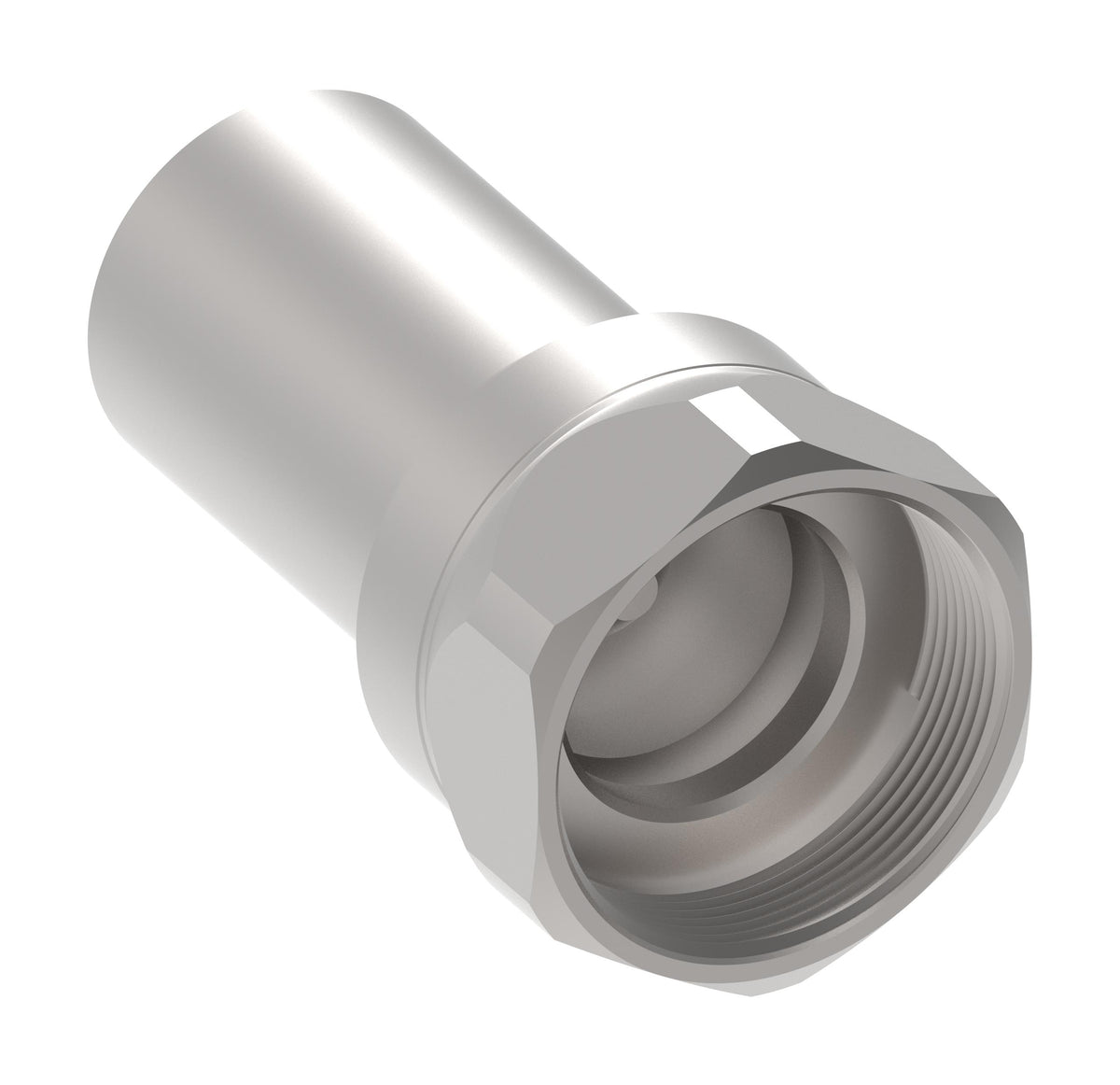

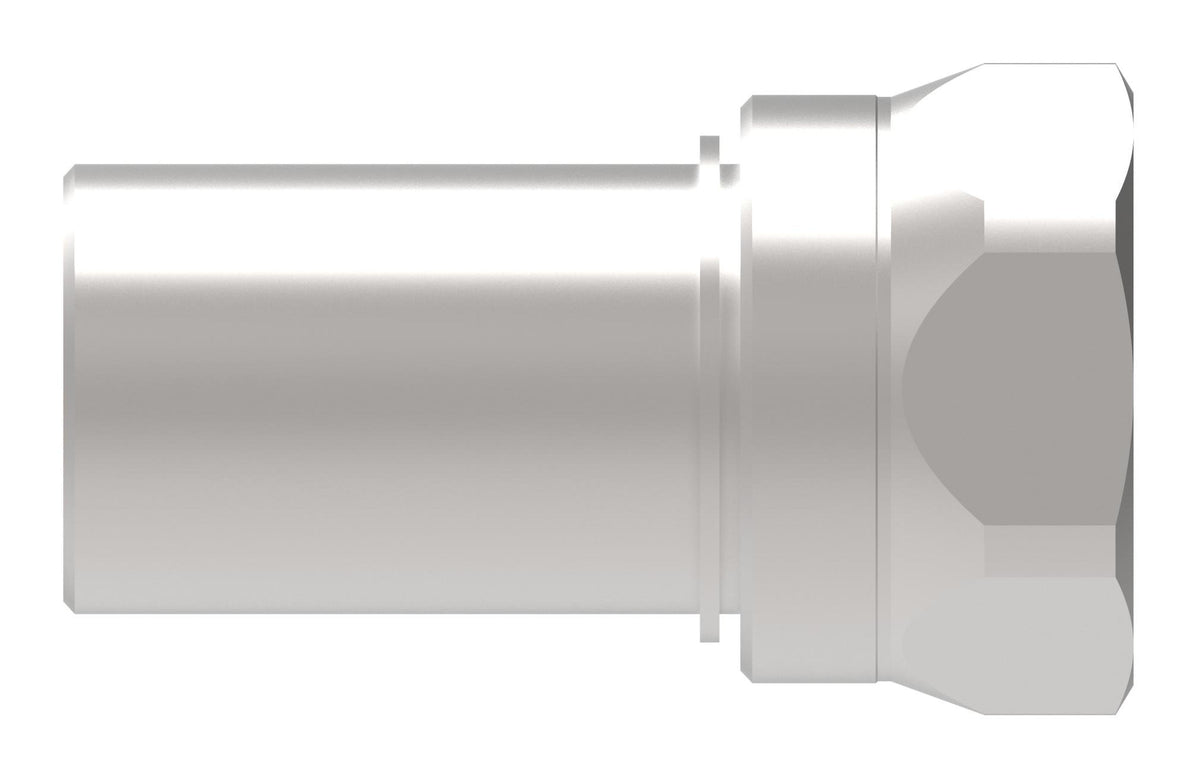

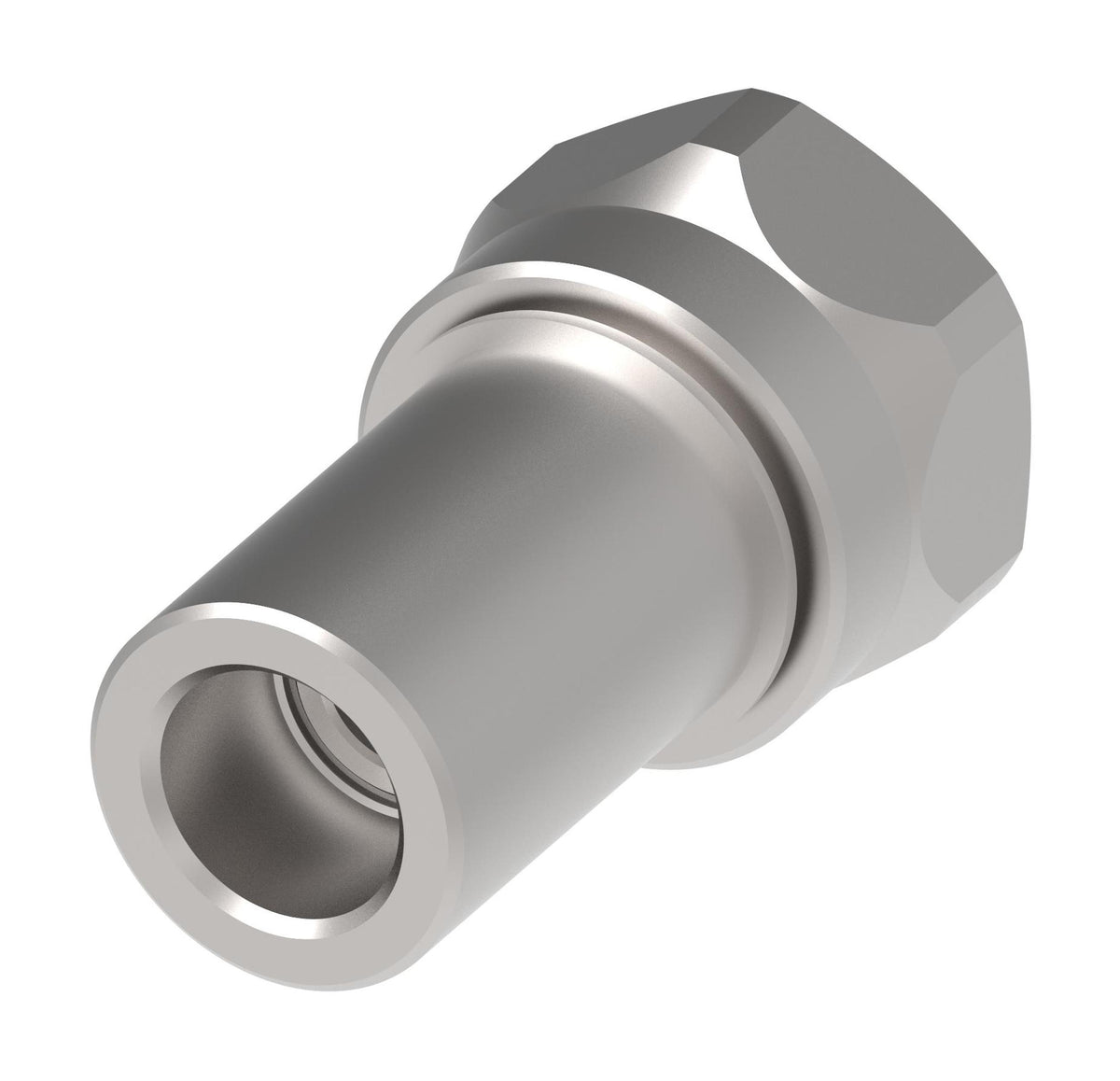

Danfoss Gromelle WV06047V0 – W6000 Kupplungsmuffe
COUPLING,W6000,F,3/4,SS,-12BSP,FKM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WV06047V0
€354,86
Technische Daten
| Legacy part number | WV06047V0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Product material | Stainless steel |
| Thread size 1 | G 3/4 |
| Thread size 2 | G 3/4 |
| Angle shape | Straight |
| Body size | 3/4 |
| End size 1 | -12 |
| End type 1 | Female BSPP port washer seal. |
| Hex size 1 IN | 1.38 |
| Safety locking mechanism | None |
| Seal material | Fluorocarbon (FKM) |
| Working pressure max psi | 9425 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Product height in | 2.16 |
| Product width in | 2.16 |
| Product width mm | 54.864 |
| Product height mm | 54.864 |
| Product length mm | 90.932 |
| Product length in | 3.58 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
