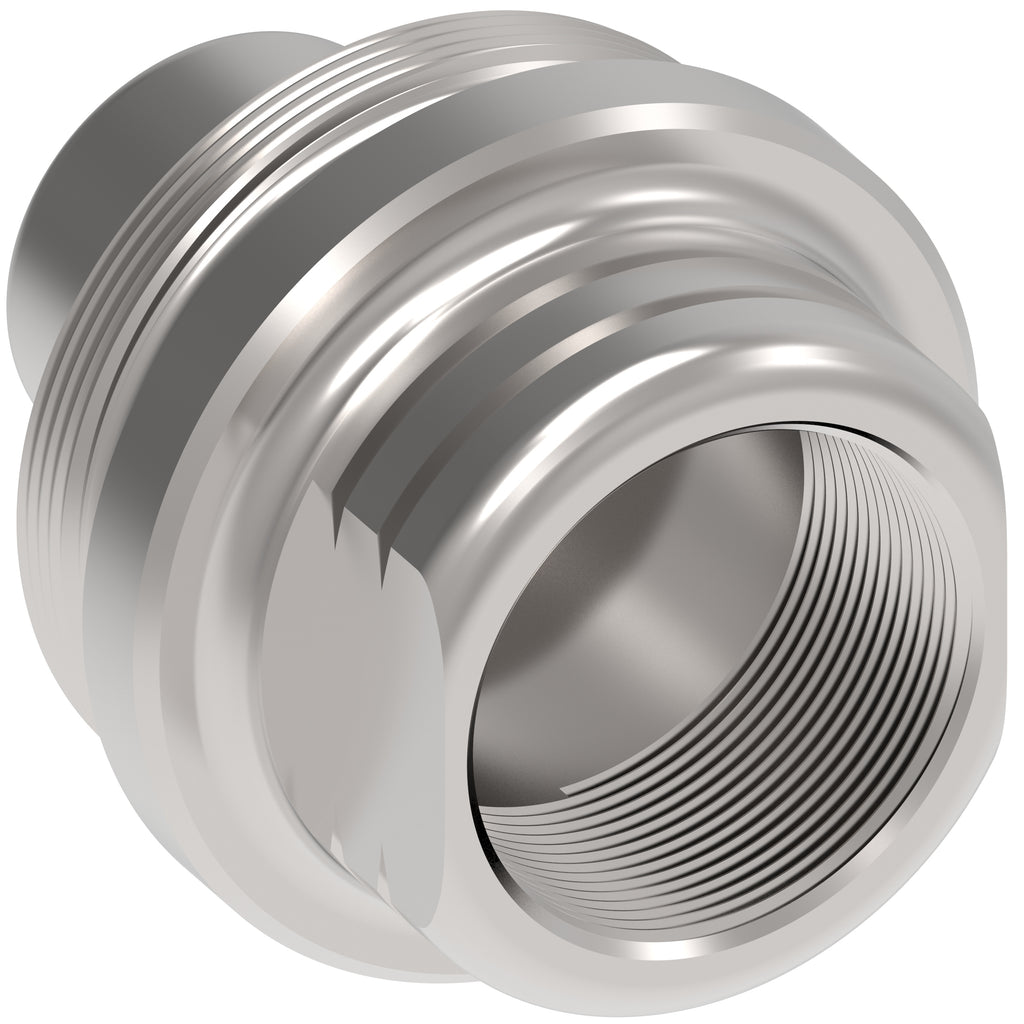

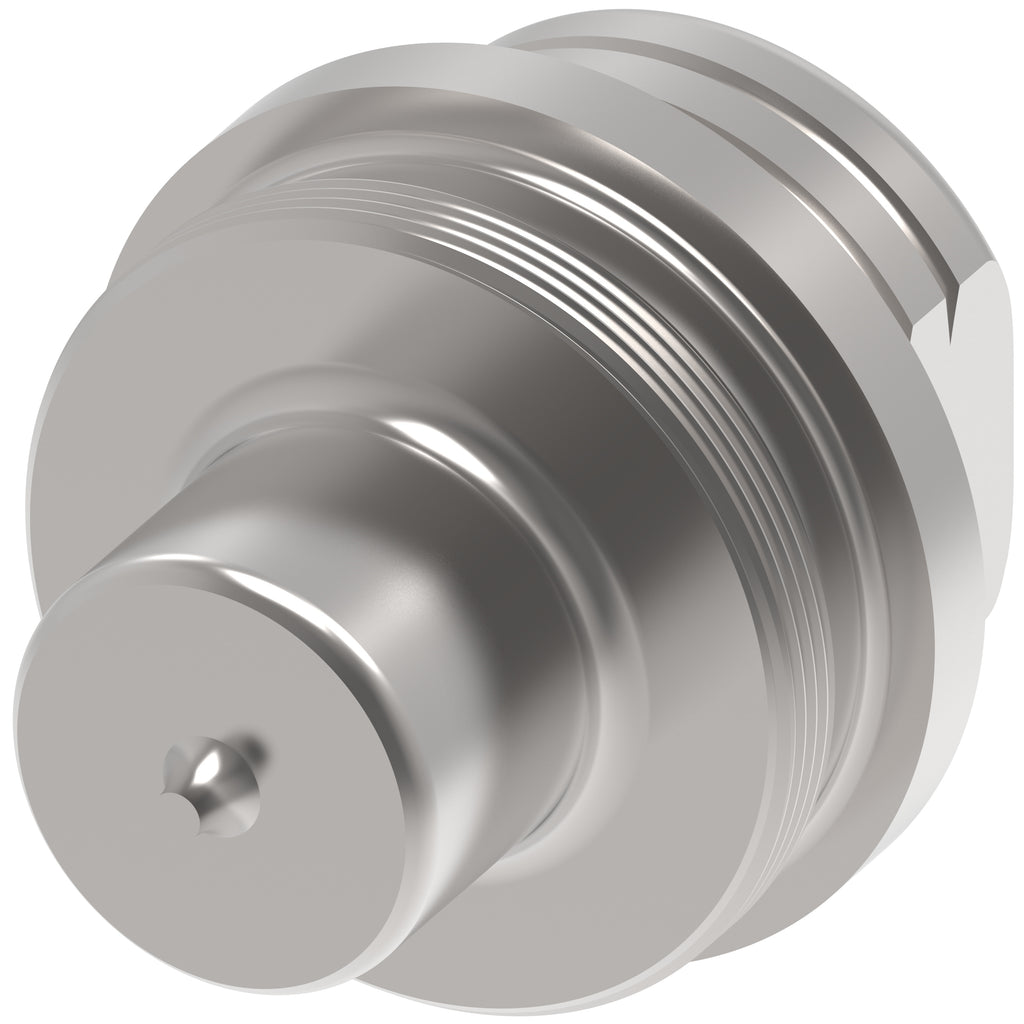

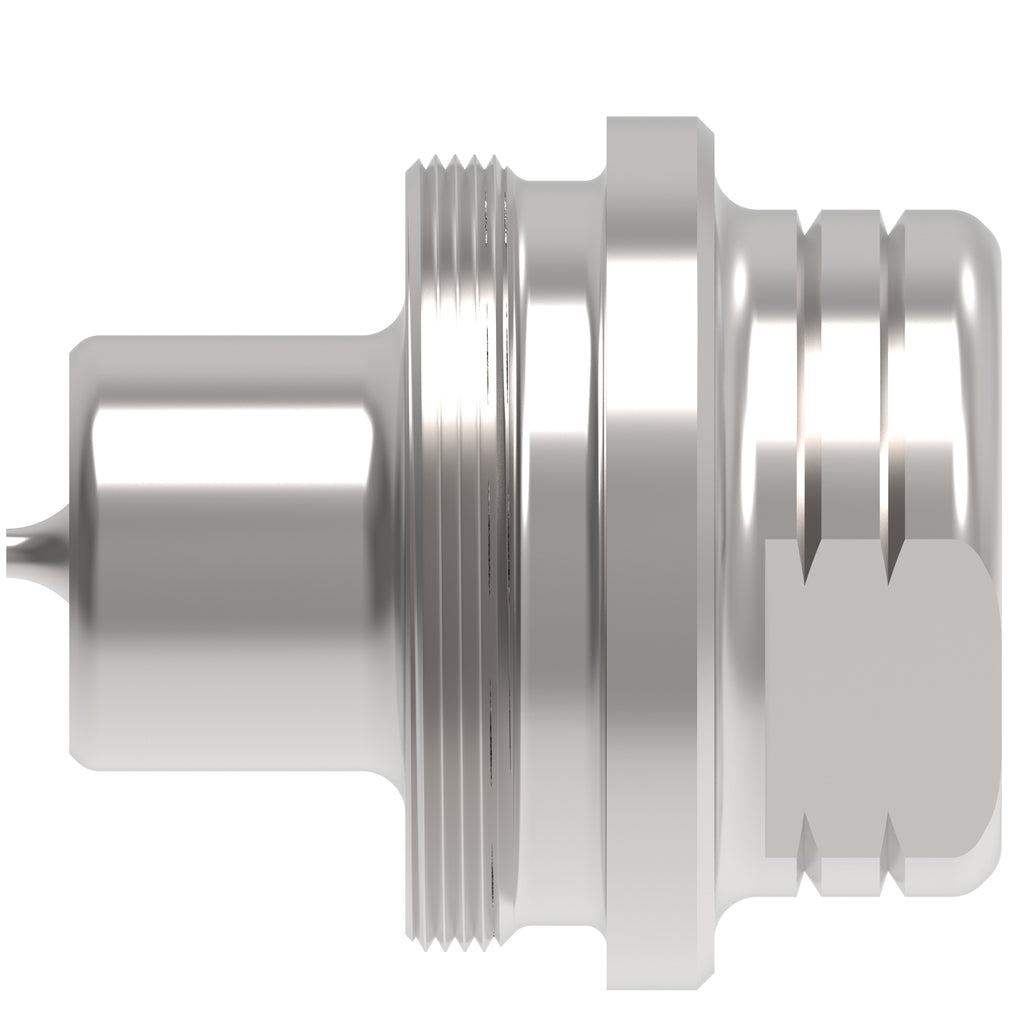

Danfoss Gromelle WV06064V0 – W6000 Kupplungsstecker
€698,20
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WV06064V0 – W6000 Kupplungsstecker
COUPLING,W6000,M,1"1/4,SS,-20BSP,FKM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WV06064V0
€830,86
Technische Daten
| Legacy part number | WV06064V0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Male half |
| Valve type | 2 way |
| Product material | 1.4418 Stainless steel |
| Thread size 1 | G 1 1/4 |
| Angle shape | Straight |
| Body size | 1 1/4" |
| End size 1 | -20 |
| End type 1 | Female BSPP port washer seal. |
| Hex size 1 IN | 2.16 |
| Safety locking mechanism | None |
| Seal material | Fluorocarbon (FKM) |
| Working pressure max psi | 6525 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Product height in | 2.36 |
| Product width in | 2.36 |
| Product width mm | 59.944 |
| Product height mm | 59.944 |
| Product length mm | 97.028 |
| Product length in | 3.82 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
