Danfoss Gromelle WV06074V0 – W6000 Kupplungsstecker
€963,05
Zu Produktinformationen springen
Auf Lager

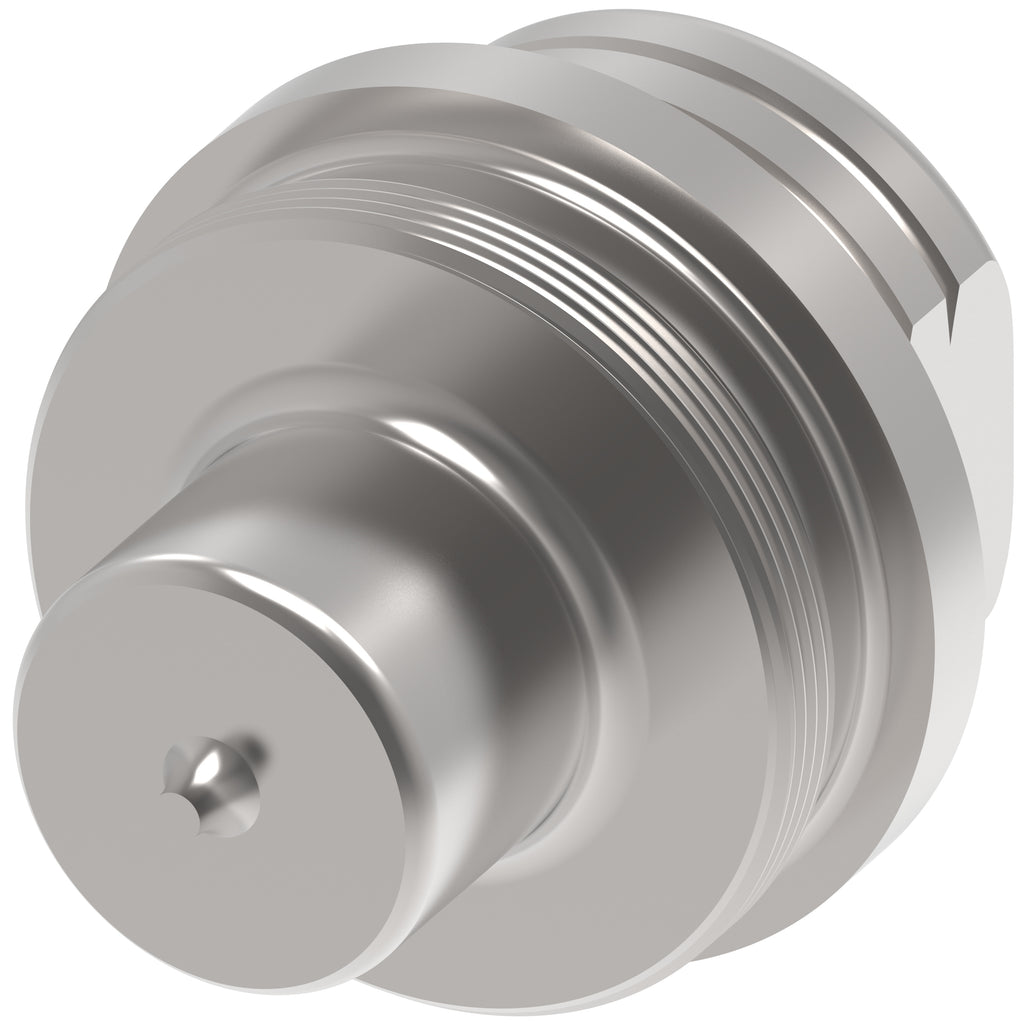

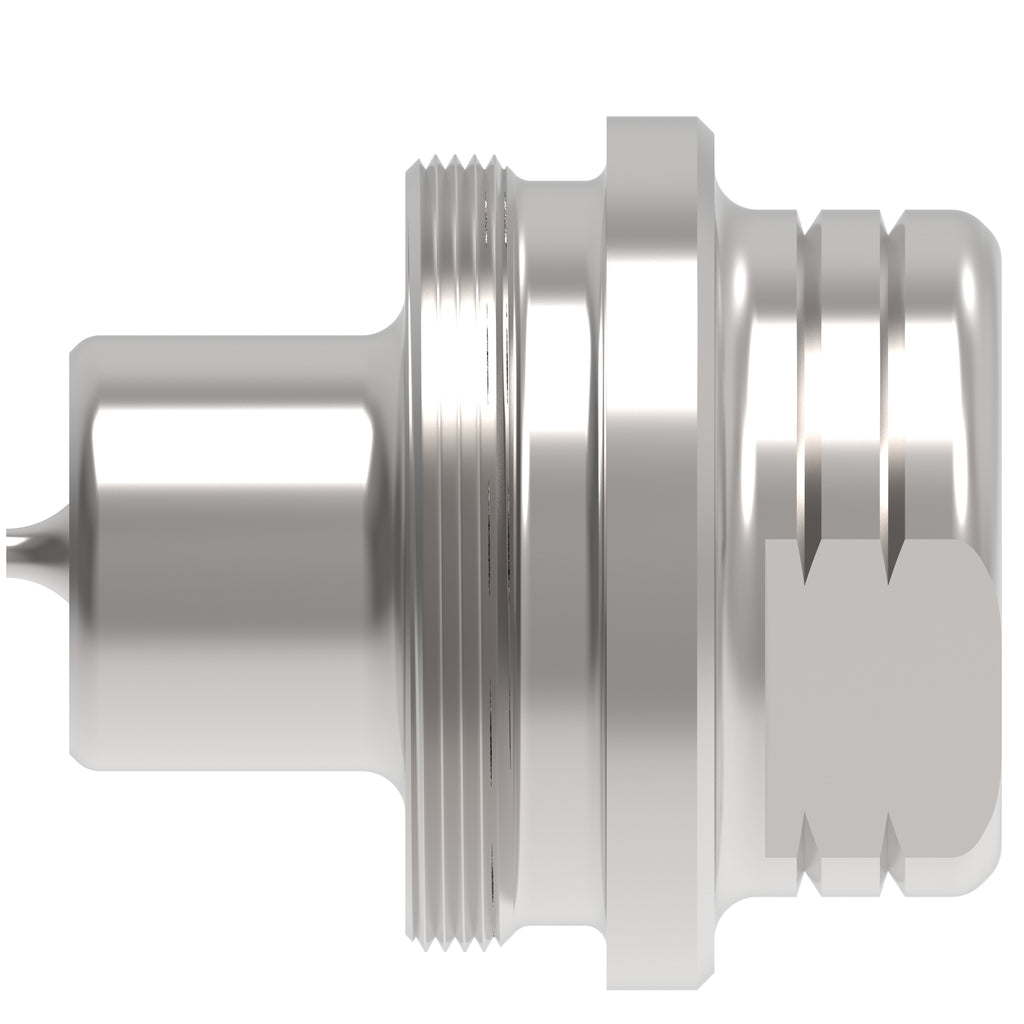

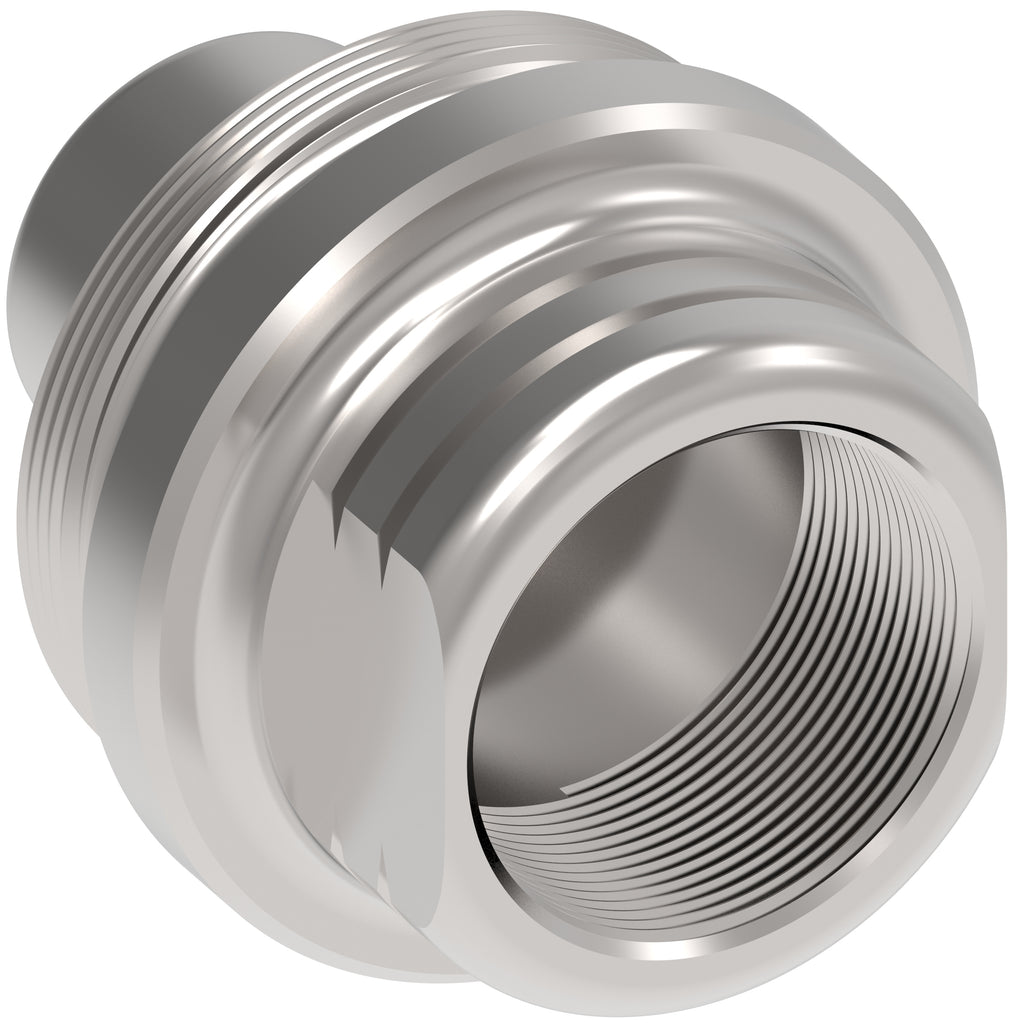

Danfoss Gromelle WV06074V0 – W6000 Kupplungsstecker
COUPLING,W6000,M,1"1/2,SS,-24BSP,FKM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WV06074V0
€1.146,03
Technische Daten
| Legacy part number | WV06074V0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Male half |
| Valve type | 2 way |
| Product material | 1.4418 Stainless steel |
| Thread size 1 | G 1 1/2 |
| Angle shape | Straight |
| Body size | 1 1/2" |
| End size 1 | -24 |
| End type 1 | Female BSPP port washer seal. |
| Hex size 1 IN | 2.48 |
| Latch type | Screw to connect |
| Safety locking mechanism | None |
| Seal material | Fluorocarbon (FKM) |
| Working pressure max psi | 4350 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Product height in | 2.64 |
| Product width in | 2.64 |
| Product width mm | 67.056 |
| Product height mm | 67.056 |
| Product length mm | 108.966 |
| Product length in | 4.29 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
