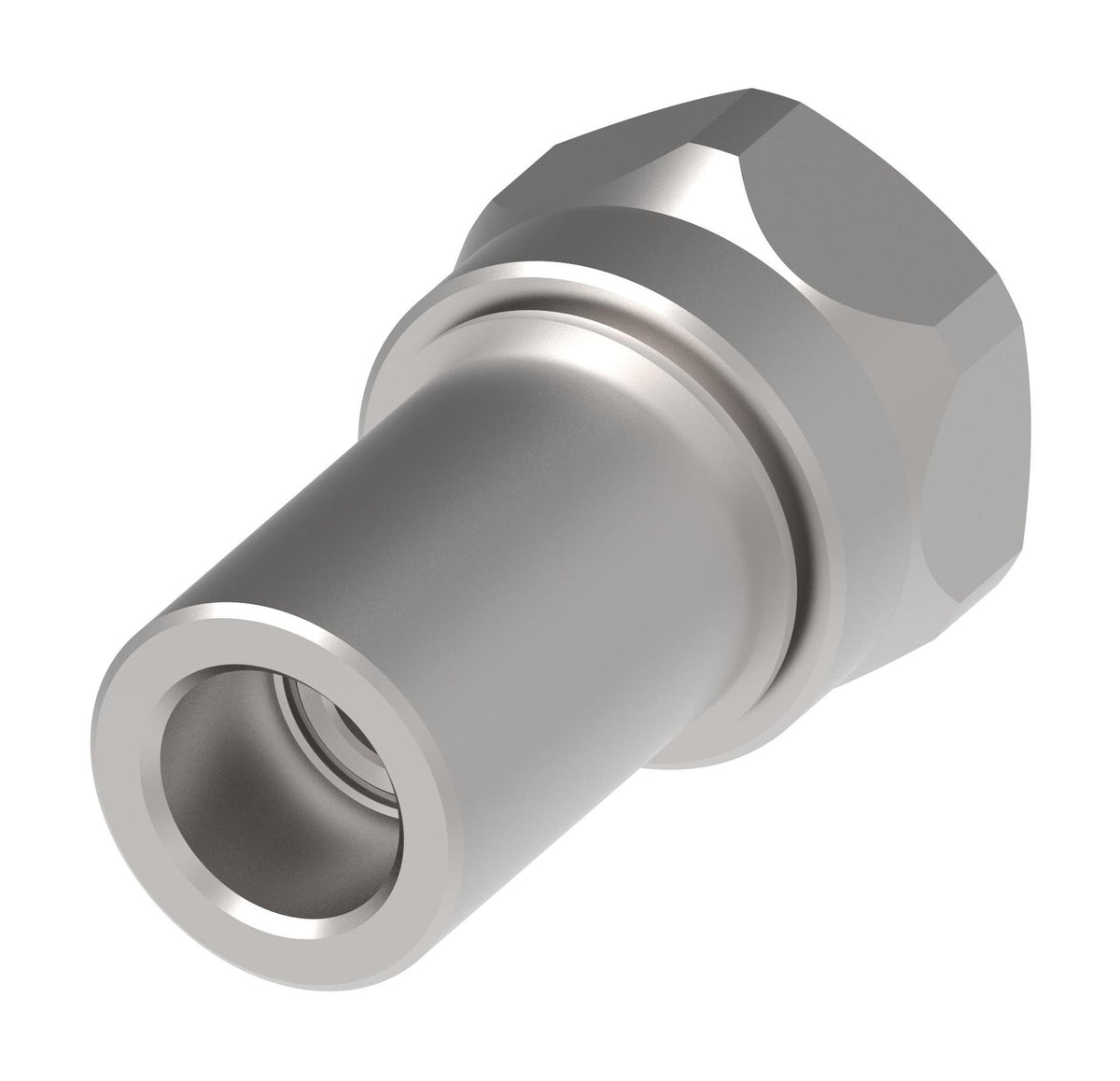

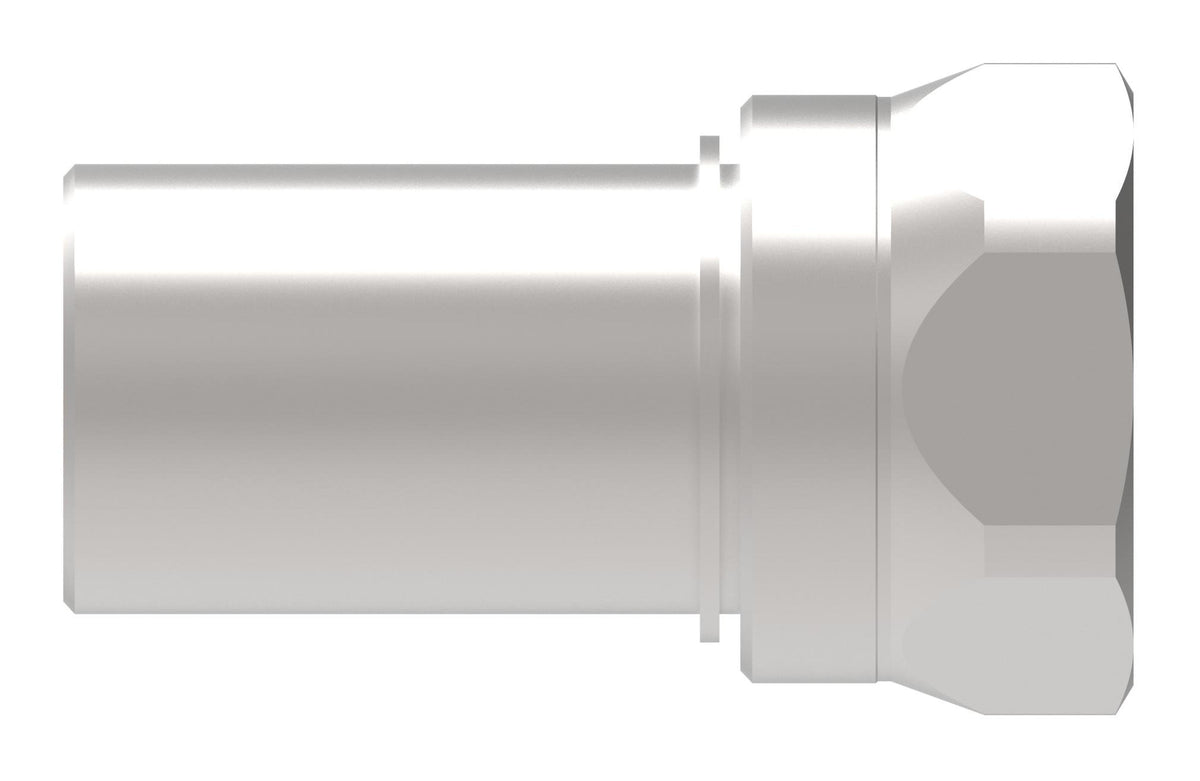

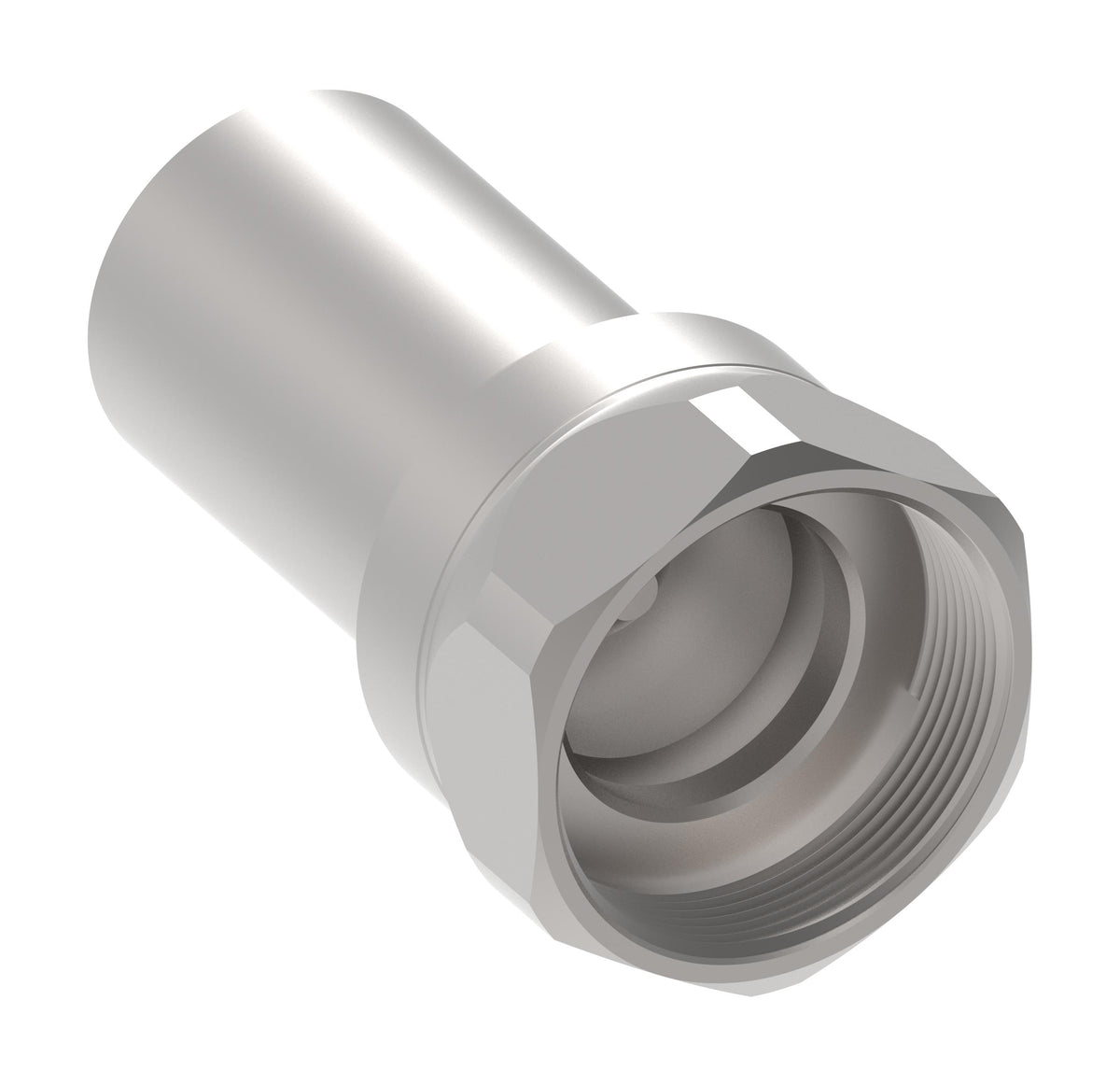

Danfoss Gromelle WV06097V0 – W6000 Kupplungsmuffe
€2.412,37
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WV06097V0 – W6000 Kupplungsmuffe
COUPLING,W6000,F,2",SS,-32BSP,FKM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WV06097V0
€2.870,72
Technische Daten
| Legacy part number | WV06097V0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Valve type | 2 way |
| Product material | 1.4418 Stainless steel |
| Thread size 1 | G 2 |
| Angle shape | Straight |
| Body size | 2" |
| End size 1 | -32 |
| End type 1 | Female BSPP port washer seal. |
| Hex size 1 IN | 4.13 |
| Safety locking mechanism | None |
| Seal material | Fluorocarbon (FKM) |
| Working pressure max psi | 4350 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Fluid compatibility | Hydraulic fluid |
| Product height in | 4.6 |
| Product width in | 4.6 |
| Product width mm | 116.84 |
| Product height mm | 116.84 |
| Product length mm | 204.978 |
| Product length in | 8.07 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
