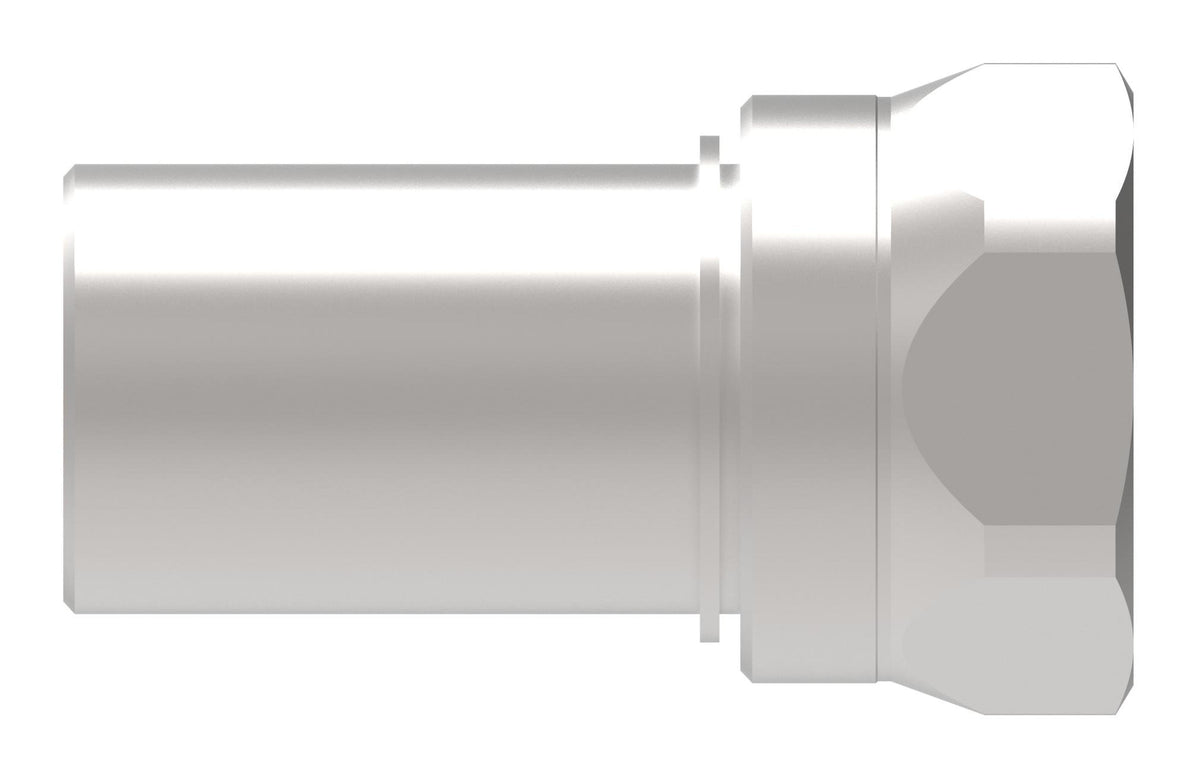

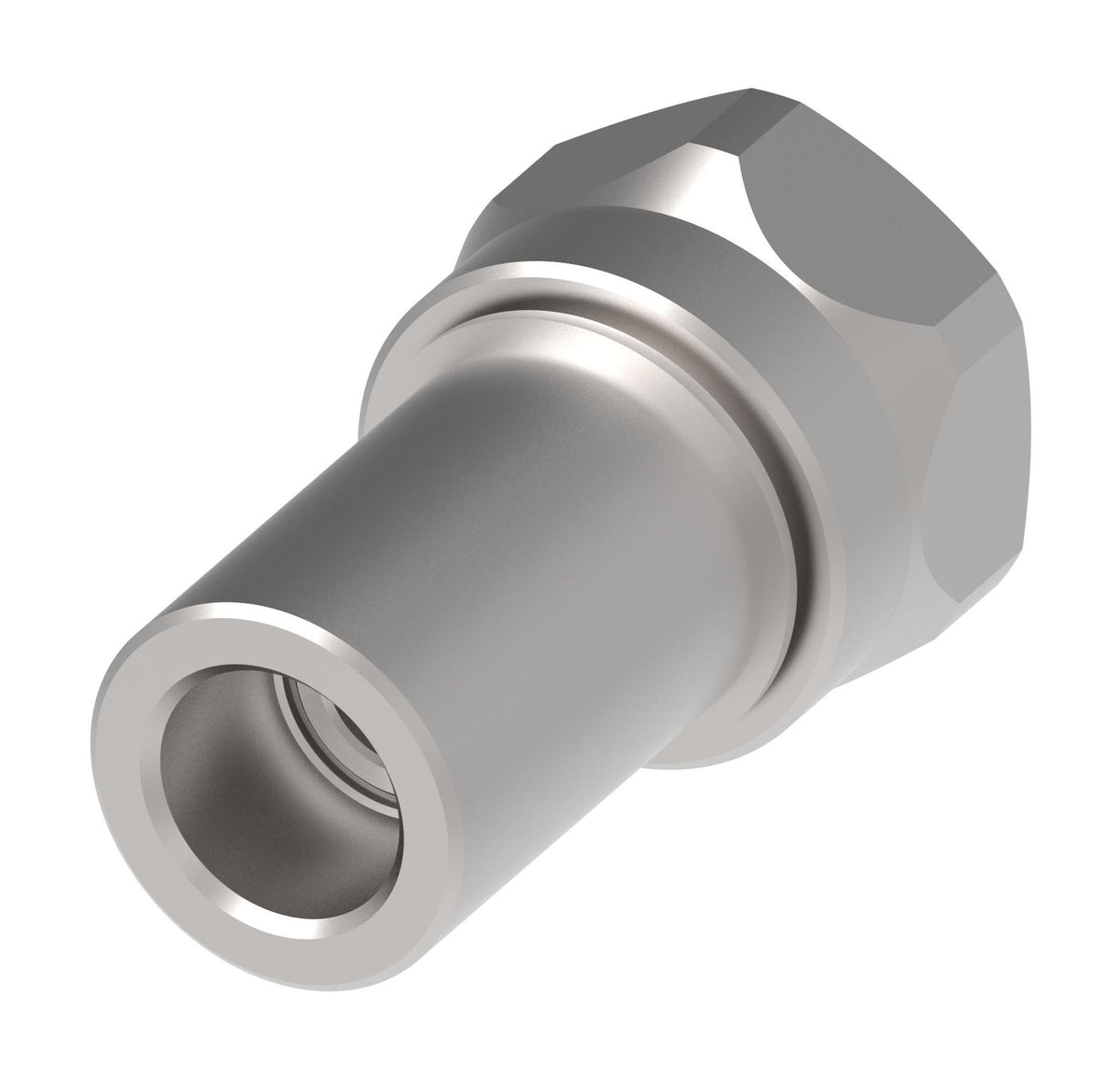

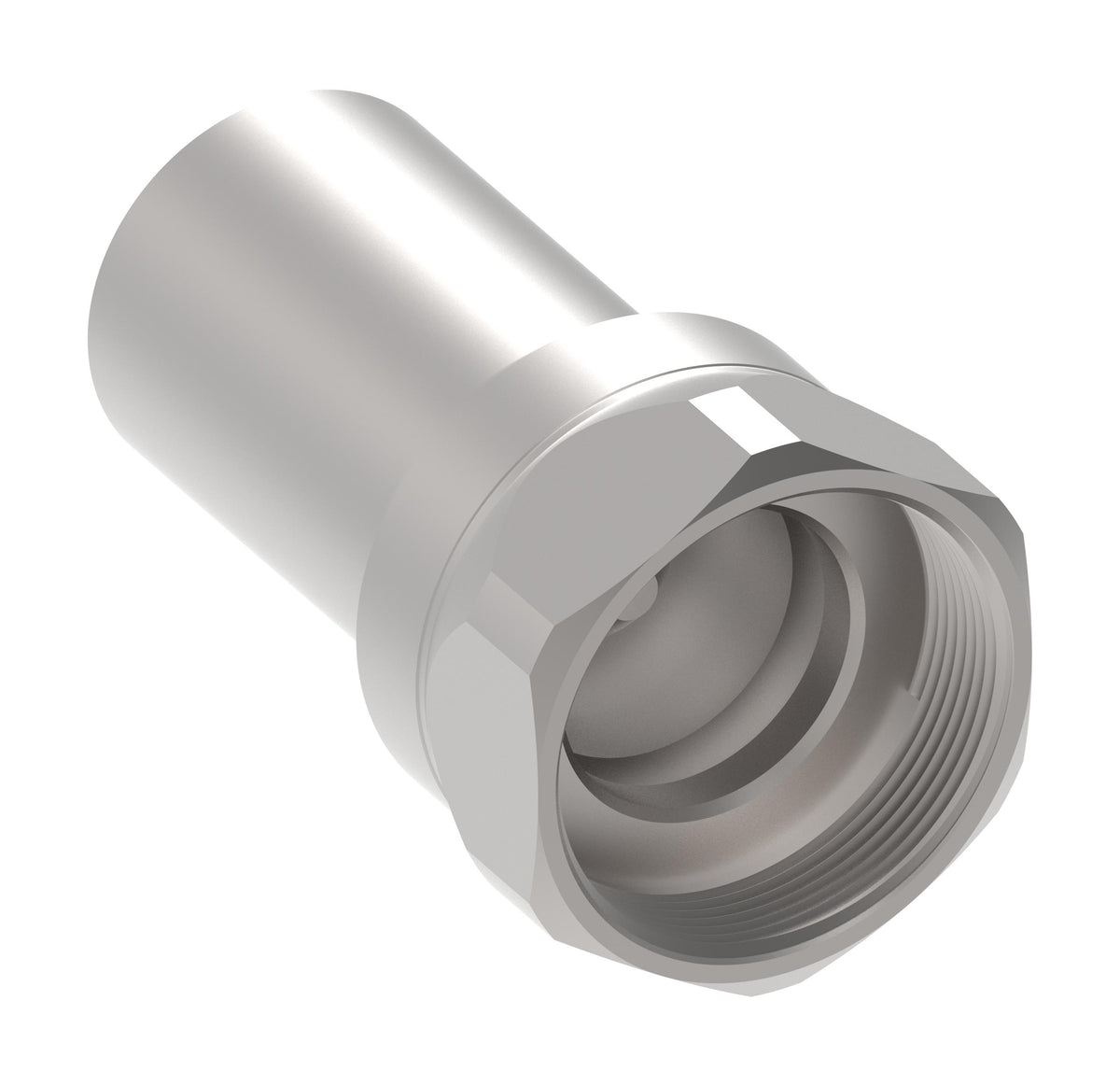

Danfoss Gromelle WV06217V0 – W6000 Kupplungsmuffe
€208,24
Zu Produktinformationen springen
Auf Lager
Danfoss Gromelle WV06217V0 – W6000 Kupplungsmuffe
COUPLING,W6000,F,1/4,SS,-4NPT,FKM
Lieferzeit: ca. 2 Wochen
Danfoss Artikelnummer: WV06217V0
€247,81
Technische Daten
| Legacy part number | WV06217V0 |
| Sub brand | Gromelle |
| Brand | Danfoss |
| Item type | Female half |
| Valve type | 2 way |
| Product material | 1.4418 Stainless steel |
| Thread size 1 | 1/4-18 NPTF |
| Angle shape | Straight |
| Body size | 1/4 |
| End size 1 | -4 |
| End type 1 | Female Pipe (NPT) |
| Hex size 1 IN | 1.26 |
| Safety locking mechanism | None |
| Seal material | Fluorocarbon (FKM) |
| Working pressure max psi | 15950 |
| Working temperature max F | 392 |
| Working temperature min F | -4 |
| Product height in | 1.38 |
| Product width in | 1.38 |
| Product width mm | 35.052 |
| Product height mm | 35.052 |
| Product length mm | 53.086 |
| Product length in | 2.09 |
Weitere Produktdaten
- Herkunftsland: France
- Zolltarifnummer: 84818081
- Danfoss Produktseite: Produkt bei Danfoss
