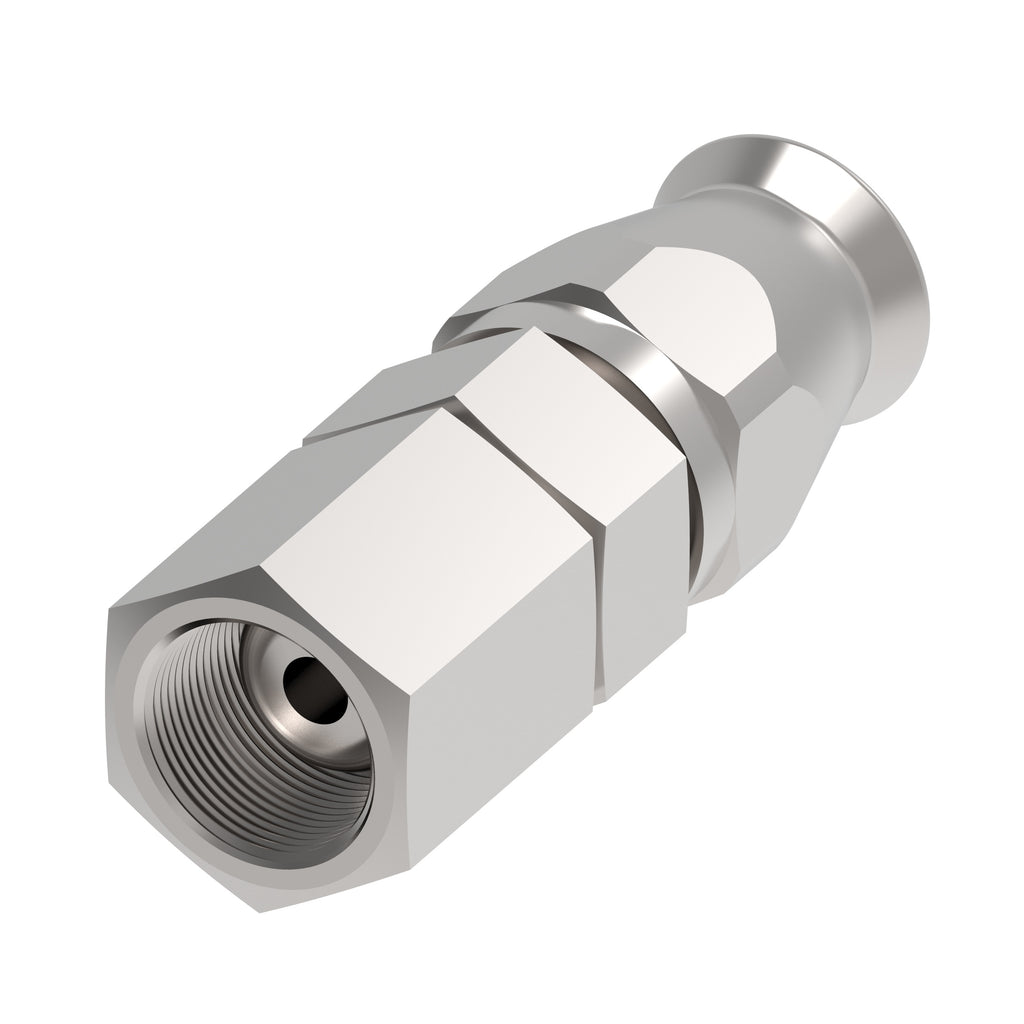

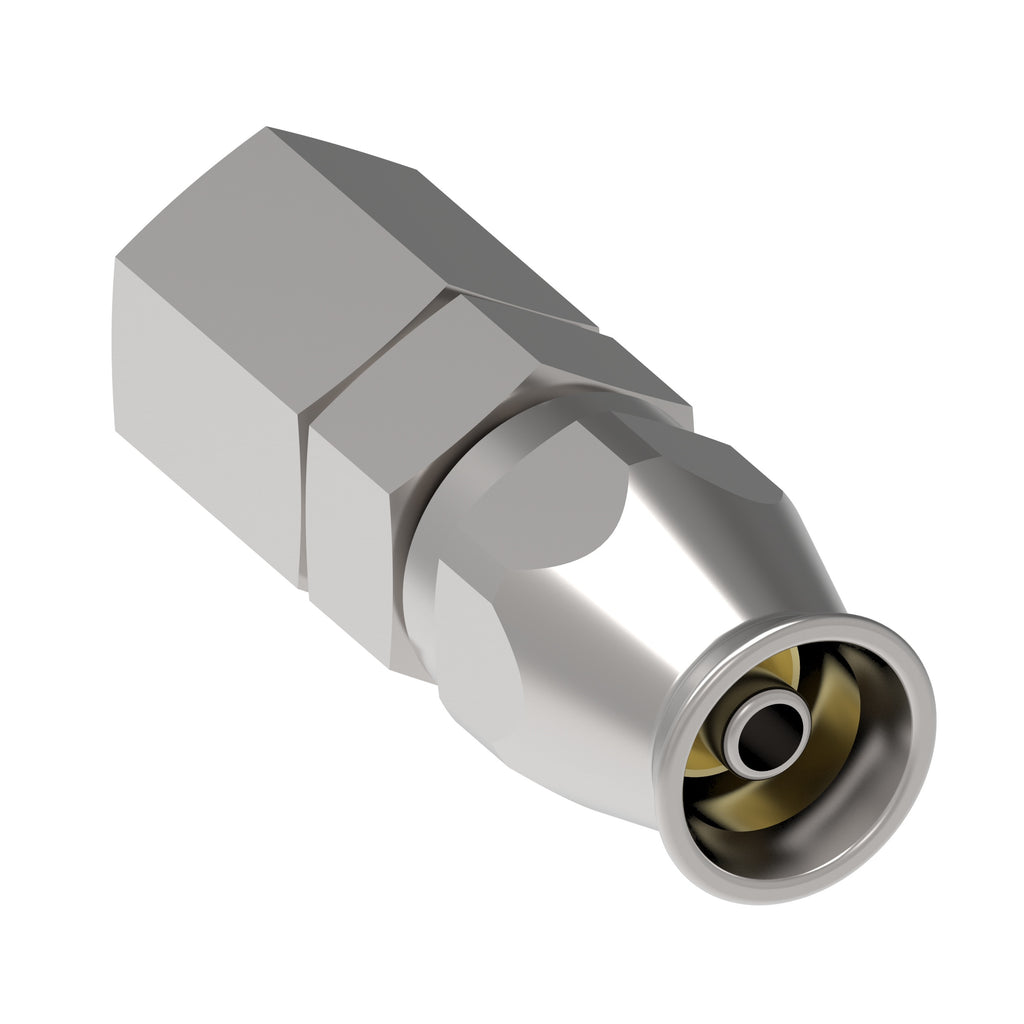

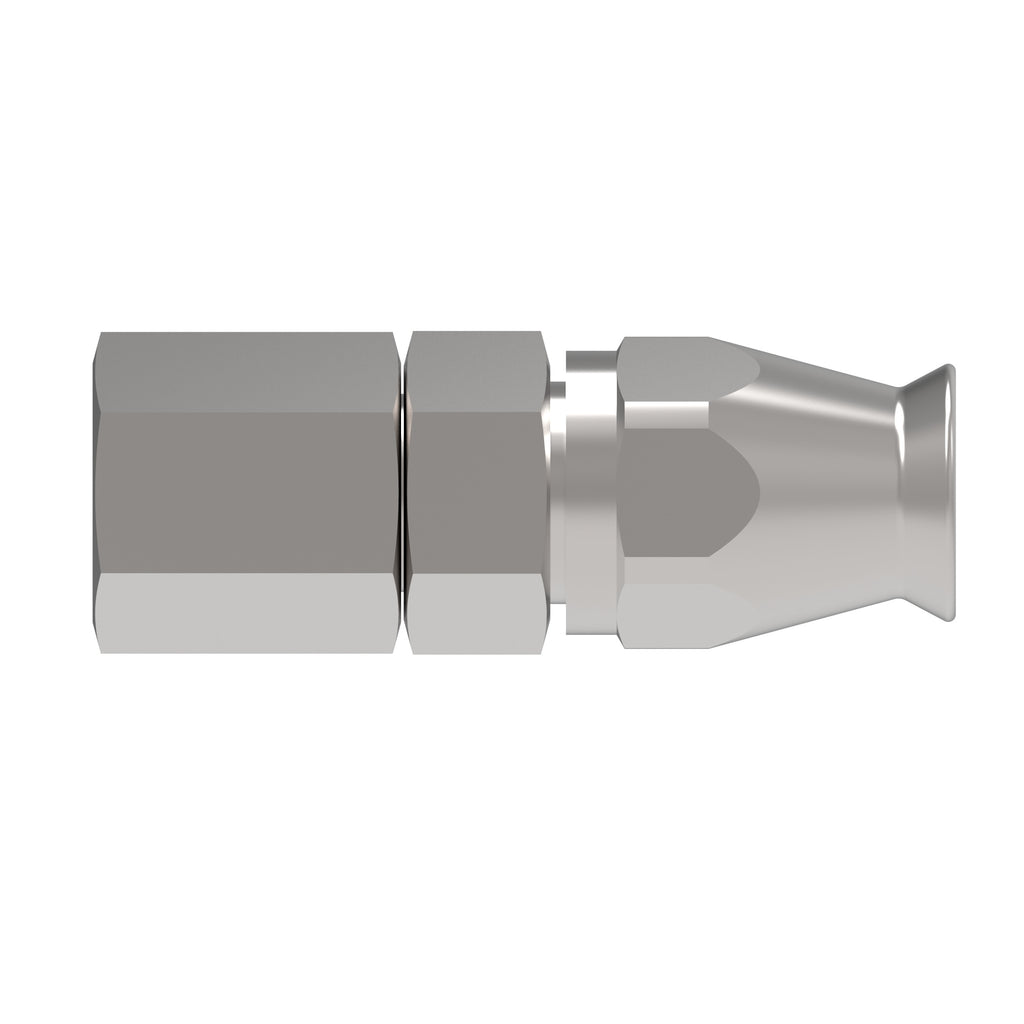

Danfoss Everflex 07.046-22-16 – PTFE-Schlaucharmatur

Name: Danfoss Everflex 07.046-22-16 – PTFE-Schlaucharmatur
Brand: Danfoss
SKU: 07.046-22-16
Price: 27.34 EUR
Availability: InStock

HOSE FTG, GR/16, AK/22, CS, STR

Lieferzeit: ca. 2 Wochen

Danfoss Artikelnummer: 07.046-22-16

€32,53

Auf Lager

Voraussichtliche Lieferung 19.12.2026

Technische Daten

Series	Teflon Reusable
Legacy part number	07.046-22-16
Sub brand	Everflex
Brand	Danfoss
Inside diameter IN	0.827
Inside diameter MM	21
Product material	Carbon steel
Hose size	-16
Thread size 1	M30x2
Angle shape	Straight
End type 1	Female globeseal 24/60 swivel
Hex size 1 IN	1.42
Hex size 2 IN	1.42
Hex size 1 MM	36.068
Hex size 2 MM	34.925
Finish plating	Protective oil
Construction Style	Reusable
A dimension IN	2.5
Compatible hose ID MM	25.4
Compatible hoses	2807
Compatible hose ID IN	1
A dimension MM	54
Hose cut off factor IN	2.016
Hose cut off factor MM	41.7
Product height in	1.64
Product width in	1.42
Product width mm	36.068
Product height mm	41.656
Product length mm	55.118
Product length in	2.17
End connection hex size in	1.42
End connection hex size mm	36.068
Backup hex size in	1.42
Backup hex size mm	34.925
